TNP151

TILT ‘N PLUG JR. TABLETOP INTERCONNECT BOX

  • Single user connection point
  • Gas-spring for smooth operation
  • Ultra-flat surface when closed
  • 6′ AV and Data Cables, 9-10′ Power Cable
  • Customizable connectors and finish

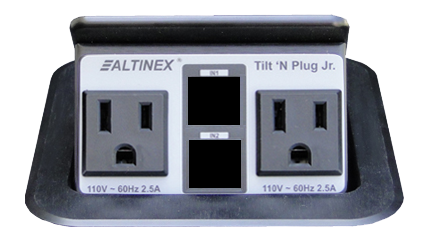

  • Customizable as TNP150C
  • 12 Amp socket
  • UL listed
  • UL listed for installation in kitchens, bathrooms and countertops (US only)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: TNP151 Category:

  TNP151 Overview

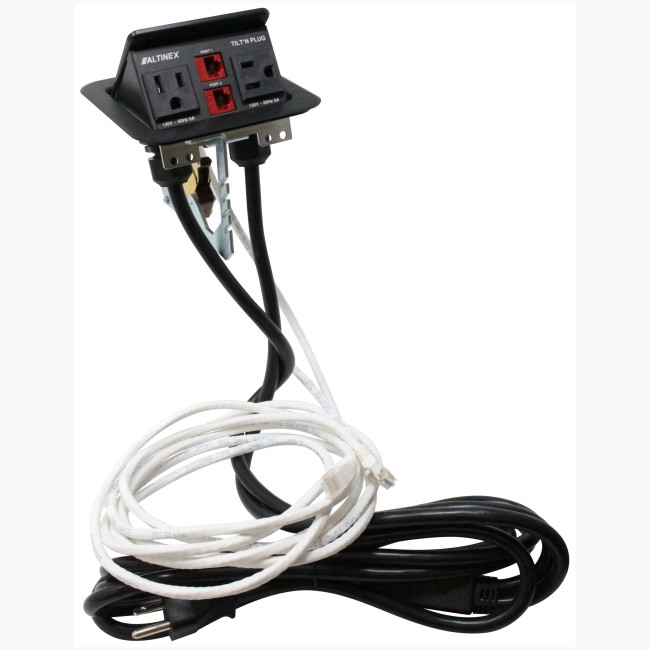

The Tilt ‘N Plug Jr. model TNP151 is one member of compact interconnect solutions designed for installation into a table in a presentation system. The TNP151 provides access to computer network and AC power connections when needed, and hides them when not.

  Summary

The Tilt ‘N Plug Jr. model TNP151 is one member of compact interconnect solutions designed for installation into a table in a presentation system. The TNP151 provides access to computer network and AC power connections when needed, and hides them when not.

The input plate on the TNP151 is accessed by pushing down on the top panel, which tilts into view with help from a pneumatic spring inside. Once opened, the input plate remains securely in place. The input plate is hidden by pressing down on the top panel, which closes the lid. In its closed position, the top panel lies flush with the table top, held in place by a mechanical latching mechanism.

The TNP151 provides a single input plate with two (2) Network (RJ-45 F-M) input connections in 6 ft (2m) length and two (2) AC Power connection in 9-10 ft (2.7-3.0m) suitable for use throughout the U.S. and Canada. The unit can also be customized with different connections and colors. To do so, please refer to the TNP150C.

All Tilt ‘N Plug Jr. Signal Management Solutions come with a standard top and bezel offering a high quality matte black finish. Other finishes or special bezel configurations are available upon request.

The network signals are passed through the unit with connection to the network system being made under the table. No signal processing or buffering takes place.

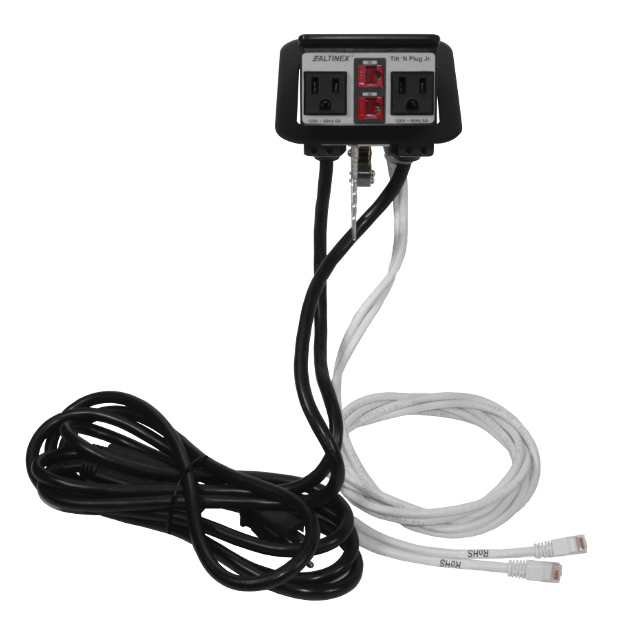

TNP151 Cables
ALTINEX products are protected by the following patents:
6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819

  Videos

  Technical Specifications

GENERAL

ELECTRICAL

AC Power: NEMA 5-15 (2 female to 1 male)Dual Outlet Panel Power Rating (pass-through AC power): 110VAC, 60Hz,12A
Network: (2) CAT-6 (RJ-45) F-M
UL Listed: File E254082

MECHANICAL

ACCESSORIES

AC Power Cord: 10ft (3m)Included: Mounting screws, cable clamps
Audio, Video, and Communication: 6ft (2m) Replacement Gas Spring: AC401-302
Max Table Thickness: 2.25in (57mm)
Height, opened: 5.5in (140mm)
Width: 4.6in (117mm)
Depth: 4.9in (124mm)
Weight (approx.): 2.8lb (1.3kg)
Shipping Weight: 4.5lb (2.0kg)

Finish: Matte Black (default)

T° Operating: 10°C-35°C
T° Maximum: 40°C
Humidity: 90% non-condensing

WARRANTY

CERTIFICATIONS

3 year warranty UL, CUL, CE, RoHS, FCC
1 year warranty on gas-spring

  Application Diagram

  Dimensions
