CNK705

CABLE-NOOK® FOR USE WITH CISCO TELEPRESENCE TABLE MICROPHONE 20 (BLACK)

  • Compact enclosure installs into tabletop

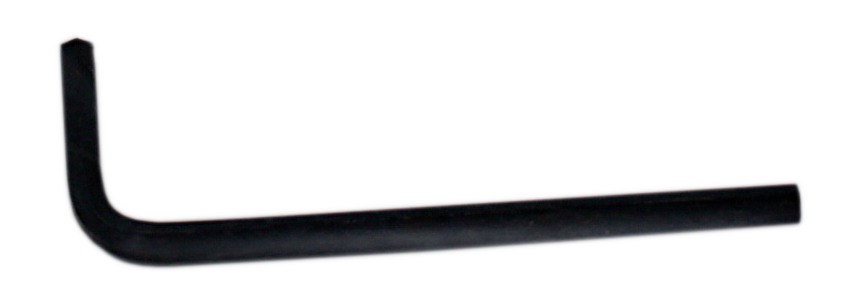

  • (1) Hex L-key included
  • Black brushed aluminum finish
  • Simple, cost-effective interconnect solution
  • Downloadable cutout template available
  • Ten year warranty
SKU: CNK705 Categories: , ,

  CNK705 Overview

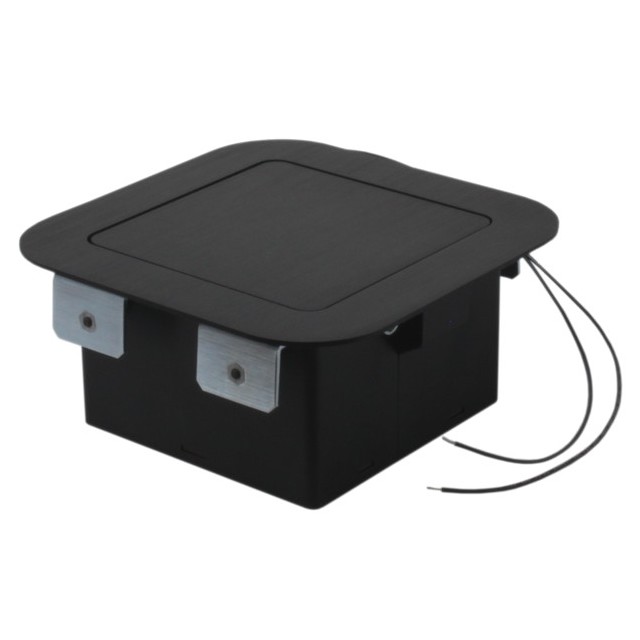

The CNK705 is a compact Cable Nook box that is specially designed for use with the Cisco® Telepresence Table Microphone 20. It is installed into a conference room or boardroom table and provides a simple yet effective way of hiding/storing the microphone when not in use.

  Summary

The CNK705 is specially designed for installation of the Cisco® Telepresence Table Microphone 20. The microphone is installed under the CNK705 unit cover and it is switched on and off via a built-in switch. When switched on, the cover rotates 180 degrees for the microphone to face up and ready for use. When switched off, the cover rotates again and faces the microphone down to hide it.

The CNK705 offers convenient mounting that can be done from the top of the table using the hex L-key provided.

The CNK705 comes with a standard mounting bezel and installed into a table cutout.

  Technical Specifications

Table 1: CNK705 General

Features/Description

CNK705

Magnetic Proximity Sensor (Reed switch)SPST-NC form B with leads 24 AWG x 305 mm (12”)

Accessories Included

Hardware- Mounting Screws (4 pcs; pre-installed on unit),
- Mounting Brackets (4 pcs; pre-installed on unit)
- Arm Hex L-Key

Table 2: CNK705 Mechanical

Mechanical

CNK705

Minimum Table Thickness0.75 in (57 mm)
Height2.59 in (66 mm)
Width5.48 in (139 mm)
Depth5.48 in (139 mm)
Weight (approx.)0.75 lb. (0.34 kg)
Shipping Weight1.43 lb. (0.65 kg)
FinishMatte Black
T° Operating (T° Max)10°C-35°C (40°C)
Humidity90% non-condensing

Table 3: CNK705 Electrical

Electrical

CNK705

Magnetic Proximity Sensor (Reed switch)

Max Power Rating3 W
Max Switching Voltage30 VAC/VDC
Max Switching Current0.2 A

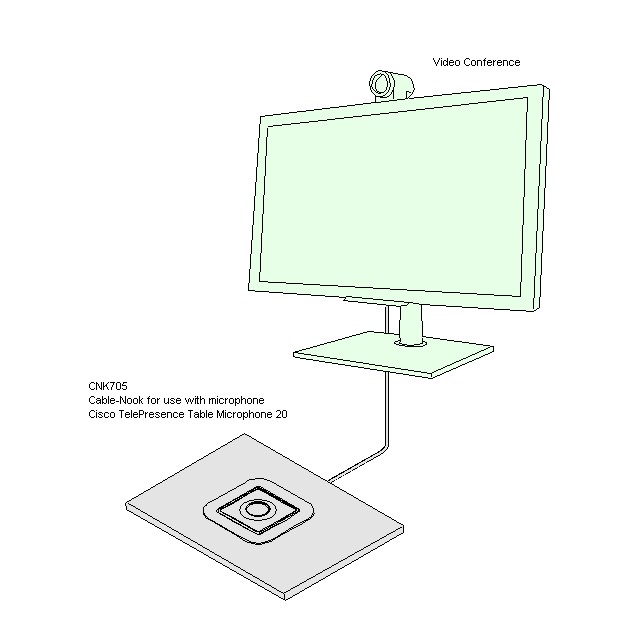

  Application Diagram

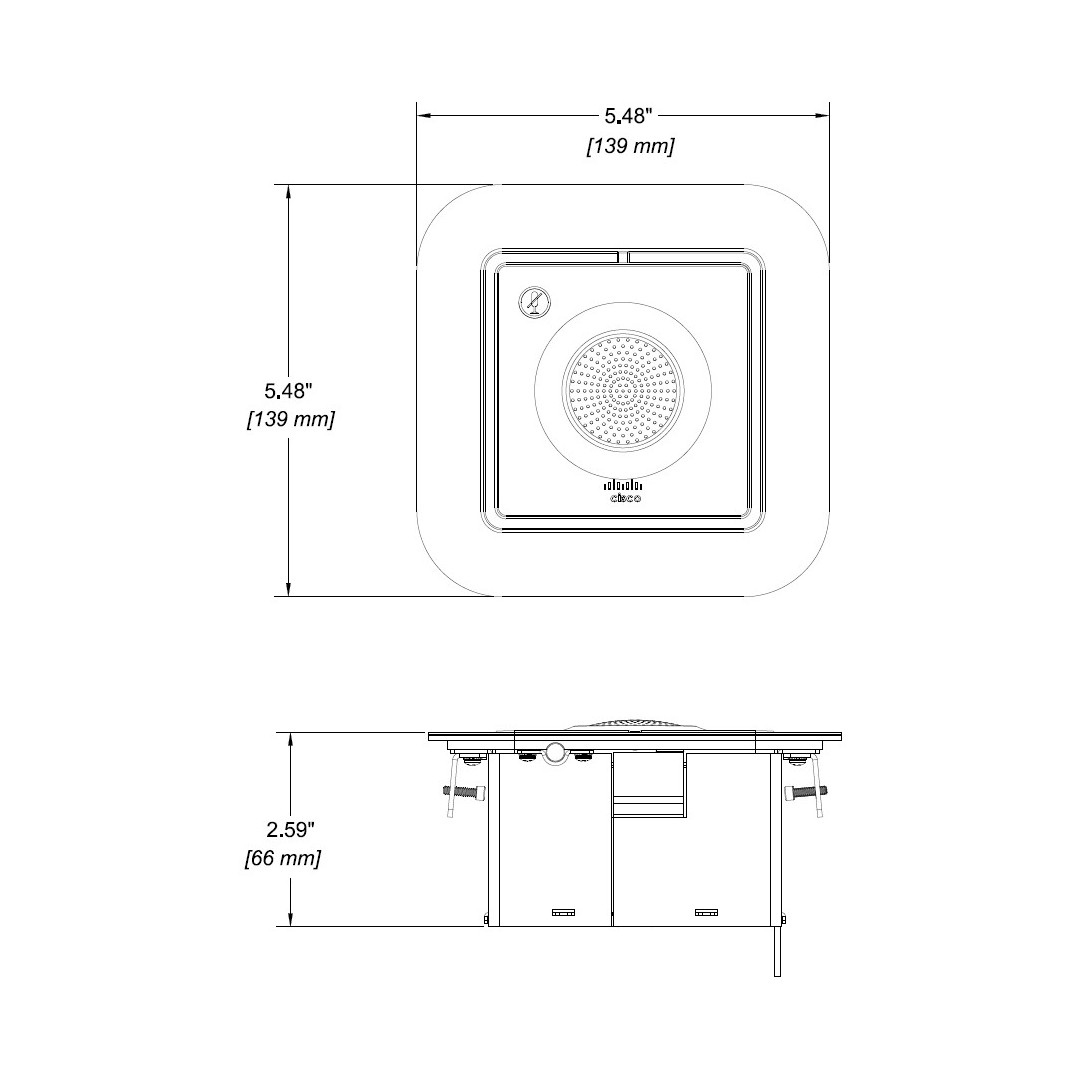

  Dimensions

  Documents
