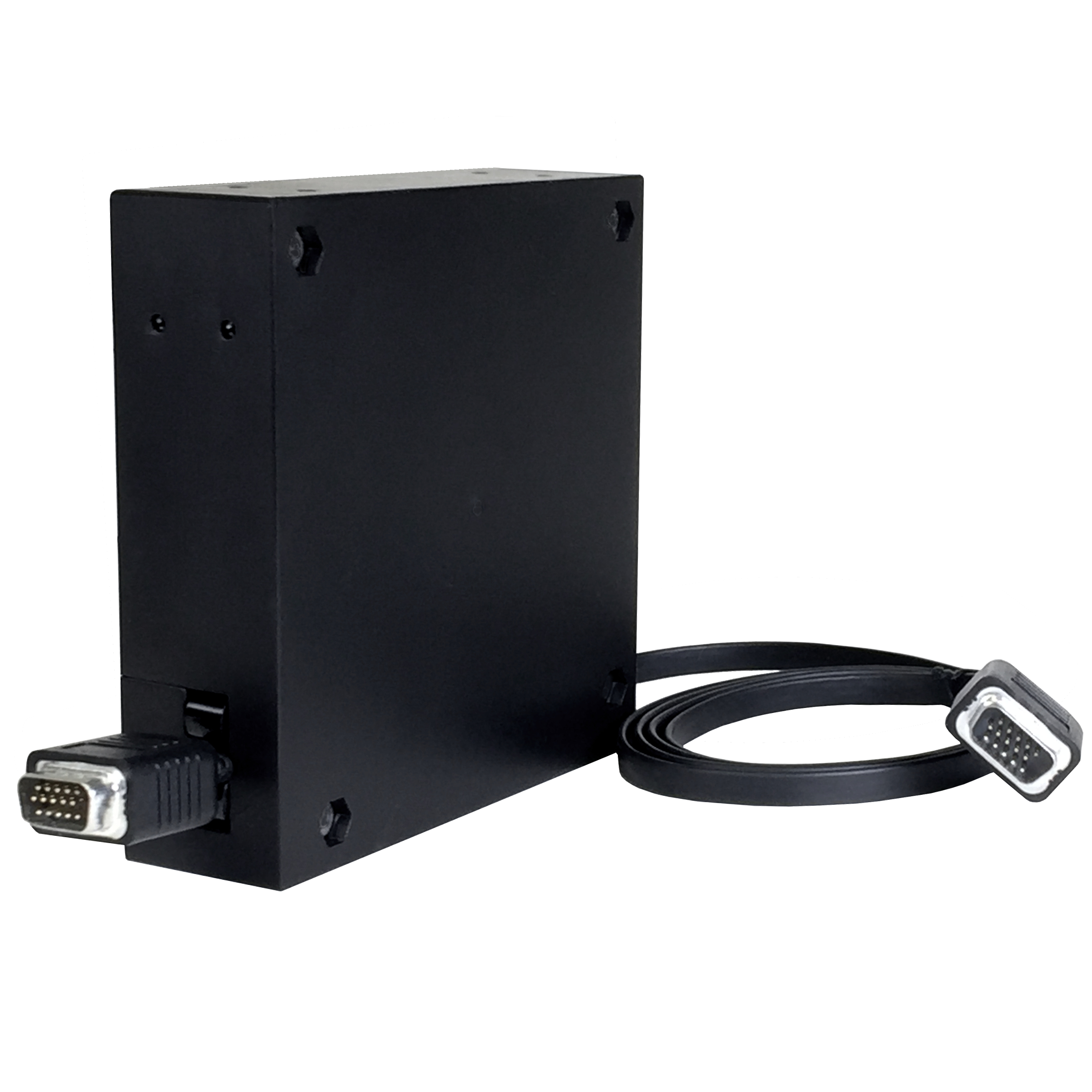

RT300-121

VGA (M-M) RETRACTABLE CABLE

  • Convenient, easy to install cable retraction system for CNK200 and CNK221 interconnect box and stand alone
  • Simple operation for AV connectivity
  • VGA compliant coaxial cable
  • CNK200 supports four (4) MINI-ME RT300-121 units
  • CNK221 supports two (2) MINI-ME RT300-121 units
  • Tested to 10,000 retracts
  • Mounting hardware included
  • One (1) year warranty
SKU: RT300-121 Categories: ,

  RT300-121 Overview

The RT300-121 offers an easy to use, VGA cable management solution for under-table installations. The VGA cable assembly delivers the high definition video signal using a self-contained retractable assembly. The RT300-121 offers 4 feet of retractable cable and 4 feet fixed cable.

  Summary

The RT300-121 offers a solution for managing VGA cables. The cable assembly was designed to deliver high definition video and audio to a switcher or a display. The RT300-121 has 4.0 ft of retractable cable and 4 ft of fixed length cable. The cable and the retractor have been tested to over 10,000 extensions/retractions. The mounting hardware for securely mounting the cable retractor to the surface is provided with the RT300-121



  Videos

  Technical Specifications

FEATURES/DESCRIPTION

RT300-121

Inputs

Video/AudioVGA format

Outputs

Video/AudioVGA format

Compatibility

Tabletop enclosuresCNK200 & CNK221
Standalone mounting

Mounting holes with
4x40 threads are
provided

Additional Accessories

Mounting Hardware Included

- Mounting bracket
- Mounting screws
(2 pcs)

MECHANICAL

RT300-121

Dimensions

Height4.8 in (122 mm)
Width4.8 in. (122 mm)
Depth1.4 in. (37 mm)

Other

Normal Pull force0.3 lb. (+/- 0.1)
End of cable pull force

Max 10 lb. (+2 lb.)
(Damage may occur if
customer forces retract past
the end of cable.)
Weight0.78 lbs. (0.353 kg.)
ColorBlack
MaterialPlastic
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (tested)10,000 retractions

ELECTRICAL

RT300-121

Cable Gauge32 AWG
Voltage Rating for Cable30V
Powernone
Amplifiernone
