TBL108

TABLE BUDDY. HYBRID. HDMI, VGA, AUDIO, RJ45, US POWER.

  • Connects to edge of table/desk
  • Integrated cable tie-wrap bar
  • Dual clamp used for fixed or temporary installations
  • Offers user–configurable input plates under the TBL102C
  • Perfect for furniture applications
  • NOT AVAILABLE FOR SALE IN CANADA
  • As seen in the Altinex Table Top Interconnect Guide
  • Ten year warranty
SKU: TBL108 Category:

  TBL108 Overview

Designed for both temporary and permanent attachment to a table in a presentation system, the TBL108 Table Buddy Interconnect Box provides a convenient way for a user to access multi-media input connections.

  Summary

The TBL108 is a package of parts that covers the basic needs of many Table Buddy users. When ordered, this unit ships as a completely assembled product made up of one TBL100 and one sectional plate. It allows for orderly cable management, passing signals from the back of the input plate around the edge of a table and down underneath it.

When used with its integrated hand-tightened clamps, the TBL108 Table Buddy attaches quickly and non-destructively to the edge of a presentation table or desk up to 1.5in (38mm) thick, providing a convenient and functional tabletop input plate for practically any connection need. For permanent installation, the clamp can be removed and the Table Buddy can be permanently attached to the tabletop using wood screws.

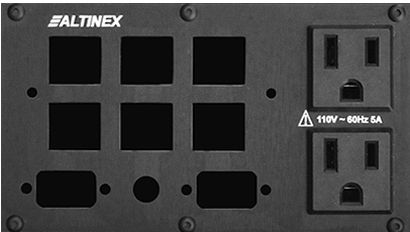

The TBL108 ships complete with two (2) standard U.S. power receptacles, computer video (15-pin HD) audio (3.5mm), standard HDMI, two (2) network (RJ45), and two (2) USB (Type A) input connectors. All audiovisual connectors have 6ft (2m) cables that feed through to the bottom of the unit.

  Technical Specifications

Features/Description

TBL

TBL100

Pass Through

Number of slots6

Compatibility

AC Power
(United States)
SP2102US
AC Power
(International)
SP2201UK, SP2301CE
Audio, Video,
and Control
SP3201AV, SP3210AV,
SP1100SC, and SP3502SC
Blank Slot CoversSP1001BL and SP1002BL
CustomizableSP3102EP

TBL108

Audio, Video, Communication6 ft. (2 m)
Computer Video15-pin HD F-M
Computer Audio3.5mm F-M
HDMIHDMI F-M
NetworkCAT-6 (RJ-45) F-M (2)
USBType A F-M (2)
Pass-through AC Power9-10 ft. (2.7-3.0 m)
110 VAC, 60 Hz, 5 ANEMA F-M

TBL100/TBL108

Accessories Included

HardwareTie Wraps (4)
Rivet Tool (1)

Mechanical

TBL100/TBL108

Max. Table Thickness1.5 in (38 mm)
Width5.3 in (135 mm)
Depth3.5 in (89 mm)
Height above table3.0 in (77 mm)
Overall Height7.6 (193 mm)
Weight (approx.)
TBL100
TBL108

0.6 lb. (0.3 kg)
3.2 lb. (1.5 kg)
Shipping Weight (approx.)
TBL100
TBL108

1.4 lb. (0.6 kg)
4.6 lb. (2.1 kg)
Connector PanelBlack Anodized
T° Operating10°C-50°C
T° Maximum75°C
Humidity90% non-condensing
MTBF (calculations)38,000 hrs (min.)

Electrical
(Single outlet panel)

TBL100

Pass-Through SignalsAll standard audio, video, network,
and modern signals are acceptable
Power Rating
(pass-through AC power)
600 W maximum

  Application Diagram

  Dimensions
