TBL108C
CUSTOM TABLE BUDDY. HYBRID. HDMI, VGA, AUDIO, RJ45, US POWER.
- Connects to edge of table/desk
- Integrated cable tie-wrap bar
- Dual clamp used for fixed or temporary installations
- Offers user–configurable input plates under the TBL102C
- Perfect for furniture applications
- NOT AVAILABLE FOR SALE IN CANADA
- As seen in the Altinex Table Top Interconnect Guide
- Ten year warranty
TBL108C Overview
Designed for both temporary and permanent attachment to a table in a presentation system, the TBL108C customizable Table Buddy Interconnect Box provides a convenient way for a user to access multi-media input connections and is customizable to meet your A/V requirements.
Summary
The TBL108C is a package of parts that covers the basic needs of many Table Buddy users. When ordered, this unit ships as a completely assembled product made up of one TBL100 and one (1) sectional plate, installed with connectors of your preference. It allows for orderly cable management, passing signals from the back of the input plate around the edge of a table and down underneath it.
When used with its integrated hand-tightened clamps, the TBL108 Table Buddy attaches quickly and non-destructively to the edge of a presentation table or desk up to 1.5in (38mm) thick, providing a convenient and functional tabletop input plate for practically any connection need. For permanent installation, the clamp can be removed, and the Table Buddy can be permanently attached to the tabletop using wood screws.
The TBL108 ships complete with two (2) standard U.S. power receptacles, two (2) D-Sub, one (1) 3.5 mm audio, and six (6) snap-in connectors. All audiovisual connectors have 6ft (2m) cables that feed through to the bottom of the unit.
Technical Specifications
TBL100/TBL108 | |
Accessories Included |
|
| Hardware | Tie Wraps (4) Rivet Tool (1) |
|
Mechanical |
TBL100/TBL108 |
| Max. Table Thickness | 1.5 in (38 mm) |
| Width | 5.3 in (135 mm) |
| Depth | 3.5 in (89 mm) |
| Height above table | 3.0 in (77 mm) |
| Overall Height | 7.6 (193 mm) |
| Weight (approx.) TBL100 TBL108 | 0.6 lb. (0.3 kg) 3.2 lb. (1.5 kg) |
| Shipping Weight (approx.) TBL100 TBL108 | 1.4 lb. (0.6 kg) 4.6 lb. (2.1 kg) |
| Connector Panel | Black Anodized |
| T° Operating | 10°C-50°C |
| T° Maximum | 75°C |
| Humidity | 90% non-condensing |
| MTBF (calculations) | 38,000 hrs (min.) |
|
Electrical |
TBL100 |
| Pass-Through Signals | All standard audio, video, network, and modern signals are acceptable |
| Power Rating (pass-through AC power) | 600 W maximum |

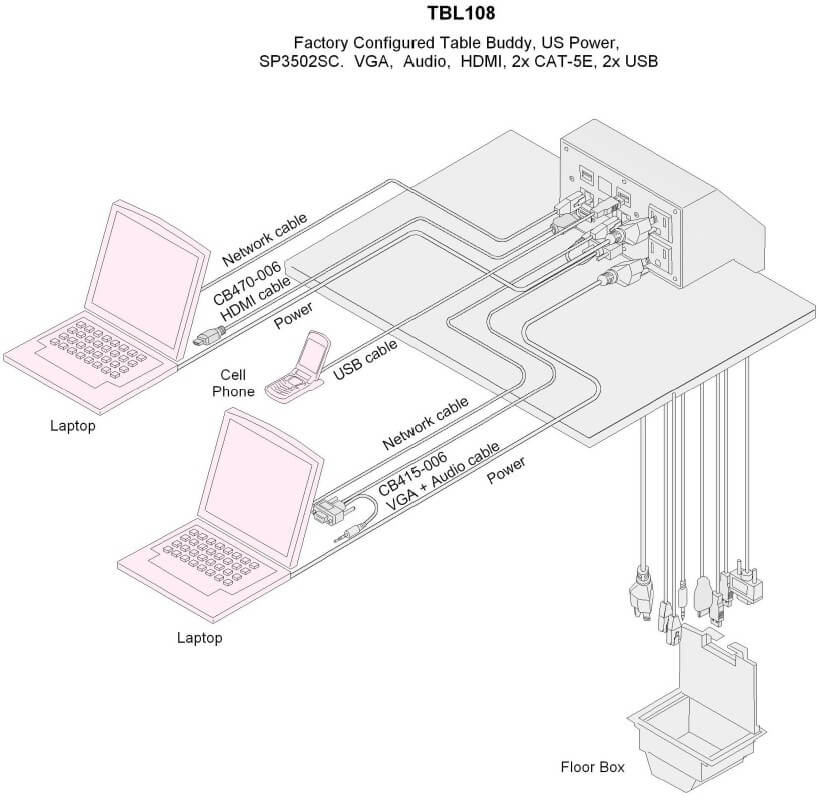

Application Diagram

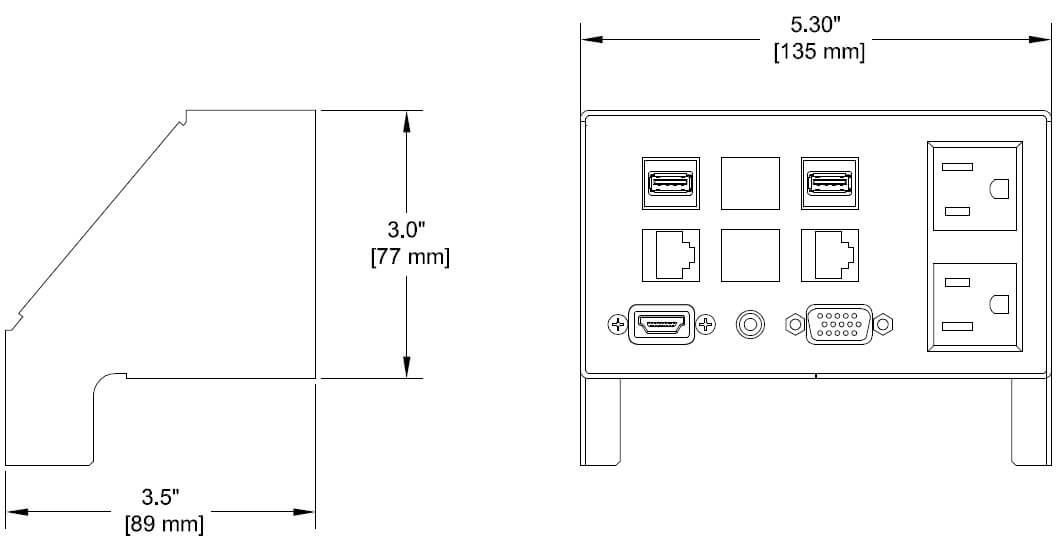

Dimensions
