TNP128S

TILT ‘N PLUG JR – HYBRID ANALOG & DIGITAL VIDEO INTERCONNECT BOX

  • Clear brushed aluminum finish
  • Single user connection point
  • Gas-spring for smooth operation
  • Ultra-flat surface when closed
  • 6′ AV and Data Cables, 9-10′ Power Cable
  • Customizable as TNP120C
  • 12 Amp socket
  • Many custom snap-in assemblies
  • UL listed
  • UL approved for wet locations (US only)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: TNP128S Category:

  TNP128S Overview

The TNP128S is a Tilt ‘N Plug Jr that supports analog (VGA) and digital (HDMI) connections on a single tabletop interconnect. Additionally, the TNP128S offers stereo audio for the VGA device, network, and a power connection all in an attractive compact form factor.

  Summary

All Tilt’ N Plug Jr. products belong to a family of compact interconnection solutions designed for installation into a table as part of a presentation system. They are designed for mounting into a table, podium, or other furniture to provide a way of connecting audiovisual equipment on top of the furniture to a presentation system below the furniture.

All use the same core element; a multimedia input plate that can be tilted open when needed and pushed closed when not needed.

All signals pass through the input plate directly to cables on the underside of the table with no intervening circuitry. The use of additional ALTINEX Signal Management Solutions such as computer video interfaces, distribution amplifiers, and switchers may be desirable.

The input plate of the Tilt ‘N Plug Jr. is accessible by pushing down on the top cover. The unit then auto-tilts open with help from an internal pneumatic spring. Once open, the input plate remains securely in place. The input plate is hidden by pressing down on the top cover until the latching mechanism engages. In its closed position, the top panel lies flush with the table’s top, held in place by the latching mechanism.

The TNP128S provides a single input plate with HDMI, VGA, Network (RJ-45 F-M), and Computer/MP3 audio (3.5 mm F-M) input connections in 6 ft (2m) lengths. It also provides an AC Power connection in 9-10 ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.

All Tilt’ N Plug Jr. Signal Management Solutions come with a standard top and bezel offering a high quality clear brushed aluminum finish. The unit can also be customized with different connections and colors. To do so, please refer to the TNP120C.



ALTINEX products are protected by the following patents:

6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819



  Videos

  Technical Specifications

GENERAL

ELECTRICAL

AC Power: (1) NEMA F-M, 110VAC, 60Hz, 5A, 9-10ft (2.7-3.0m)Single Outlet Panel Power Rating (pass-through AC power) : 110VAC, 60Hz, 12A per connector
Digital Audio & Video: (1) HDMI F-M, 6ft (2m)
VGA: (1) HD-15, F-M, 6ft (2m)
Network: (1) CAT-6 RJ-45 F-M, 6ft (2m)
Stereo Audio: (1) 3.5mm F-M, 6ft (2m)
UL Listed: File E254082

MECHANICAL

ACCESSORIES

Max. Table thickness: 2.25in (57mm) Included
Height, opened: 5.50in (140mm)Mounting screws and brackets
Width: 4.60in (117mm)Cable clamps/screws
Depth: 4.90in (124mm)
Finish: Clear Brushed Aluminum
T° Operating: 10°C-35°C
T° Maximum: 40°C
Weight (approx.): 2.8lb (1.3kg)
Shipping Weight: 4.5lb (2.0kg)
Humidity: 90% non-condensing

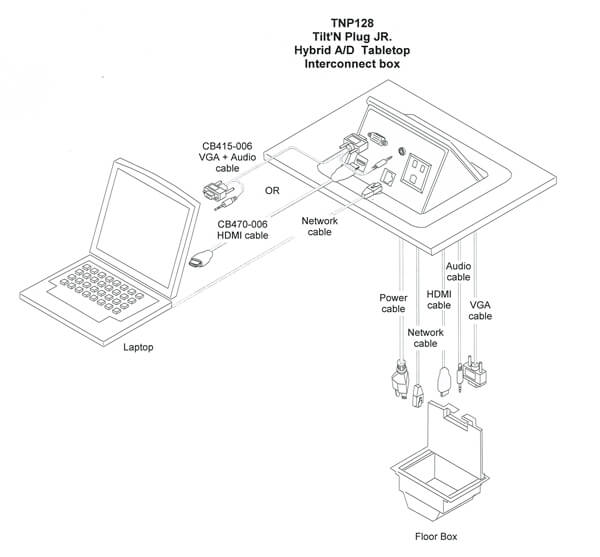

  Application Diagram

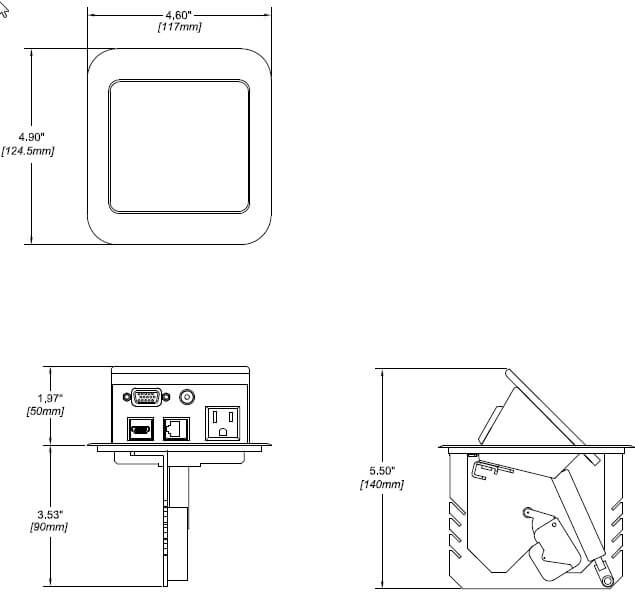

  Dimensions
