HDMI OVER ANYWIRE™ RECEIVER

  • HDMI over 2-conductor cable
  • Automatic input detection
  • HDMI resolutions 720p/1080p
  • Transmission up to 300 meters (depending on wire type)
  • IR pass-through control
  • HDCP compliant
  • Fixed EDID
SKU: TP315-102 Categories: ,

  TP315-102 Overview

The TP315-102 HDMI over Anywire receiver allows the receipt of 1080P HDMI signals up to 300 m using a simple 2-conductor cable. A single transmitter is capable of driving up to 4 receivers using either 4 individual wire pairs over 300 m each, or by daisy chaining the receivers. The only restriction being the wire pair from the transmitter to each receiver cannot be bundled together, as crosstalk will occur.

  Summary

The TP315-102 is an economical solution for many audiovisual installations. The 2-wire solution makes installation easy without the need to cut and splice wires and install expensive connectors or purchase costly cables. Simply route your wires, cut and trim the installation, and connect to the terminals. That’s it!

The unique design of the Anywire Receiver provides stable video over greater distances than other designs. IR pass-through for receiver side to transmitter side control is provided without corrupting the HDMI signal during transmission of IR signals.

Operation does not require any user control or interaction. Simply connect the Anywire input and, when the transmitter detects the receiver, the receiver begins video transmission to the display.

  Videos

Technical Specifications

Table 1: TP315-102 General

Features/Description

TP315-102

Input Connectors

Anywire VideoTerminal Post F (2)
IR Receiver3.5 mm Audio F (1)
AC PowerC7 M (1)

Output Connectors

Digital Video + AudioHDMI F, Type A (1)

Compatibility

Signal typesHDMI
Signal resolution720p, 1080i and 1080p

Accessories Included

HDMI Cablen/a
AC Power Cord,
NEMA 1-15P to IEC C7
n/a
IR Receivern/a

Table 2: TP315-102 Mechanical

Mechanical

TP315-102

MaterialAluminum
ColorBlack
Height1.05 in (27 mm)
Width6.73 in (171 mm)
Depth3.51 in (89 mm)
Weight1.0 lbs. (0.45 kg)
T° Operating10°C-45°C
Humidity90% non-condensing
MTBF (calc.)38,000 hrs.

Table 3: TP315-102 Electrical

Electrical

TP315-102

Video Input Signals

Digital Video + AudioAnywire

Video Output Signals

Digital Video + AudioHDMI Standard

Power

100~240 VAC7 W max.
100 VAC at 70 mA
240 VAC at 30 mA

  Application Diagram

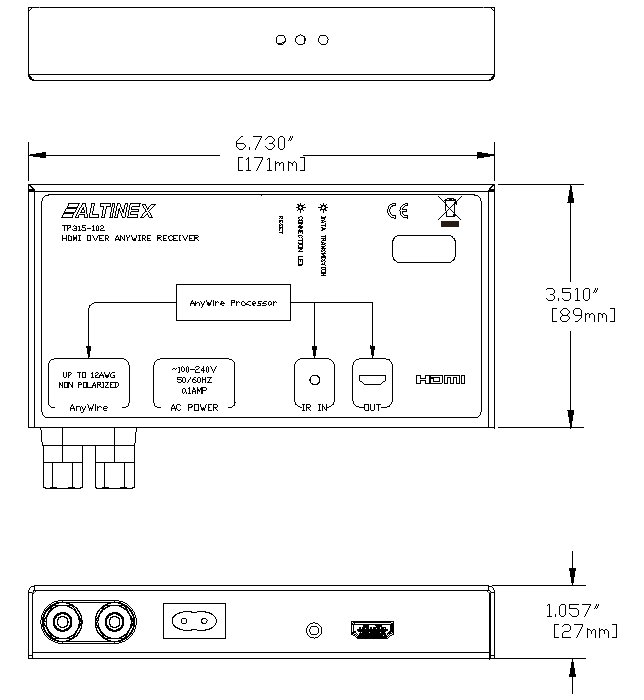

  Dimensions
