TP315-103

HDMI OVER POWER EXTENSION CABLE, ANYWIRE™ TRANSMITTER

  • HDMI over AC-extension cord
  • Automatic input/receiver detection
  • HDMI resolutions 720p, 1080i, and 1080p
  • Transmission up to 100 ft (30 m)
  • IR pass-through control
  • Local monitor output
  • Attached 9 ft. AC input cord

  TP315-103 Overview

The TP315-103 HDMI over AnyWire transmitter allows the transmission of 1080P HDMI signals up to 100 ft. (30 m) using a standard AC extension cord. A single transmitter may drive up to 4 receivers using either 4 individual extension cords from the transmitter, or by daisy chaining the receivers. The only restriction being the extension cords from the transmitter to each receiver cannot be bundled together as crosstalk occurs.

  Summary

The TP315-103 is a simple and economical solution for many audiovisual installations. The AC extension cord makes installation easy without the need to cut and splice wires and install expensive connectors or purchase costly cables. Simply route the extension cords, connect the AnyWire receiver AC cords to the extension cord, and then plug the TV into the receiver. That’s it!

The unique design of the AnyWire Transmitter provides stable video transmission over greater distances than other designs. IR pass-through for receiver side to transmitter side control is provided without corrupting the HDMI signal during transmission of IR signals.

Operation does not require any user control or interaction. Simply connect the HDMI input and the transmitter scans for the receiver and when detected automatically pairs to the receiver and begins video transmission.

A local video output is provided to support a local monitor. The local monitor allows the user on the transmitter side to know what is being presented on the far side of the installation. One of the AC receptacles on the transmitter can be used to power the local monitor if only 3 receivers are being used or if the receivers are daisy-chained at the far end.

  Technical Specifications

Table 1: TP315-103 General

Features/Description

TP315-103

Input Connectors

Digital Video + AudioHDMI F, Type A (1)
AC Power
(9 ft. cord attached)
NEMA 5-15P (1)

Output Connectors

Digital Video + AudioHDMI F, Type A (1)
AnyWire Video + VACNEMA 5-15R (4)
IR (from receiver side)3.5 mm Audio F (1)

Compatibility

Signal typesHDMI
Signal resolutions720p, 1080i and 1080p

Accessories Included

HDMI Cablen/a
IR Emittern/a

Table 2: TP315-103 Mechanical

Mechanical

TP315-103

MaterialAluminum
ColorBlack
Height1.96 in (50 mm)
Width8.44 in (214 mm)
Depth3.55 in (90 mm)
Weight1.0 lbs. (0.45 kg)
T° Operating10°C-45°C
Humidity90% non-condensing
MTBF (calc.)38,000 hrs.

Table 3: TP315-103 Electrical

Electrical

TP315-103

Input Signals

Digital Video + AudioHDMI Standard

Output Signals

Digital Video + AudioAnywire + VAC

Power Consumption (AnyWire only)

Internal Power:600 mA (5.4 W)

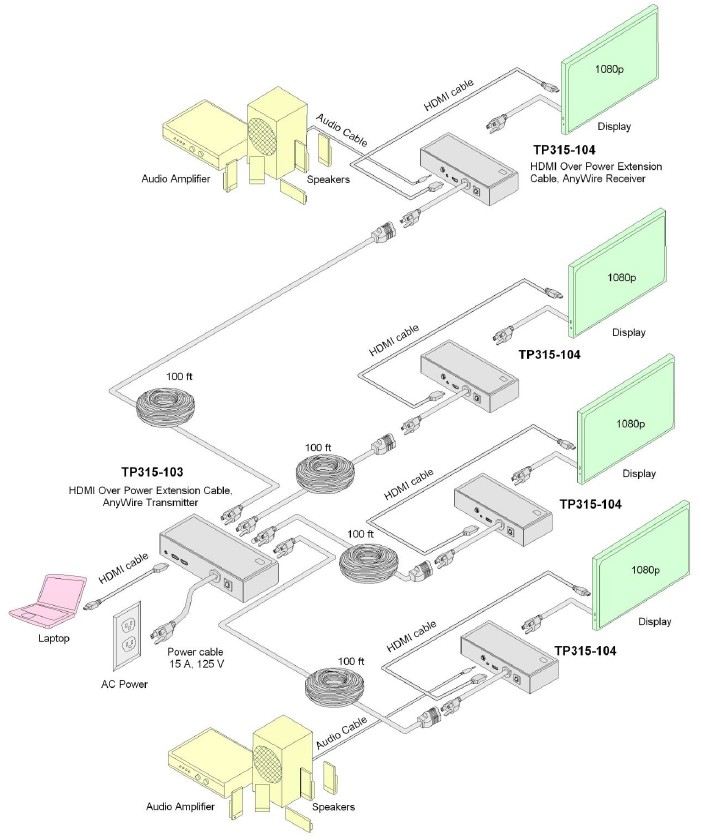

  Application Diagram

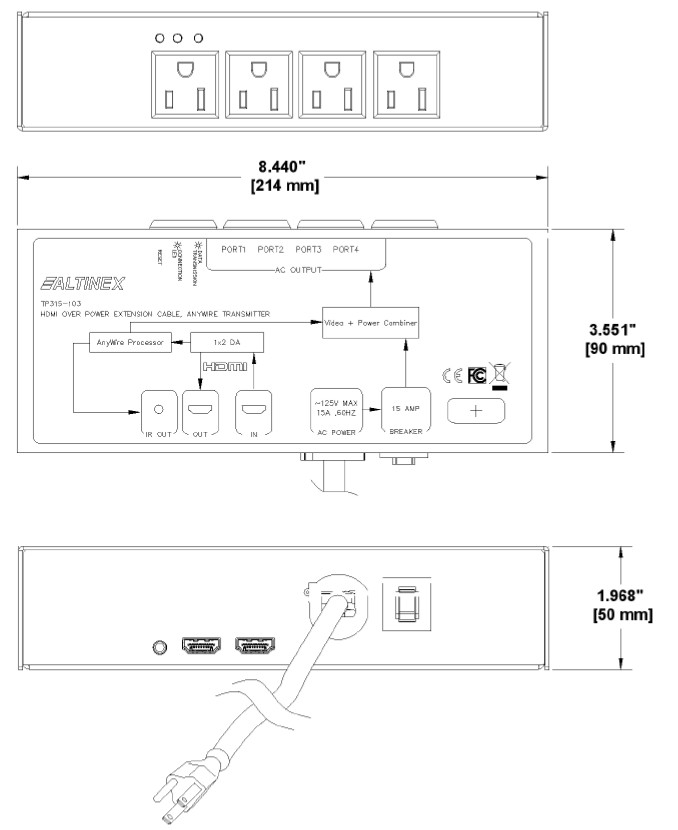

  Dimensions
