UNDER TABLE (UT) HYBRID AV INTERCONNECT UNIT. VGA, HDMI, NETWORK (RJ45)
- Easily installs under a table or inside a podium
- Convenient access to power, AV and network connectors
- Wide range of snap-in connectors available
- Table cutting is not required
- Low profile design
- UL listed
- Comparable to UT240-278 but with Hybrid (Analog and Digital) Connectivity
- Identical connectivity to the Tilt ‘n Plug TNP128 in an Under Table format
- 12 Amp current capability
- As seen in the Altinex Table Top Interconnect Guide
- Ten year warranty
The UT240-128S is a next generation under table interconnect unit providing users a Hybrid connection station to Analog and Digital AV equipment and a 12 amp power socket that can be used to power multiple laptops or other devices.

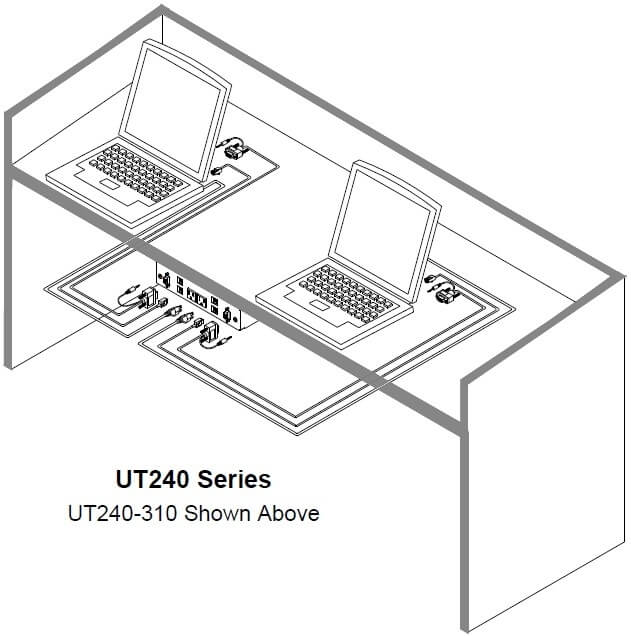

The UT240-128S is an under table multimedia interconnect unit designed for mounting against a surface, usually under a table or inside a podium.
The front of the UT240-128S offers the following pass-through connectors:
- Standard AC receptacle (12amp)
- HDMI® snap-in connector (passive)
- VGA Video
- 3.5mm Audio Jack for Computer/MP3 Audio
- Network (RJ-45) snap-in connector.
- 3 additional (blanked out) snap in locations. A wide range of snap in connectors are available from Altinex.
The Under Table series from ALTINEX offer a wide variety of options for routing computer audiovisual signals, network connections, and AC power in a cost-effective way. They are easily installed under a table, inside a lectern or on the side of a lectern or a table leg. For a simple and cost effective installation, the UT Series from Altinex provides unparalleled ease of use and flexibility.
ALTINEX products are protected by the following patents: D581871, D581361, D580865, D579875, D579874, D583762, D579873, D580358, D585379, D581360, D579415, D579872, D581359, D580357
Pass-Through (front to back)
|AC Power||NEMA Receptacle to plug
9-10 ft. (2.7-3.0 m) cord
|Audio, Stereo Cable||3.5 mm F-F
8 in (200 mm) cable
|Audio, Stereo TB||3.5 mm F to Term Block|
|Audio, Stereo RCA||RCA bulkhead F-F|
|Network (CAT-6)||Snap-in RJ-45 connector (no cable)|
|Modem/phone||Snap-in RJ-11 connector (no cable)|
|Video, Analog||15-pin HD bulkhead F-F|
|Video, Digital||19-pin HDMI bulkhead, F-F|
|Video||BNC bulkhead F-F|
|Communication||USB Type A F-F|
|UT240-128S (U.S.)||CAT-6 (RJ-45) F (1)
Digital Vid (HDMI) F-F (1)
AC Power (1)
15-pin HD F-F (1)
3.5mm F to Term Block (1)

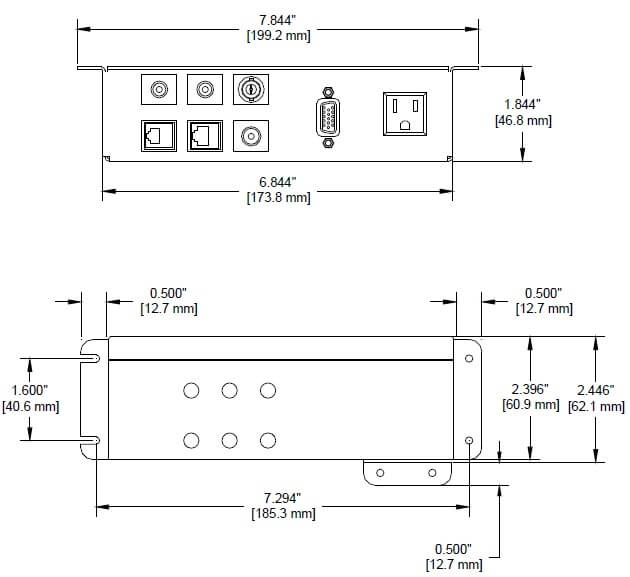

|Dimensions||See Application Diagrams|
|Maximum Shipping Weight||3.5 lb. (1.6 kg)|
|T° Operating [T° Maximum]||10°C-35°C [50°C]|
|Pass-Through Signals||All standard audio, video, network,
and modern signals are acceptable
|Pass-Through AC||12 A, 1440 W max.
(total through all receptacles)
