MT310-104

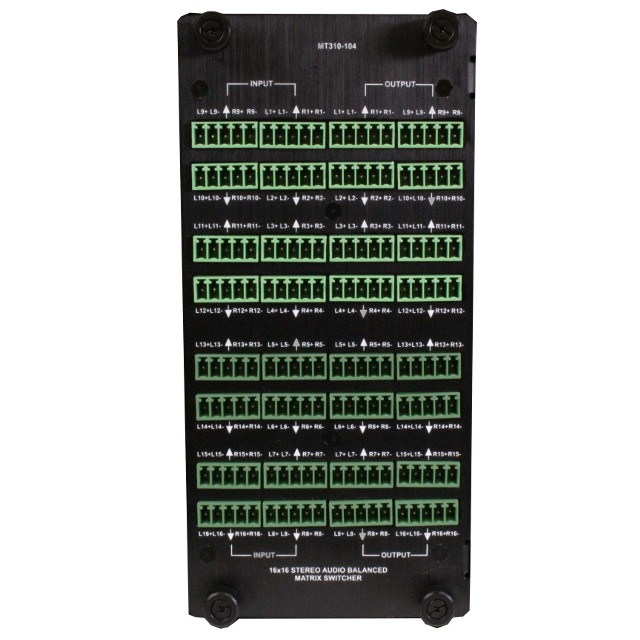

16 X 16 STEREO AUDIO MATRIX SWITCHER (TB IN/OUT)

  • Balanced In/Out
  • Power LED
  • Volume Control
  • 20Hz-20KHz bandwidth
  • Line Level input/output
  • Lifetime warranty
SKU: MT310-104 Categories: , ,

  MT310-104 Overview

The MT310-104 is a Balanced Stereo Audio Matrix Switching Card. This card allows any input to be independently switched to any of the outputs. Also, any input may simultaneously drive multiple outputs. All inputs and outputs can be wired for unbalanced stereo audio, or balanced audio allowing longer cable runs and superior noise resistance.

  Summary

The MT310-104 card utilizes AC coupling on its inputs for signal transfer characteristics. Switching is controlled with easy-to-use commands from a control system or computer connected to the RS-232 port of the MultiTasker enclosure, or through the front panel keys of the MultiTasker system. Each card requires 4 slots in a MultiTasker enclosure and all input and output connections are accomplished via captive screw pluggable terminal blocks.

Although designated as a 16×16 matrix switcher, the MT310-104 can be used in a variety of ways to provide different capabilities. For example, one MT310-104 can be used to create two 8×8 stereo audio matrices or a 4×4 and a 2×2 audio matrix. Each stereo pair is switched together; you cannot switch the left and right channels of an input independently. The MT310-104 features individual input gain control on each input via the RS-232 control or front panel keys.

  Technical Specifications

Table 1: MT310-104 General

Features/Description

MT310-104

Input Connectors

Audio5-pin Terminal blocks (16)

Output Connectors

Audio5-pin Terminal blocks (16)

Compatibility

Signal typesStereo audio

Table 2: MT310-104 Mechanical

Mechanical

MT310-104

Slots4
Weight1.3lb (0.6kg)
Connector PanelBlack Anodized
T° Operating10°C-45°C
Humidity90% non-condensing
MTBF (calc.)38,000 hrs.

Table 3: MT310-104 Electrical

Electrical

MT310-104

Audio Input Signals

Maximum level+4 dBu (1.228 VRMS)
Impedance50 kOhm

Audio Throughput

Gain, adjustable0~90 dB
Frequency response20 Hz to 20 kHz

Audio Output Signals

Maximum Level+4 dBu (1.228 VRMS)
Impedance50 Ohm

Power

+12V1.5 A (7.5W) max.
