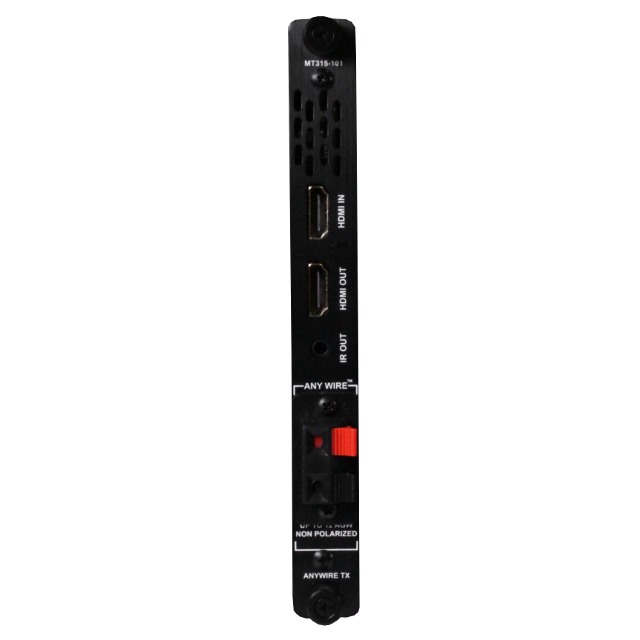

MT315-101

HDMI OVER ANY WIRE, TX CARD

  • HDMI over 2-conductor cable
  • Automatic input/receiver detection
  • Transmission up to 300 m
  • IR pass-through control
  • Local monitor output
  • Signal/Power LEDs
  • HDMI resolutions: 720p, 1080i, and 1080p
  • Lifetime warranty
SKU: MT315-101 Categories: , ,

  MT315-101 Overview





The MT315-101 HDMI over Anywire transmitter allows the transmission of 1080P HDMI signals up to 300 m using a simple 2-conductor cable.

  Summary





With the MT315-101, a single transmitter drives up to 4 receivers using either 4 individual wire pairs over 300 m each, or by daisy chaining the receivers. The only restriction being the wire pair from the transmitter to each receiver cannot be bundled together as crosstalk will occur.

The MT315-101 is an economical solution for many audiovisual installations. The 2-wire solution makes installation easy without the need to cut, splice, and install expensive connectors or purchase costly cables. Simply route your wires, cut and trim the installation and connect to the terminals. That’s it! In many cases, obsolete cables already available in the building can be used for the 2-wires.

Anywire’s unique design provides stable video transmission over greater distances than other designs. IR pass-through for receiver side to transmitter side control is provided without corrupting the HDMI signal during transmission of IR signals.

Operation does not require any user control or interaction. Simply connect the HDMI input and the transmitter scans for the receiver and when detected automatically pairs to the receiver and begins video transmission. A local video output is provided to support a local monitor. The local monitor allows the user on the transmitter side to know what is being presented on the far side of the installation.

  Technical Specifications

Table 1: MT315-101 General

Features/Description

MT315-101

Input Connectors

HDMI VideoHDMI F, Type A (1)

Output Connectors

Digital Video + AudioHDMI F, Type A (1)
Anywire VideoTerminal Strip
Push Connector F (2)
IR (from receiver side)3.5 mm Audio F (1)

Compatibility

Signal typesHDMI
Signal resolution1080P@60Hz,
1080i, 720P
Cable length984 ft. (300 m)
ReceiversMT315-102
TP315-102

Table 2: MT315-101 Mechanical

Mechanical

MT315–101

Slots1
MaterialAluminum
ColorBlack
Weight0.76 lbs. (0.35 kg)
Connector PanelBlack Anodized
T° Operating10°C-45°C
Humidity90% non-condensing
MTBF (calc.)38,000 hrs.

Table 3: MT315-101 Electrical

Electrical

MT315–101

Video Input Signals

Digital Video + AudioHDMI Standard

Video Output Signals

Digital Video + AudioAltinex Anywire
Local Digital Video + AudioHDMI Standard

Power

+12V0. 5 A (6 W) max.
