UT260-105
UNDER TABLE HDMI TO HDBASET TRANSMITTER
- Transmit Audio/Video/Control up to 70m over one Cat 6/Cat 6A/Cat 7 cable
- Support HDMI 4K x 2K
- HDCP 1.4 compliant
- IR and RS-232 pass through
- Remote power from HDBT receiver
- Status LED on front
UT260-105 Overview
The UT260-105 is a high-performance HDMI transmitter with CAT output. In addition to video, the UT260-105 also allows both IR and RS232 control signals from the transmitter to the receiver, or from the receiver to the transmitter.
Summary
The UT260-105 is a high-performance HDMI transmitter with CAT output. In addition to video, the UT260-105 also allows both IR and RS232 control signals from the transmitter to the receiver, or from the receiver to the transmitter.
A power supply is included with the UT260-105, or the UT260-105 transmitter can be powered by the UT260-104 receiver when used with a direct connection between the transmitter and receiver.
Technical Specifications
Table 1: UT260-105 General
|
Features/Description |
UT260-105 |
INPUT CONNECTORS |
|
| Digital Video + Audio | HDMI F, Type A |
| Power | DC Jack 2.5 mm F (1) |
OUTPUT CONNECTORS |
|
| HDMI over CAT | RJ-45 F (1) |
CONTROL |
|
| RS232 | Term. Blk. 3-position (1) |
| IR Output (to emitter) | 3.5 mm F (1) |
| IR Input (from sensor) | 3.5 mm F (1) |
COMPATIBILITY |
|
| Digital Signal types | HDMI 1.4, 3D |
| Signal resolution | Up to 4K x 2K |
ACCESSORIES INCLUDED |
|
| Power Supply | 24V/1A Power Adapter (1) |
| Mounting Brackets | Right Angle (2) |
| Terminal Blocks | 3-position, 3.5 mm (1) |
OPTIONAL ACCESSORIES |
|
| IR Emitter | AC301-114 |
| IR Receiver | AC301-116 |
Table 2: UT260-105 Mechanical
|
Mechanical |
UT260-105 |
| Material | Steel |
| Color | Black |
| Height | 0.98 in (25 mm) |
| Width | 2.95 in (75 mm) |
| Length | 4.37 in (111 mm) |
| Weight | 1.3 lb (0.6 kg) |
| T° Operating | 10°C-40°C |
| Humidity | 60% RH non-condensing |
| MTBF (calc.) | 38,000 hrs. |
Table 3: UT260-105 Electrical
|
Electrical |
UT260-105 |
Video Input Signals | |
| Digital Video + Audio | HDMI Standard |
Output Signals | |
| Digital Video + Audio on HDBT | Altinex Standard |
Power | |
| +24VDC | 500 mA, 24 W |
Videos

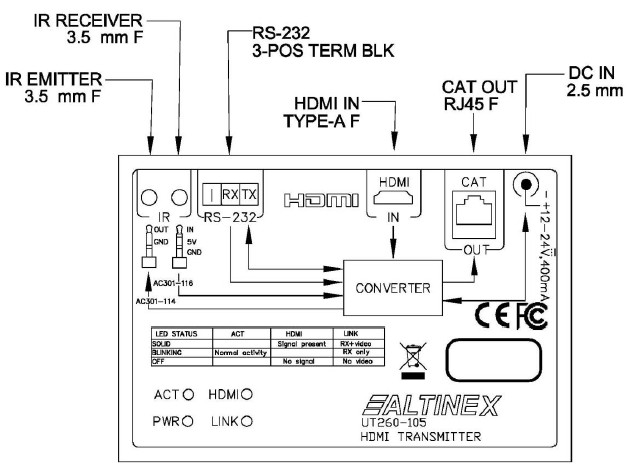

Application Diagram
Dimensions
