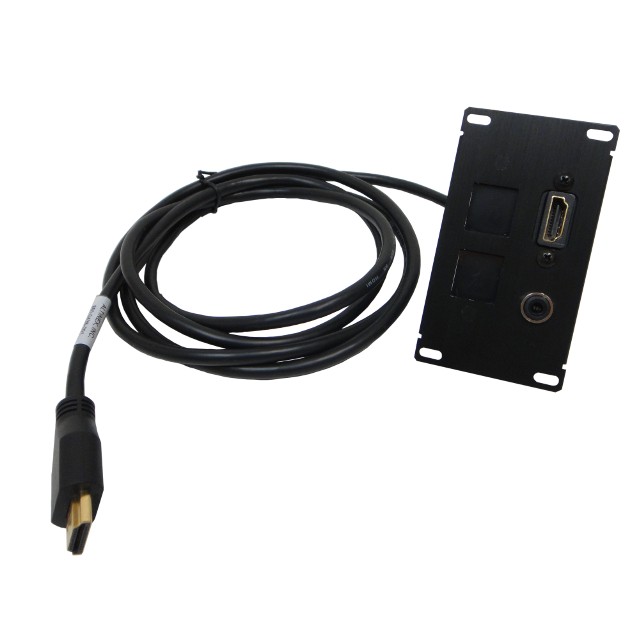

CNK-IP-112

HDMI INSERT PLATE FOR CABLE-NOOK JR. 6FT HDMI CABLE, F-M,
3.5MM TO TB, 2X EMPTY SNAP-INS

  • Compatible with CNK221 and CNK221S
  • HDMI Digital Video (F-M) pass thru cable, 6′ (1.83m)
  • Analog audio on 3.5mm (to terminal block)
  • 2 empty ports available for snap-in connectors
  • Black anodized aluminum
  • RoHS compliant
  • 8 slots wide
SKU: CNK-IP-112 Category:

  CNK-IP-112 Overview



The CNK-IP-112 provides high quality pass-through HDMI and analog audio on 3.5mm (to terminal block) connections and has 2 empty ports for Altinex snap-in connectors.

  Summary

The CNK-IP-112 provides high quality pass-through connections for digital HDMI video and analog audio and has 2 empty ports for Altinex snap-in connectors. It works with the Cable Nook (CNK) Jr. series of furniture connectivity products.

The CNK-IP-111 occupies 8 slots in a Cable Nook  Jr. models, CNK221 and CNK221S .

  Technical Specifications

CompatibilityCNK Jr series
MaterialBlack anodized aluminum, 0.05 inch
Dimensions(L x W): 3.5” x 1.9”
Accessories Included2 pcs of blank snap-in module
5 pcs mounting hardware screws
Required slots8 slots wide

  Related Products

CNK221 CABLE-NOOK JR.® TABLETOP INTERCONNECT BOX

CNK221S CABLE-NOOK JR.® TABLETOP INTERCONNECT BOX (SILVER)

CNK221C CABLE-NOOK JR.® TABLETOP INTERCONNECT BOX (CUSTOMIZABLE)
