CNK600S

EMPTY CABLE-NOOK® INTERCONNECT BOX (SILVER)

  • Installs into tabletop
  • Convenient mounting from top of table
  • Easy access to cable ends or fixed connectors
  • Clear brushed aluminum finish
  • Simple, cost-effective interconnect solution
  • Sold as an empty unit
  • Pre-configured customizable plates available, SP2116SCSP2117SC or SP2118SC
  • As seen in the Altinex Table Top Interconnect Guide
  • Ten year warranty
SKU: CNK600S Categories: , , ,

  CNK600S Overview

The CNK600S is a simple, effective way of hiding/storing multimedia cables and connectors when not in use. It is designed for boardrooms and conference rooms. Cables remain connected to a presentation system enabling the user to access connections to AC power, video, audio, and other media sources.

  Summary

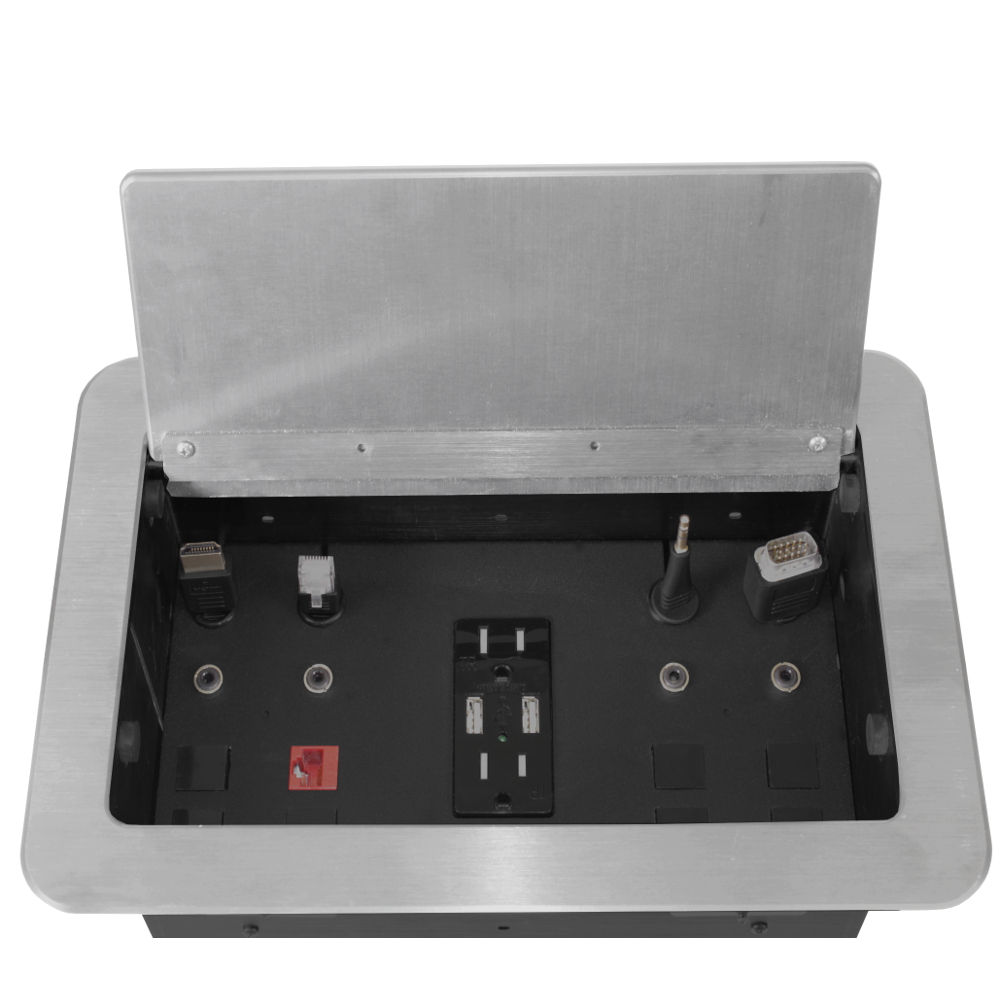

The modular Cable Nook uses a trapdoor type lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the lid and pull the cable ends out, or plug cables into fixed connectors. The closed lid has an opening that allows cables to be used with the lid closed. After the presentation, the cable ends are returned to the Cable Nook for safe storage.

Cables feed through the Cable Nook to the underside of the table, enabling connection to the presentation system.

The CNK600S has convenient mounting that can be done from the top of the table using the hex‑L‑key provided. The CNK600S may be ordered with either of the all‑purpose, pre‑configured customizable plates SP2116SC , SP2117SC (international) or SP2118SC .

The SP2116SC plate offers dual 12 Amp AC sockets along with 2 USB ports that deliver up to 3A of charging power. The USB charger has an LED to indicate power availability. The plate also has 12 ports for snap in cables that can be customized based on the customer’s requirements. In addition, the SP2116SC plate is designed to be used with up to 4 of any combination of Altinex retractable cables.

The SP2117SC plate offers dual international AC sockets, 12 ports for snap in cables that can be customized based on the customer’s requirements. In addition, the SP2117SC plate is designed to be used with up to 4 of any combination of Altinex retractable cables.

The SP2118SC is a customizable configuration face plate designed with four openings for CNK-IP-2XX modules.

The CNK600S is designed so that retractable cables can be mounted directly to the unit without any additional mounting brackets. The body of the CNK600S has thumb screws for retract connections, eliminating the need for additional tools.

  Videos

  Technical Specifications

Table 1: CNK600S General

Features/Description

CNK600S

Inputs

Video/AudioN/A

Outputs

Video/AudioN/A

Compatibility

Cable Nook Standard and
Customizable Plates
SP2116SC
SP2117SC (international)
Snap-In ConnectorsAll ALTINEX Snap-In
Connectors

Accessories Included

Mounting HardwareScrews (4),
Mounting Brackets (4)
attached to the unit

Table 2: CNK600S Mechanical

Mechanical

CNK600S

Minimum Table Thickness0.5 in (13 mm)
Maximum Table Thickness3.5 in (89 mm)

Housing Dimensions

Height5.8 in (147 mm)
Width9.3 in (236 mm)
Depth5.1 in (130 mm)

Bezel Dimensions (surface)

Width11.2 in (284 mm)
Depth6.99 in (178 mm)
ColorClear Brushed Aluminum
MaterialAluminum
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (calculations)40,000 hrs (min.)
