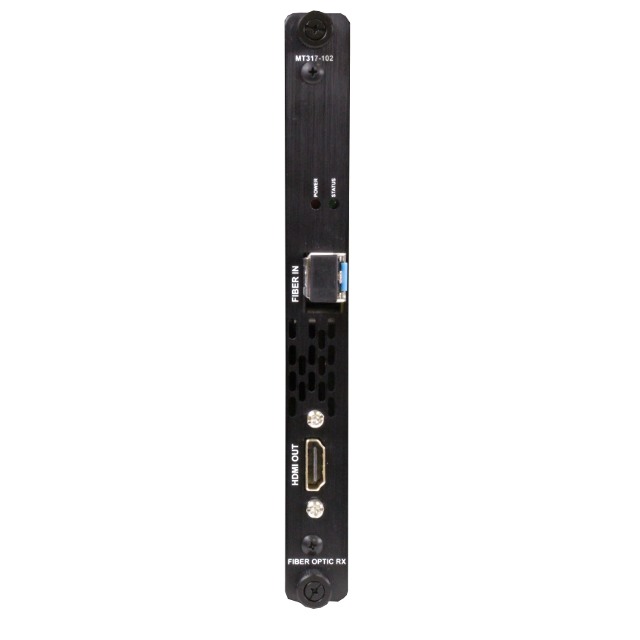

MT317-102

HDMI OVER FIBER OPTIC, RX CARD

  • HDMI over fiber optic cable
  • Transmission up to 300 m
  • HDMI resolutions up to 4K
  • Lifetime warranty
SKU: MT317-102 Categories: , ,

  MT317-102 Overview



The MT317–102 is an HDMI extender receiver based on light carrying technology over fiber optic cable.

  Summary

The MT317–102 card allows a standard HDMI signal to be transmitted up to 984 ft. (300 m) feet over multimode OM3 type cable when paired with a compatible transmitter like the MT317-101 and FR317-101. The transmitter may be an Altinex MultiTasker card inside of another enclosure at a remote location, or the transmitter can be Altinex’s stand-alone transmitter FR317-101.

The use of fiber optic cable allows for secure transmission of private or classified video. There are no electromagnet emissions to be picked up or “sniffed” by external monitoring equipment. Fiber optic cable is ideal for hospitals, financial institutions, military, etc.

Like all MultiTasker cards, the MT317–102 can be paired with other MultiTasker cards in the same enclosure for added functionality. For example, HDMI matrix switcher card, HDMI distribution cards, scalers, etc. Control software can be used to communicate with the MultiTasker enclosure to monitor the card temperature, power consumption, and event to disable the hardware power in order to save power when not in use.

  Technical Specifications

Table 1: MT317–102 General

Features/Description

MT317–102

Input Connectors

Multimode Fiber OutLC UPC DUPLEX F(1)

Output Connectors

HDMI VideoHDMI F, Type A (1)

Compatibility

Signal typesHDMI
Signal resolution1080P@60Hz,
1080i, 720P, 576P, 480P,
4Kx2K@30Hz
ReceiverMT317-102
FR317-102
CableLC UPC to LC UPC Duplex
OM3 Multimode
Range (Longer range options are available.)984 ft (300 m)

Table 2: MT317–102 Mechanical

Mechanical

MT317–102

Slots1
MaterialAluminum
ColorBlack
Weight0.76 lbs. (0.35 kg)
Connector PanelBlack Anodized
T° Operating10°C-45°C
Humidity90% non-condensing
MTBF (calc.)38,000 hrs.

Table 3: MT317–102 Electrical

Electrical

MT317–102

Video Input Signals

Digital Video + AudioAltinex Standard

Video Output Signals

Digital Video + AudioHDMI Standard

Power

+12V0. 5 A (6 W) max.
