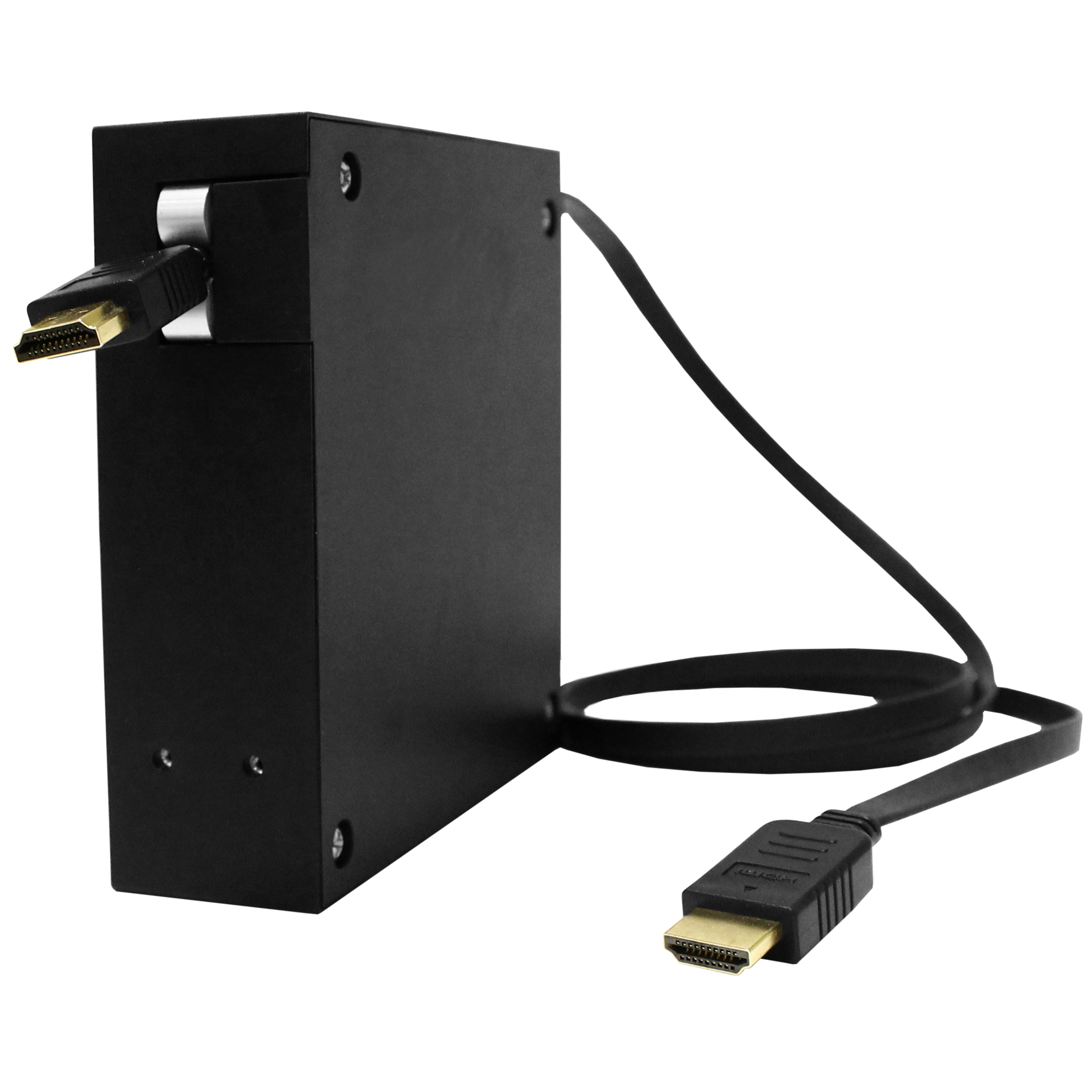

RT300-125
HDMI (M-M) RETRACTABLE CABLE
- Convenient, easy to install cable retraction system for CNK200 and CNK221 interconnect box and stand alone
- Simple operation for AV connectivity
- HDMI compliant retractable cable
- CNK200 supports four (4) MINI-ME RT300-125 units
- CNK221 supports two (2) MINI-ME RT300-125 units
- 2K/4K at 30Hz
- Tested to 10,000 retracts
- Mounting hardware included
- Active amplifier for trouble-free HDMI signal
- One (1) year warranty
RT300-125 Overview
The RT300-125 offers a solution for managing HDMI cables. The cable assembly was designed to deliver high definition video and audio to a switcher or a display. The HDMI cable contains a built-in amplifier to maintain HDMI signal integrity.
Summary
The RT300-125 offers a solution for managing HDMI cables. The cable assembly was designed to deliver high definition video and audio to a switcher or a display. The HDMI cable contains a built-in amplifier to maintain HDMI signal integrity. The RT300-125 has 4.0 ft of retractable cable and 4 ft of fixed length cable. The cable and the retractor have been tested to over 10,000 extensions/retractions. The mounting hardware for securely mounting the cable retractor to the surface is provided with the RT300-125.
Videos
Technical Specifications
Table 1. RT300-125 General Specifications
|
Features/Description |
RT300-125 |
Inputs |
| Video/Audio | HDMI format |
Outputs |
|
| Video/Audio | HDMI format |
Compatibility |
|
| Tabletop enclosures | CNK200 CNK221 |
| Stand-alone mounting | Mounting holes with 4x40 threads are provided |
Additional Accessories |
|
| Mounting Hardware | - Mounting bracket - Mounting screws (2 pcs) |
Table 2. RT300-125 Mechanical Specifications
|
Mechanical |
RT300-125 |
Dimensions |
| Height | 4.8 in (122 mm) |
| Width | 4.8 in. (122 mm) |
| Depth | 1.4 in. (37 mm) | Other |
| Normal Pull force | 0.3 lb. (+/- 0.1) |
| End of cable pull force | Max 10 lb. (+2 lb.) (Damage may occur if customer forces retract past the end of cable.) |
| Weight | 0.78 lbs. (0.353 kg.) |
| Color | Black |
| Material | Plastic |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (tested) | 10,000 retractions |
Table 3. RT300-125 Electrical Specifications
|
ELECTRICAL |
RT300-125 |
| Cable Gauge | 36 AWG |
| Voltage Rating for Cable | 30V |
| Power | 5V, 5ma |
| Amplifier | Built-in 1080p |
