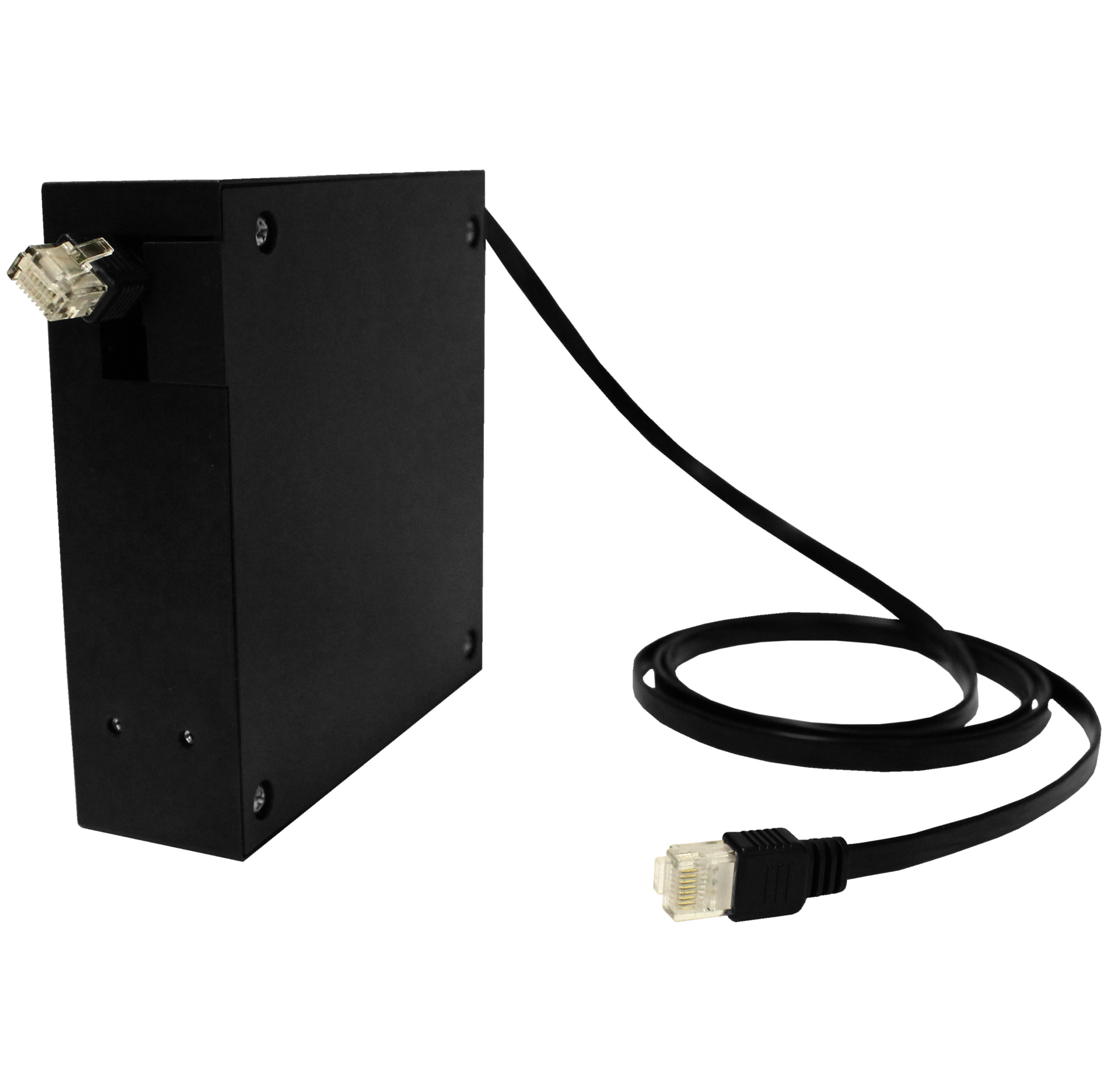

RT300-145
RJ-45 (M-M) RETRACTABLE CABLE
- Convenient, easy to install cable retraction system for CNK200 and CNK221 interconnect boxes and stand alone
- Simple operation for AV connectivity
- RJ-45 compliant coaxial cable
- CNK200 supports four (4) MINI-ME RT300-145 units
- CNK221 supports two (2) MINI-ME RT300-145 units
- Tested to 10,000 retracts
- Mounting hardware included
- One (1) year warranty available
RT300-145 Overview
The RT300-145 offers a solution for managing network cables at any conference or boardroom table. The cable assembly was designed to provide optimum performance.
Summary
The RT300-145 offers a solution for managing RJ-45 cables. The cable assembly was designed to provide optimum performance. The RT300-145 has 4.0 ft of retractable cable and 4 ft of fixed length cable. The cable and the retractor have been tested to over 10,000 extensions/retractions. The mounting hardware for securely mounting the cable retractor to the surface is provided with the RT300-145.
Videos
Technical Specifications
Table 1. RT300-145 General Specifications
|
Features/Description |
RT300-145 |
Inputs |
| Network | RJ-45 M |
Outputs |
|
| Network | RJ-45 M |
Compatibility |
|
| Tabletop enclosures | CNK200 CNK221 |
| Stand-alone mounting | Mounting holes with 4x40 threads are provided |
Accessories Included |
|
| Mounting Hardware | - Mounting bracket - Mounting screws (2 pcs) |
Table 2. RT300-145 Mechanical Specifications
|
Mechanical |
RT300-145 |
Dimensions |
| Height | 4.8 in (122 mm) |
| Width | 4.8 in. (122 mm) |
| Depth | 1.4 in. (37 mm) | Other |
| Normal Pull force | 0.3 lb. (+/- 0.1) |
| End of cable pull force | Max 10 lb. (+2 lb.) (Damage may occur if customer forces retract past the end of cable.) |
| Weight | 0.78 lbs. (0.353 kg.) |
| Color | Black |
| Material | Plastic |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90% non-condensing |
| MTBF (tested) | 10,000 retractions |
Table 3. RT300-145 Electrical Specifications
|
Electrical |
RT300-145 |
| Cable Gauge | 36 AWG wires, 32 AWG coaxes |
| Voltage Rating for Cable | 30V |
| Power | none |
| Amplifier | none |
