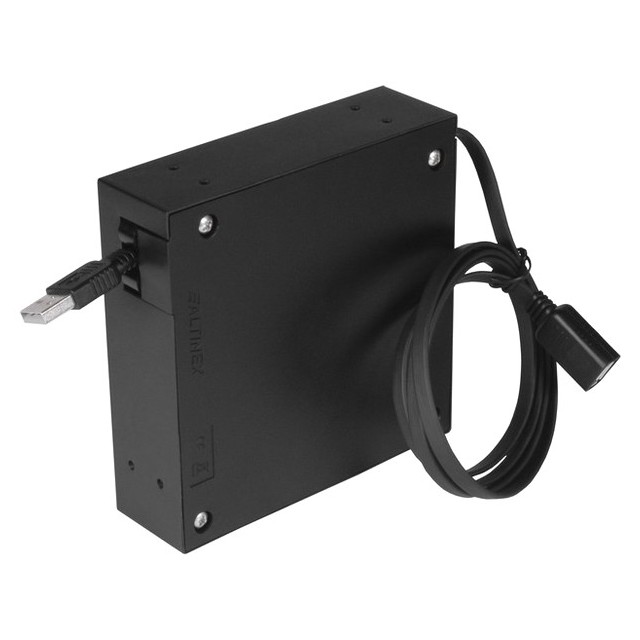

RT300-155

USB (M-F TYPE A) RETRACTABLE CABLE

Convenient, easy to install cable retraction system for CNK200, CNK221 interconnect box and stand alone
Male retractable cable with female fixed cable
Simple operation for AV connectivity
USB 2.0 compliant cable
Cannot be used for video
CNK200 supports four (4) MINI-ME RT300-155 units
CNK221 supports two (2) MINI-ME RT300-155 units
Tested to 10,000 retracts
Mounting hardware included
One (1) year warranty

SKU: RT300-155 Categories: Accessories, Cable Nooks

RT300-155 Overview

The RT300-155 offers a solution for managing network cables at any conference or boardroom table. The cable assembly was designed to provide optimum performance.

Summary

The RT300-155 offers a solution for managing USB cables. The cable assembly was designed to provide optimum performance. The RT300-155 has 4.0 ft of retractable cable and 4 ft of fixed length cable. The cable and the retractor have been tested to over 10,000 extensions/retractions. The mounting hardware for securely mounting the cable retractor to the surface is provided with the RT300-155.

Technical Specifications

Table 1. RT300-155 General Specifications

Features/Description	RT300-155
Inputs
USB	USB 2.0
Outputs
USB	USB 2.0
Compatibility
Tabletop enclosures	CNK200 CNK221
Stand-alone mounting	Mounting holes with 4x40 threads are provided
Accessories Included
Mounting Hardware	- Mounting bracket - Mounting screws (2 pcs)

Table 2. RT300-155 Mechanical Specifications

Mechanical	RT300-155
Dimensions
Height	4.8 in (122 mm)
Width	4.8 in. (122 mm)
Depth	1.4 in. (37 mm)
Other
Normal Pull force	0.3 lb. (+/- 0.1)
End of cable pull force	Max 10 lb. (+2 lb.) (Damage may occur if customer forces retract past the end of cable.)
Weight	0.78 lbs. (0.353 kg.)
Color	Black
Material	Plastic
T° Operating	10°C-35°C
T° Maximum	50°C
Humidity	90% non-condensing
MTBF (tested)	10,000 retractions

Table 3. RT300-155 Electrical Specifications

Electrical	RT300-155
Cable Gauge	30AWG/26AWG 1 Pair/2 Conductors
Voltage Rating for Cable	30V
Power	none
Amplifier	none

Videos

Related Products

All RT-xxx series retractable cables are compatible with our Cable-Nook® interconnect boxes:

CNK200 – Cable-Nook® Modular Tabletop Interconnect Box
CNK200S – Cable-Nook Modular Tabletop Interconnect Box (Silver)
CNK221 – Cable-Nook Jr.® Tabletop Interconnect Box
CNK221S – Cable-Nook Jr. Tabletop Interconnect Box (Silver)

Optional accessories:

AC200-126 – RT300-XXX UNDER TABLE MOUNTING HARDWARE

Documents

RT300-155 Full Size Image

1 file(s) 3.53 MB

Download

RT300-155 User Guide

1 file(s) 326.42 KB

Download
