TNP155
TILT N PLUG JR. WITH 2+2 CHARGING USB AND POWER
- Smooth gas-spring operation
- Ultra-flat surface when closed
-
2 US AC Sockets with 12 Amp rating (shared)
-
2 High Speed Charging USB Sockets
- Powered by included 5V, 3.4A, dual USB charger (PS5595UB)
-
Black brushed aluminum finish
- Customizable with different connections and colors as the TNP150C
- UL listed
- UL listed for installation in kitchens, bathrooms and countertops (US only)
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty
TNP155 Overview

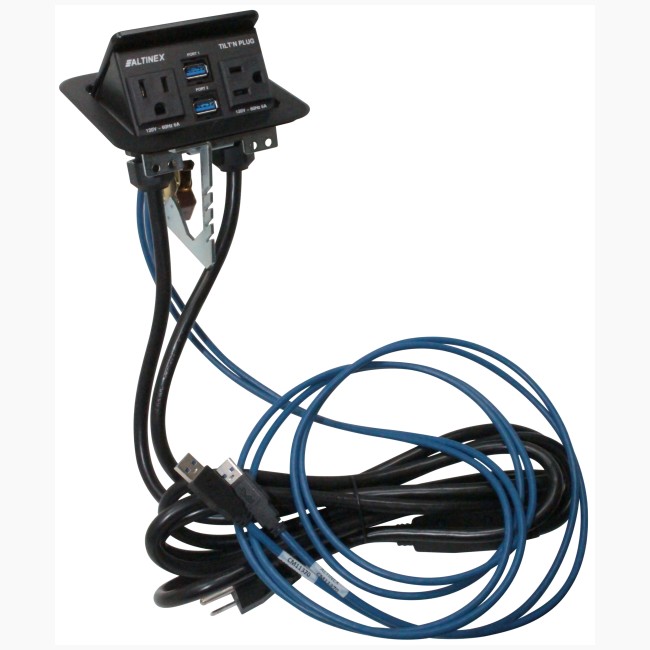

The TNP155 Tilt ‘N Plug Jr. is a compact interconnect solution that provides charging USB and AC power connections when needed, and hides them when not.
Summary
The TNP155 Tilt ‘N Plug Jr. is a compact interconnect solution that provides charging USB and AC power connections when needed, and hides them when not.
Connections on the TNP155 are accessed by pushing down on the top panel, which tilts into view using a smooth gas spring. Once opened, the input plate remains securely in place. The unit is closed by pressing down on the top panel, which closes the lid. In its closed position, the top panel lies flush with the table top, held in place by a mechanical latching mechanism.
The TNP155 provides a single input plate with two (2) AC Power connection outlets with 9-10 ft (2.7-3.0m) cables and two (2) USB (Type A F-M) input connections with 6 ft (2m) cable length intended for power charging, suitable for use throughout the U.S. and Canada. The product also comes with 5V, 3.4A, Dual USB charger, PS5595UB, to power up USB connections from the back end.
The TNP155 can be customized with different connections and colors. To do so, refer to TNP150C.
ALTINEX products are protected by the following patents:
6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819
Technical Specifications
Table 1: TNP General
|
Features/Description |
TNP |
TNP155 |
|
| Audio, Video, Communication | 6 ft. (2 m) |
| USB | USB Type A F-M (2) |
Agency Approval |
|
| UL/C-UL Listed | File E254082 |
All TNP Models |
|
| Pass-Through AC Power | 9-10 ft. (2.7-3.0 m) |
| 120 VAC, 60 Hz, 12 A | NEMA F-M |
Accessories Included |
|
| Hardware | - Mounting screws, nuts, brackets - Cable clamps/screws |
| USB Wall Adapter (PS5595UB) | - TNP155 accessory only |
Table 2: Mechanical
|
Mechanical |
All TNP Models |
| Max. Table Thickness | 2.25 in (57 mm) |
| Height, opened | 5.5 in (140 mm) |
| Width | 4.6 in (117 mm) |
| Depth | 4.9 in (124 mm) |
| Weight (approx.) | 2.8 lb. (1.3 kg) |
| Shipping Weight | 4.5 lb. (2.0 kg) |
| Finish Standard: | Matte Black |
| T° Operating (T° Max) | 10°C-35°C (40°C) |
| Humidity | 90° non-condensing |
Table 3: Electrical
|
Mechanical |
All TNP Models |
| Electrical (Single or dual outlet panel) | All TNP Models |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, 12A Total Current |

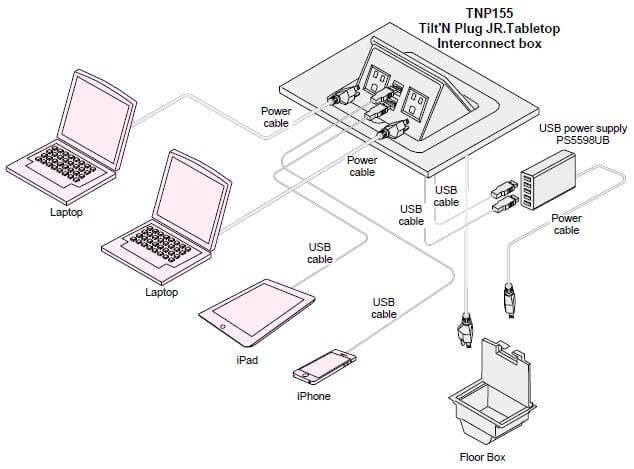

Application Diagram
Dimensions
