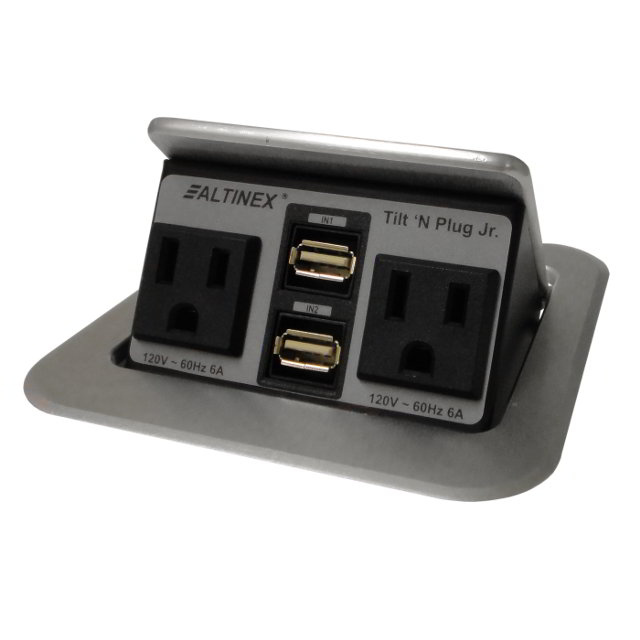

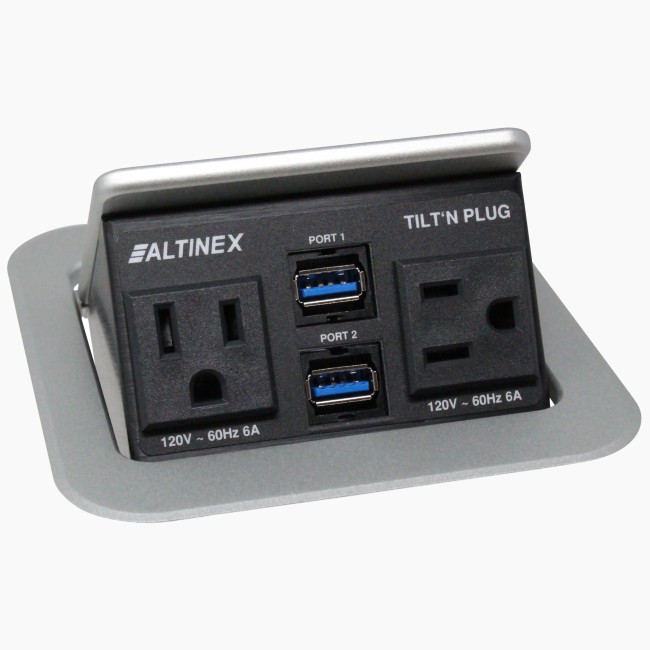

TNP155S

TILT N PLUG JR. WITH 2+2 CHARGING USB AND POWER

  • Smooth gas-spring operation
  • Ultra-flat surface when closed
  • Powered by included 5 amp, 5 port, low profile USB power supply (PS5594UB)
  • 5 amps among 5 ports guarantee the fastest charge time
  • Silver brushed aluminum finish
  • Customizable with different connections and colors as the TNP150C
  • UL listed for installation in kitchens, bathrooms and countertops (US only)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: TNP155S Category:

  TNP155S Overview

The TNP155S Tilt ‘N Plug Jr. is a compact interconnect solution that provides charging USB and AC power connections when needed, and hides them when not.

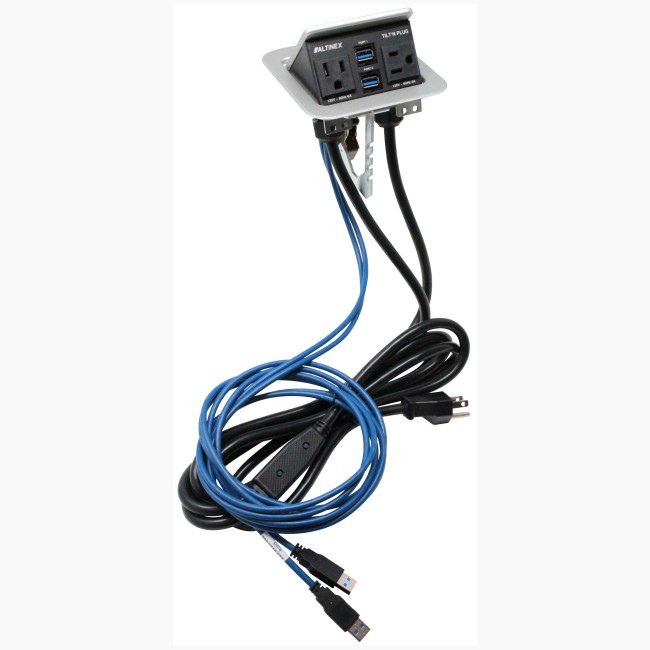

  Summary

The TNP155S Tilt ‘N Plug Jr. is a compact interconnect solution that provides charging USB and AC power connections when needed, and hides them when not.

Connections on the TNP155S are accessed by pushing down on the top panel, which tilts into view using a smooth gas spring. Once opened, the input plate remains securely in place. The unit is closed by pressing down on the top panel, which closes the lid. In its closed position, the top panel lies flush with the table top, held in place by a mechanical latching mechanism.

The TNP155S provides a single input plate with 2 AC Power connection outlets with 9-10 ft (2.7-3.0m) cables and 2 USB (Type A F-M) input connections with 6 ft (2m) cable length intended for power charging, suitable for use throughout the U.S. and Canada. The product also comes with 5V, 5 ports USB low profile power supply, PS5594UB, to power up USB connections from the back end.

The TNP155S can be customized with different connections and colors. To do so, refer to TNP150C.

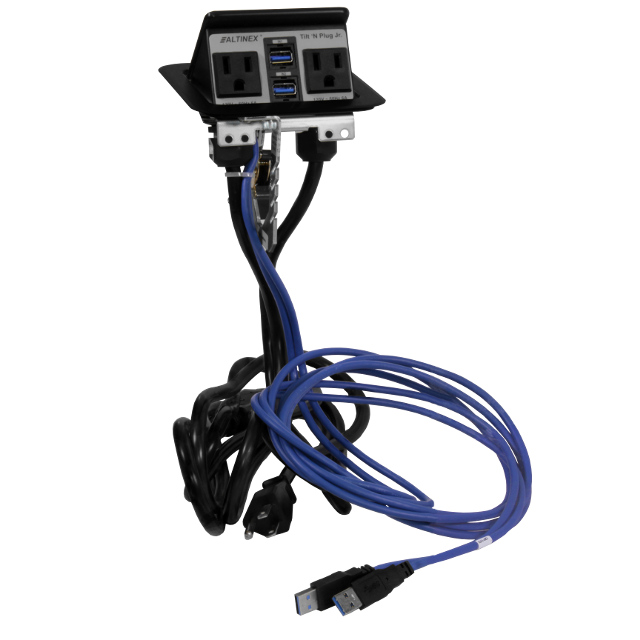

TNP155 Cables

ALTINEX products are protected by the following patents: 6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819

  Technical Specifications

TNP141/151/155

Audio, Video and Communication

6 ft. (2 m)

NetworkCAT-6 (RJ-45) F-M (2)
USBUSB Type A F-M (2)

All TNP Models

Pass-Through AC Power9-10 ft. (2.7-3.0 m)

120 VAC, 60 Hz, 12 A

NEMA F-M

Accessories Included

Hardware-Mounting screws/brackets
-Cable clamps/screws
USB Wall Adapter TNP155 accessory only

Mechanical

TNP121/125/126/128/131 and TNP141/151/155

Max Table Thickness2.25 in (57 mm)
Height, opened5.5 in (140 mm)
Width (TNP121/125/128/151)
Diameter (TNP126/131/141)
4.6 in (117 mm)
5.8 in (147 mm)
Depth (TNP121/125/128/151)4.9 in (124 mm)
Weight (approx.) 2.8 lb. (1.3 kg)
Shipping Weight4.5 lb (2.0 kg)
Standard Finish:
Models ending in S:
Matte Black
Brushed Aluminum
T° Operating (T° Max)10°C-35°C (40°C)
Humidity90% non-condensing

Electrical (Dual outlet panel)

TNP141/151/155

Power Rating (pass-through AC power)120VAC, 60Hz, 12A Total Current

  Application Diagram

  Dimensions
