TNP328
TILT ‘N PLUG HYBRID. HDMI, VGA, AUDIO, RJ45, 2XPWR
- Pre-configured, compact hybrid interconnect solution with HDMI and VGA
- Dual AC sockets rated at 12A
- High quality matte black finish
- Simple, drop-in installation
- Gas spring for smooth operation
- UL listed
- UL listed for installation in kitchens, bathrooms and countertops (US only)
- As seen in the Altinex Table Top Interconnect Guide
- Ten year warranty
TNP328 Overview
The TNP328 is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system.
Summary

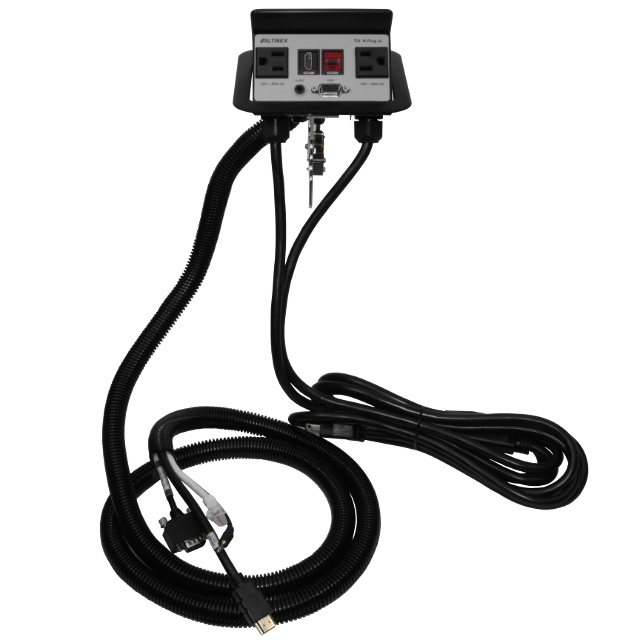

The TNP328 is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover allowing the unit to tilt open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop. This tabletop solution offers up to dual 12 Amps from the AC sockets with computer video/audio, HDMI and network pass through cables. The passive cables are 6ft and are bundled together for organized cable management. The power cable is split to deliver power to both outlets on the tabletop from one AC plug.
The TNP328 is one of many solutions available in the TNP product line that can be customized with many different connectivity options. To do so, please refer to TNP328C.
Technical Specifications
Table 1: TNP328 General Specifications
|
Features/Description |
TNP328/328C |
| Pass-Through AC Power | 9ft. (3.0 m) |
| 120 VAC,60 Hz, 12A | NEMA Socket-Plug |
Agency Approval |
|
| UL/C-UL Listed | File E254082 |
| Audio, Video, Communication | 6 ft. (2 m) |
| Computer video | 15-pin HD F-M (1) |
| Computer Audio | 3.5mm F-M (1) |
| HDMI | HDMI F-M (1) |
| Network | CAT-6 (RJ-45) F-M (1) |
Accessories Included |
|
| Hardware | -Mounting screws/brackets -Cable clamps/screws |
Table 2: TNP328 Mechanical Specifications
|
Mechanical |
|
| Max. Table Thickness | 2.25 in (57 mm) |
| Height, opened | 6.4 in (163 mm) |
| Width | 5.7 in (145 mm) |
| Depth | 5.2 in (132 mm) |
| Finish Standard: | Matte Black Finish |
| Weight (approx.) | 2.75 lb. (1.25 kg) |
| Shipping Weight | 5.5 lb. (2.5 kg) |
| T° Operating | 10°C - 35°C |
| T° Maximum | 40°C |
| Humidity | 90° non-condensing |
Table 3: TNP328 Electrical Specifications
|
Electrical |
TNP328 |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, Up to 12A total |
