TNP329C

TILT ‘N PLUG HYBRID A/D TABLETOP INTERCONNECT BOX, 3 SNAP-IN

  • Available in high quality matte black finish or clear brushed finish

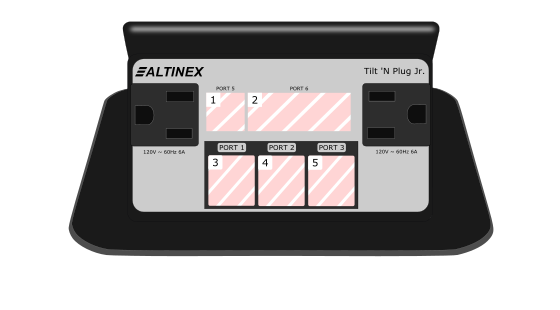

  • Fully customizable
  • Dual AC sockets rated for up to 12A from one power cord
  • Simple, drop-in installation
  • Gas spring for smooth operation
  • UL listed
  • 8-10 day lead time (5 pieces or less)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • The price of the unit includes all connectors
  • Ten year warranty available
Category:

  TNP329C Overview

The TNP329C is a compact, customizable interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system.

  Summary

The TNP329C is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover allowing the unit to tilt open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop.

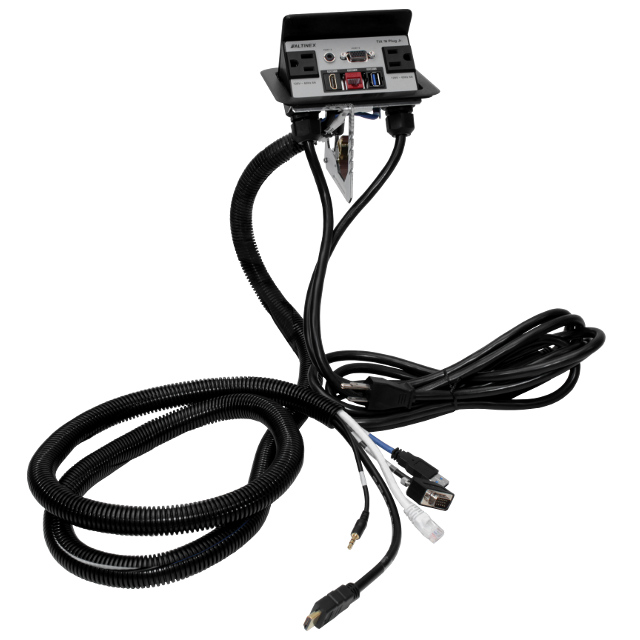

This tabletop solution offers up to dual 12 Amps from the AC sockets with computer video/audio, HDMI, network, and USB pass through cables. The passive cables are 6ft and are bundled together for organized cable management. The power cable is split to deliver power to both outlets on the tabletop from one AC plug.

The TNP329C is one of many solutions available in the TNP product line that can be customized with many different connectivity options by selecting the “Customize” button above.

  Technical Specifications

FEATURES/DESCRIPTION

TNP329/329C

Pass-Through AC Power

9 ft. (3.0 m)

120 VAC, 60 Hz, 12ANEMA Socket-Plug

Agency Approval

UL/CUL ListedFile E254082
Audio, Video, Communication6 ft. (2m)
Computer Video15-pin HD F-M (1)
Computer Audio3.5mm F-M (1)
HDMIHDMI F-M (1)
NetworkCAT-6 (RJ-45) F-M (1)
USBUSB Type A F-M (1)

Accessories Included

Hardware-Mounting screws/brackets
-Cable clamps/screws

Mechanical

Max Table Thickness2.25 in (57 mm)
Height, opened6.4 in (163 mm)
Width5.7 in (145 mm)
Depth5.2 in (132 mm)
Standard Finish:
Models ending in S:
Matte Black
Brushed Aluminum
Weight (approx.) 2.75 lb. (1.25 kg)
Shipping Weight5.5 lb (2.5 kg)
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Electrical (Dual Outlet Panel) for TNP329C

Power Rating (pass-through AC power)120VAC, 60Hz, Up to 12A total

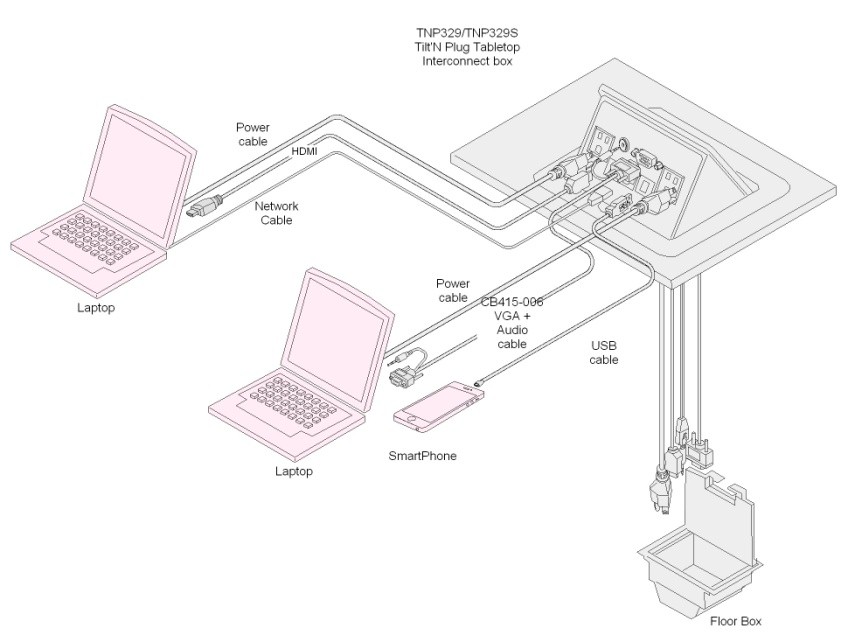

  Application Diagram

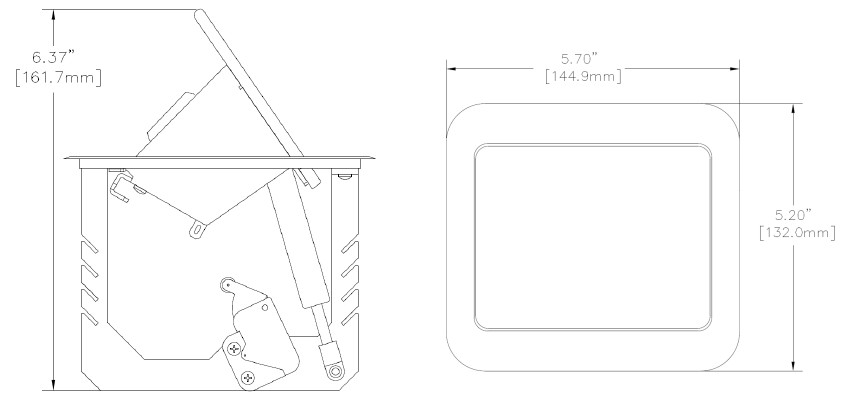

  Dimensions
