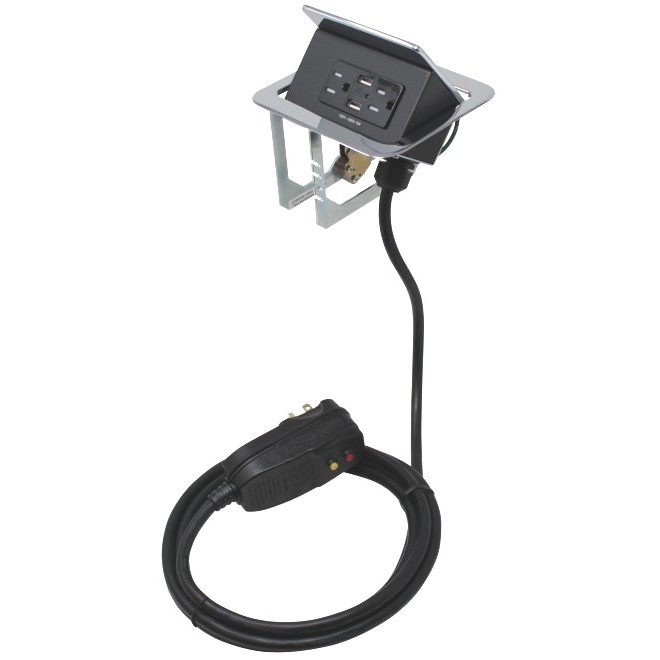

TNP355C

TILT ‘N PLUG 2 X PWR + 2 X USB

  • Tamper resistant dual AC plugs
  • Dual built in circuitry for USB ports
  • Ultra flat surface when closed
  • Custom chrome bezel and top cover
  • Simple, drop-in installation
  • 8-10 day lead time (5 pieces or less)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • The price of the unit includes all connectors
  • Ten year warranty available
SKU: TNP355C Categories: ,

  TNP355C Overview

The TNP355C is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system.

  Summary

The TNP355C is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Power and USB are accessed by pushing down on the top cover allowing the unit to tilt open. The power and USB sockets are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop. This tabletop solution offers dual 12 Amps AC sockets along with 2 USB ports that can deliver up to 3A of charging power indicated by a green LED light. The tabletop solution was specially designed for use with USB compatible devices. The power cable is split to deliver power to both outlets on the tabletop from one AC plug.

The TNP355C is one of many solutions available in the TNP product line that can be customized with many different connectivity options.



  Technical Specifications

FEATURES/DESCRIPTION

TNP355C

Pass-Through AC Power

9 ft. (3.0 m)

125 VAC, 60 Hz, 12ANEMA Socket-Plug (2)
Internal USB circuitUSB 2.0 type A female (2)

Agency Approval

UL/CUL ListedFile E254082

Accessories Included

Hardware-Mounting screws/brackets
-Cable clamps/screws

Mechanical

Max Table Thickness2.25 in (57 mm)
Height, opened5.88 in (149 mm)
Width5.7 in (145 mm)
Depth5.2 in (132 mm)
Custom FinishPolished Chrome
Weight (approx.) 2.75 lb. (1.25 kg)
Shipping Weight5.5 lb (2.5 kg)
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Electrical (Dual Outlet Panel) for TNP355C

Power Rating (pass-through AC power)120VAC, 60Hz, Up to 12A
Power Rating (USB 2.0 charging port)5VDC, 3A total

  Application Diagram

  Dimensions
