TNP358S

TILT ‘N PLUG. 2 X PWR + 2 X USB + HDMI® + AUDIO (SILVER)

  • Safety covered dual 12 amp AC sockets
  • Dual charging USB ports (3 Amps max)
  • 12 Amps AC socket from one power cord
  • Ultra-flat surface installation
  • Simple, cut and drop-in installation
  • Brushed aluminum finish
  • GFCI plug for added safety
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: TNP358S Category:

  TNP358S Overview



The TNP358S is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system.

  Summary

The TNP358S is a compact interconnect solution designed for mounting into tables, podiums, or other furniture. HDMI, audio, power and USB connections are accessed by pushing down on the top cover, allowing the unit to tilt open.

The connectors are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays virtually flush with the tabletop. This tabletop solution offers HDMI, audio and dual AC sockets along with 2 USB ports that can deliver up to 3A of charging power. The USB charger has a green LED to indicate power availability.

The TNP358S was specifically designed for devices requiring a charging USB port. A single input power cable delivers power to both outlets and features a GFCI plug for added safety. The TNP358 is one of many solutions available in the TNP product line that can be customized with additional connectivity options.

The quality and features of the TNP358S include: 12-amp power outlet, 3 amps combined USB charger, UL listing, a GFCI plug and a smooth precision lifting design and easy installation.

Tabletop solutions purchased from Altinex assure rock-solid performance, the highest level of quality, and the most compact design on the market. We were the first in the world to introduce tabletop solutions to the Audio Visual industry 14 years ago and today, our products are still in the field performing like new.

The next time you need to spruce up your customer’s boardroom or university classroom, look no further than Altinex.

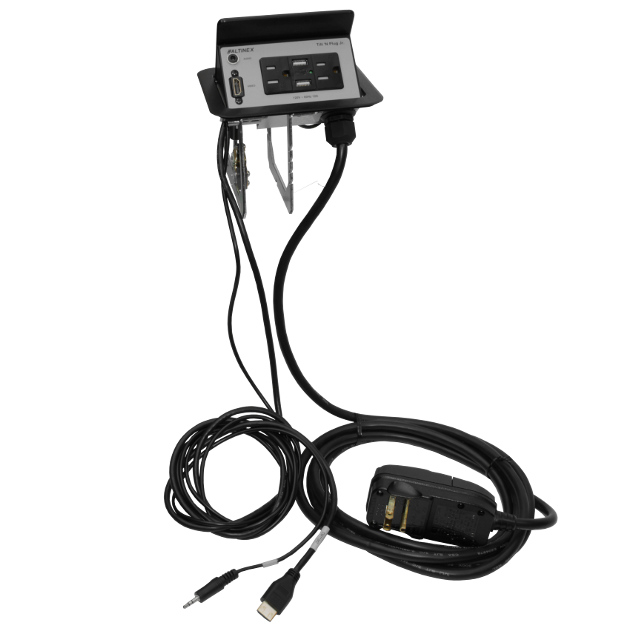

tnp358-cables

  Technical Specifications

Table 1 TNP358S General Specifications

Features/Description (TNP358S)

General Outputs

USB Charging

USB 2.0 Type A F (2)

Pass-Through Video6 ft. (2 m)
Video (HDMI)HDMI F-M (1)
Computer Audio3.5mm F-M (1)
Pass-Through AC Power9ft. (3.0 m)
120 VAC, 60 Hz, 12ANEMA Socket-Plug (2)
GFCI Plug Type2-Pole, 3 Wire Grounded

Agency Approvals

UL ListedFile E254082

Accessories Included

Hardware-Mounting screws/wing nuts
-Brackets
-Cable clamps/screws

Table 2 TNP358S Mechanical Specifications

Mechanical (TNP358S)

Max. Table Thickness

2.25 in (57 mm)

Height, opened5.88 in (149 mm)
Height, closed3.80 in (97 mm)
Width5.7 in (145 mm)
Depth5.2 in (132 mm)
FinishPolished Chrome
Weight (approx.)2.75 lb. (1.25 kg)
Shipping Weight5.5 lb. (2.5 kg)
T° Operating10°C - 35°C
T° Maximum40°C
Humidity90% non-condensing

Table 3 TNP358S Electrical Specifications

Electrical (TNP358S)

Power Rating
(pass-through AC power)

120VAC, 60 Hz, 12A

Power Rating
(USB 2.0 charging port)
5VDC, 3A total
Ground Fault Trip Current6mA max

HDMI, the HDMI Logo, and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
