TNP461

Tilt-N-Plug Jr. – Tabletop Interconnect Box (India)

  • Semi-compact enclosure
  • Mounts into tabletop
  • Offers single input plate
  • Opens/closes by pressing on top cover
  • India-compatible power connectors
  • All signals pass through to the underside of the table
  • Available as customizable through TNP461C
  • As seen in the Altinex Table Top Interconnect Guide
  • Ten year warranty
SKU: TNP461 Categories: ,

  TNP461 Overview

The TNP461 belongs to the family of International Tilt ‘N Plug Jr. series with pass-through connectors and a power socket for systems in India. It is a compact interconnection solution designed for installation into a table as part of a presentation system.

  Summary

This Tilt ‘N Plug Jr. is designed for installation into a table presentation system, providing access to audio, network, USB, video (VGA and HDMI), and AC power connections when needed, and stores them neatly when not needed.

The input plate on the TNP461 is accessed by pushing down on the top panel, releasing the pneumatic spring inside, tilting the input plate into view. Once opened, the input plate remains securely in place. Pressing down on the top panel closes the lid, allowing the top panel to lie flush with the tabletop.

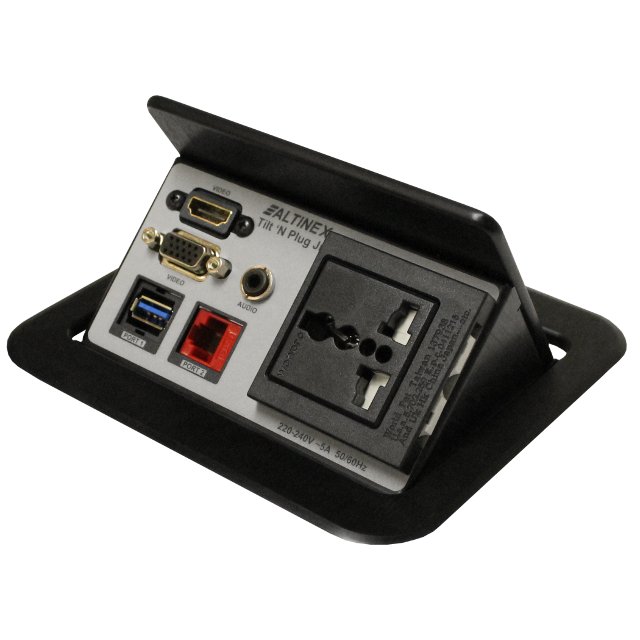

The TNP461 provides a single input plate with Computer Video (15-pin HD), Computer Audio (3.5 mm Stereo jack), Network (RJ45), HDMI, and USB input connections, as well as an AC power connection suitable for use in India. The unit can also be customized with different connections and colors. To do so, please refer to the TNP461C.

The network signals are passed through the unit with connection to the network system being made under the table. No signal processing or buffering takes place.

  Technical Specifications

FEATURES/DESCRIPTION (TNP461)

General

Audio/Video/Communication

6 ft. (2 m)

Video, VGA15-pin HD F-M (1)
Video, HDMIHDMI F-M (1)
Computer Audio3.5mm F-M (1)
CAT-6 NetworkRJ-45 F-M (1)
USBUSB Type A F-M (1)
Pass-Through AC Power1.5 ft.(0.46m)

AC Power

User Side
Supply Side
Universal Receptacle
IEC 60320 C14 (male)

Accessories Included

Hardware-Mounting screws/brackets
-Cable clamps/screws

Mechanical (TNP461 Description)

Max. Table Thickness2.25 in (57 mm)
Width5.7 in (145 mm)
Height, opened (above table)2.5 in (64 mm)
Height, below table3.9 in (99 mm)
Depth5.2 in (132 mm)
FinishMatte Black
Net Weight (approx.)3.2 lb (1.5 kg)
Shipping Weight3.7 lb (1.7 kg)
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Electrical (TNP461 Description)

Power Rating (pass-through AC power)220-240VAC, 50/60Hz, 5 A maximum
