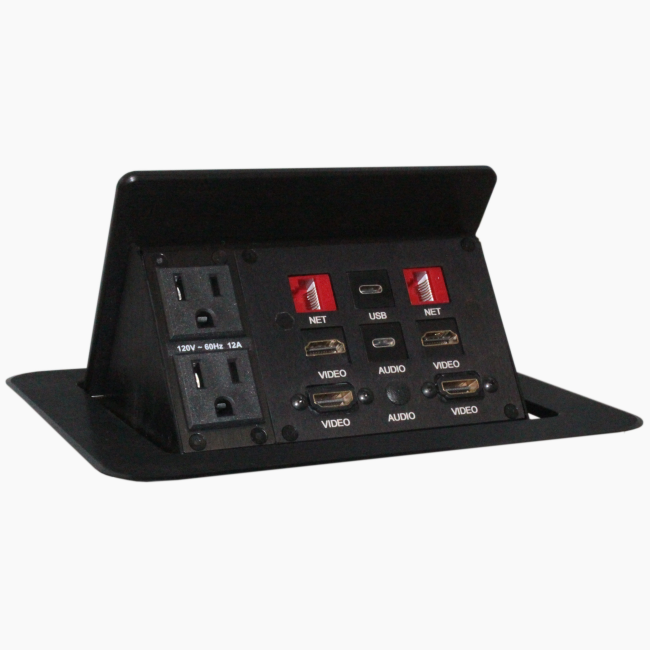

TNP528C

FACTORY CONFIGURED, CUSTOMIZED TILT ‘N PLUG

  • Fully customizable with your choice of keystone snap-in connectors
  • Leaf-spring for long service life
  • 12 Amp AC sockets
  • Pop-up dampening for smooth operation
  • Simple, drop-in installation
  • Standard high-quality matte black finish
  • UL / cUL listed
  • UL listed for installation in kitchens, bathrooms and countertops (US only)
  • 8-10 day lead time (5 pieces or less)
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty available
SKU: TNP528C Categories: ,

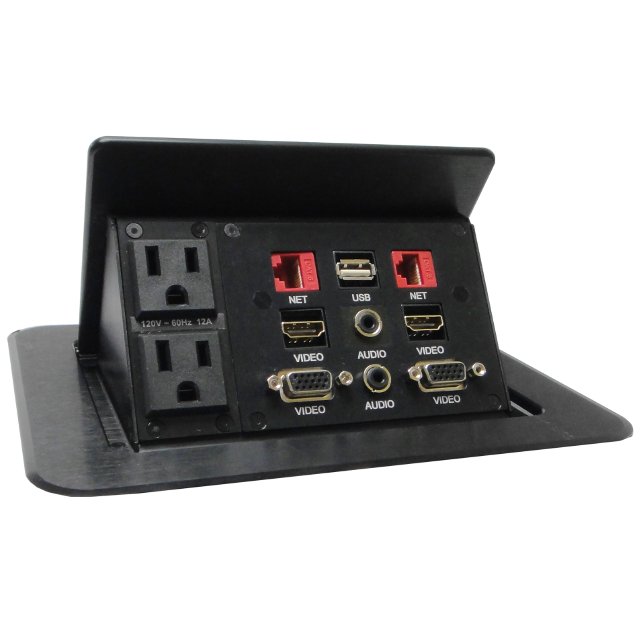

  TNP528C Overview

The TNP528C is a customizable, compact hybrid interconnect solution with Digital (HDMI) and Analog (VGA) interconnects, along with network and USB connectors designed for mounting into tables, podiums, or other furniture as part of a presentation system.

  Summary

The TNP528C is a compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover allowing the units to “tilt” open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop.

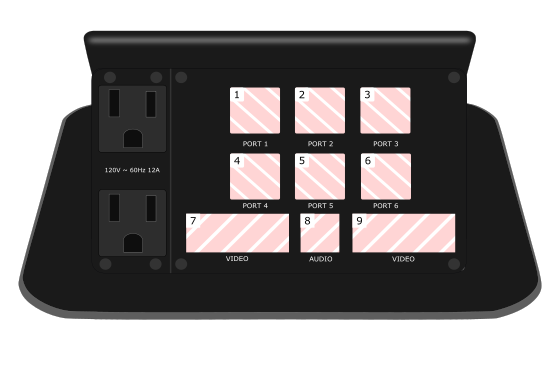

The TNP528C is a “hybrid package” that offers the following connectivity:

2pcs. – U.S. power receptacles (12 Amps)
2pcs. – D-Sub connectors
6pcs. – Snap-in connectors
1pc. – Audio (3.5 mm)

The TNP528C is one of many solutions available in the TNP product line that can be customized with many different connectivity options by selecting the “Customize” button above.

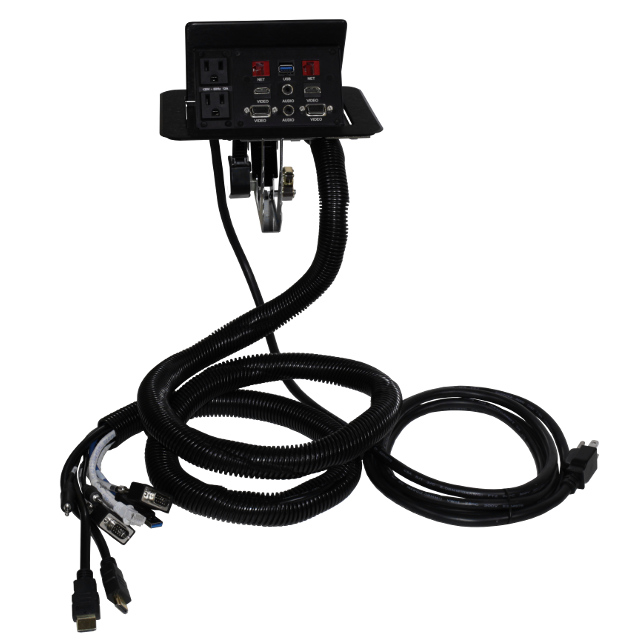

All connectors are passive and have 6 ft. (2 m) cables that pass through to the bottom of the unit.

tnp528-cables

ALTINEX products are protected by the following patents: 6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819



  Technical Specifications

FEATURES/DESCRIPTION

TNP520

Pass-Through AC Power

9-10 ft. (2.7-3.0 m)

110 VAC, 60 Hz, 5 ANEMA F-M

Agency Approval

UL/C-UL ListedFile E254082

TNP528C

Audio, Video, Communication6 ft. (2m)
Computer Video15-pin HD F-M (2)
Computer Audio3.5mm F-M (2)
HDMIHDMI F-M (2)
NetworkCAT-6 (RJ-45) F-M (2)
USBType A F-M (1)
Pass-Through AC Power9-10 ft. (2.7-3.0 m)
110 VAC, 60 Hz, 5 ANEMA F-M

Agency Approval

UL/C-UL ListedFile E254082

TNP520/528 Models

Accessories Included

Hardware-Mounting screws/brackets
-Cable clamps/screws
-Fastener Tool

Mechanical (TNP520/528)

Max. Table Thickness2.50 in (64 mm)
Height, opened5.50 in (140 mm)
Width7.86 in (220 mm)
Depth6.53 in (166 mm)
Finish

TNP520/TNP528
TNP520S/TNP528S


Matte Black
Brushed Aluminum
Weight (approx.)

TNP520(S)
TNP528(S)


2.85 lb. (1.29 kg)
4.61 lb. (2.09 kg)
Shipping Weight5.51 lb (2.50 kg)
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Electrical (Single Outlet Panel) for TNP520/528

Power Rating (pass-through AC power)120VAC, 60Hz, 12A total current
