TNP530C
TILT ’N PLUG, 2 POWER, 4 SNAP-IN CONNECTORS, 2 RETRACTABLE CABLES (CUSTOMIZABLE)
- Leaf-spring for long service life (10 years warranty)
- 2 AC sockets, 12 Amp
- Pop-up dampening for smooth operation
- Simple, drop-in installation

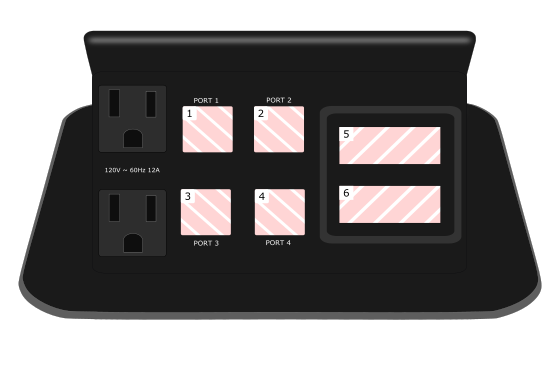

- Includes customizable SP1105SC face plate designed with four (4) empty snap-in ports and space for two (2) retractable cables
- Includes convenient, easy to install cable retractors (unassembled)
- Standard high-quality black matte finish
- UL/cUL listed
- Fully customizable
- UL listed for installation in kitchens, bathrooms and countertops (US only)
- 8-10 day lead time (5 pieces or less)
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- The price of the unit includes all connectors
- Ten year warranty available
TNP530C Overview

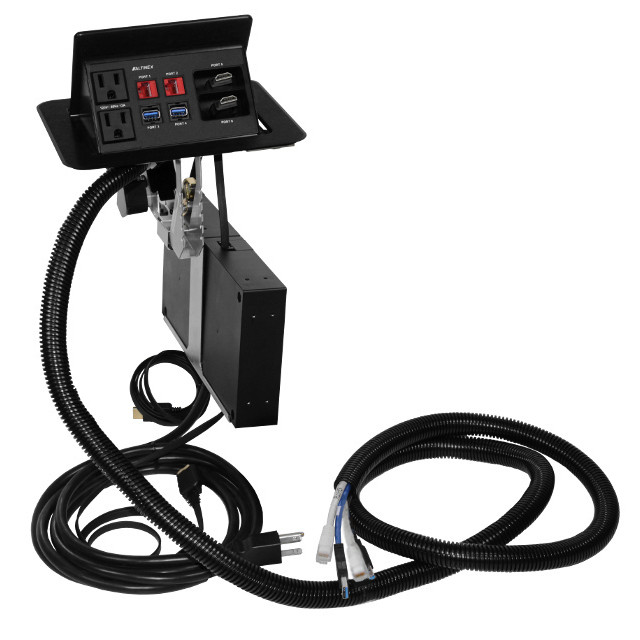

The TNP530C is a customizable, compact hybrid interconnect solution with retractable cables, along with snap-in ports for audio, network, and USB connectors. It is designed for mounting into tables, podiums, or other furniture as part of a presentation system.
Summary
The TNP530C is a fully customizable compact interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. Inputs are accessed by pushing down on the top cover allowing TNP530C to “tilt” open. The inputs are hidden by pressing down on the top cover until the latching mechanism engages. In the closed position, the top cover lays almost flush with the tabletop.
The TNP530C is a customizable unit that comes with the following features:
- 2 U.S. power receptacles (12 Amps)
- SP1105SC face plate with ports for 4 snap-in connectors
and space for 2 retractable cables
All connectors are passive and have 6 ft. (2m) cables that pass through to the bottom of unit. HDMI and VGA retracts offers 4 ft. of retract cable and 4 ft. fixed under table cable.
Videos
Technical Specifications
FEATURES/DESCRIPTION |
|
|---|---|
TNP530 |
Audio, Communication |
6 ft. (2 m) |
| Computer Audio | 3.5mm F-M (1) |
| Network | CAT-6 (RJ-45) F-M (1) |
| USB | Type A F-M (2) |
| Video | 4ft. (1.2m) retract above table 4ft. (1.2m) fixed cable under table |
| Video (HDMI) | HDMI M-M (1) |
| Pass-Through AC Power | 9-10 ft. (2.7-3.0 m) |
| 120 VAC, 60 Hz, 12 A | NEMA F-M | Agency Approval |
| UL/C-UL Listed | File E254082 | TNP530 |
Accessories Included |
| Hardware | -Mounting screws/brackets -Cable clamps/screws -Fastener Tool -Retracts mounting/screws |
Mechanical (TNP530/528) |
|
| Max. Table Thickness | 2.50 in (64 mm) |
| Height, opened | 12.5 in (318 mm) |
| Width | 9.7 in (246 mm) |
| Depth | 6.53 in (166 mm) |
| Finish | Matte Black |
| Weight (approx.) | 5.1 lb. (2.31 kg) |
| Shipping Weight | |
| T° Operating | 10°C-35°C |
| T° Maximum | 40°C |
| Humidity | 90% non-condensing | Electrical for TNP530C |
| Power Rating (pass-through AC power) | 120VAC, 60Hz, 12A total current |
