TNP602C

TILT ‘N PLUG TABLETOP INTERCONNECT BOX WITH A CUSTOMIZABLE PLATE

  • High density connectivity
  • Gas-spring technology provides smooth open and close
  • Craftsman-milled edges create ultra-flat surface when closed
  • Ships with 6 ft pre-terminated cables for quick installation
  • 8-10 day lead time (5 pieces or less)
  • Not for sale in Canada
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty available

SKU: TNP602 Category:

  TNP602 Overview

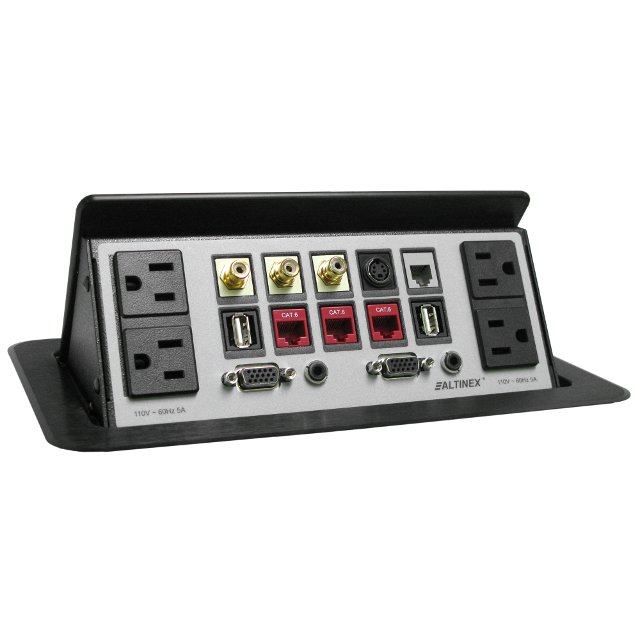

The TNP602C is an interconnect solution designed for mounting into tables, podiums, or other furniture as part of a presentation system. The inputs are accessed by pushing down on the top cover, allowing the units to “tilt” open.

  Summary

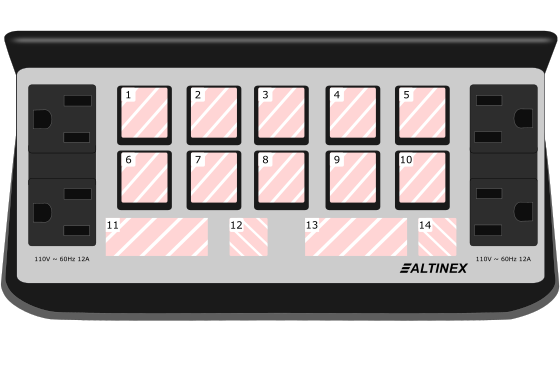

The TNP602C is a “package” of parts that covers the basic needs of many Tilt ‘N Plug users. When this item is ordered, it ships as a completely assembled product made up of one TNP601 and one sectional plate that is customized with the user’s preferred snap-in and D-Sub connectors.

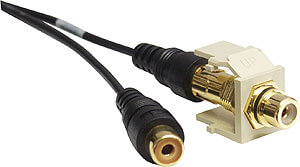

The plate includes the following connectors: 4ea standard U.S. power receptacles, 1ea composite video (RCA F/F), 1ea left audio (RCA F/F), 1ea right audio (RCA F/F), 1ea S-video (4-pin Mini-Din F/M), 1ea telephone (RJ11 F/M), 3ea network (RJ45 F/M), 2ea computer/MP3 audio (3.5 mm F/M), 2 VGA computer video (15-pin HD F/M), and 2ea control (USB F/M). All connectors have 6 foot cables attached that feed through to the bottom of the unit. The power cable is 10 ft long.

The TNP602C is one of many solutions available in the TNP product line that can be customized with many different connectivity options by selecting the “Customize” button above.

The network signals are passed through the unit with connection to the network system being made under the table. No signal processing or buffering takes place.

  Technical Specifications

TNP600

ELECTRICAL

Empty enclosure. Sold separately to support third-party plate configurations.Pass-Through Signals: All standard audio, video, network, and modem signals are acceptable
Power Rating (pass-through AC power): 600W maximum

GENERAL

ACCESSORIES

AC Power: 110 VAC NEMA F-M (4 F to 1 M)Included: Mounting screws, cable clamps
Computer Video: (2) 15-pin HD F-M
Computer Audio: (2) 3.5mm F-M
Network: (3) RJ-45 F-M
Modem: (1) RJ-11 F-M
S-Video: (1) 4-pin Mini DIN F-M
Composite Video: (1) Yellow RCA F-F
Computer Accessories: (2) USB Type A F-M
Audio Left Channel: (1) Red RCA F-F
Audio Right Channel: (1) Black RCA F-F

MECHANICAL

WARRANTY

AC Power Cord: 10ft (3m) 3 year warranty
Audio, Video, and Communication: 6ft (2m)1 year warranty on gas spring
Max. Table Thickness: 2.5in (64mm)
Height, opened: 7.25in (184mm)
Height (above table): 3.23 in (82 mm)
Height (below table): 4.02in (102 mm)
Width: 9.96in (253mm)
Depth: 6.53in (166mm)
Finish: Matte Black (default)
T° Operating: 10°C-35°C
T° Maximum: 40°C
Humidity: 90% non-condensing
