UT240-121S

UNDER TABLE ANALOG AV INTERCONNECT UNIT

  • Easily installs under a table or inside a podium
  • Convenient access to power, AV and network connectors
  • Wide range of snap-in connectors available
  • Table cutting is not required
  • Low profile design
  • UL listed
  • Replaces UT240-278
  • Identical connectivity to the Tilt ‘n Plug TNP121 in an Under Table format
  • 12 Amp current capability
  • As seen in the Altinex Table Top Interconnect Guide
  • Ten year warranty
SKU: UT240-121S Category:

  UT240-121S Overview

The UT240-121S is a next generation under table interconnect unit providing users with traditional analog connections to AV equipment and a 12 amp power socket that can be used to power multiple laptops or other devices.

  Summary

The UT240-121S is an under table multimedia interconnect unit designed for mounting against a surface, usually under a table or inside a podium.

The front of the UT240-121S offers the following pass-through connectors:

  • Standard AC receptacle (12amp)
  • VGA (HD15) Computer Video
  • 3.5mm Audio Jack for Computer/MP3 Audio
  • Network (RJ45) snap-in connector
  • Telephone (RJ11) snap-in connector
  • 3 additional (blanked out) snap in locations. A wide range of snap in connectors are available from Altinex.

The Under Table series from ALTINEX offer a wide variety of options for routing computer audiovisual signals, network connections, and AC power in a cost-effective way. They are easily installed under a table, inside a lectern or on the side of a lectern or a table leg. For a simple and cost effective installation, we offer the UT Series from Altinex provides for its unparalleled ease of use and flexibility.

ALTINEX products are protected by the following patents: D581871, D581361, D580865, D579875, D579874, D583762, D579873, D580358, D585379, D581360, D579415, D579872, D581359, D580357

  Technical Specifications

Features/Description

UT240-300 Series

Pass-Through (front to back)

AC PowerNEMA Receptacle to plug
9-10 ft. (2.7-3.0 m) cord
Audio, Stereo Cable3.5 mm F-F
8 in (200 mm) cable
Audio, Stereo TB3.5 mm F to Term Block
Audio, Stereo RCARCA bulkhead F-F
Network (CAT-6)Snap-in RJ-45 connector (no cable)
Modem/phoneSnap-in RJ-11 connector (no cable)
Video, Analog15-pin HD bulkhead F-F
Video, Digital19-pin HDMI bulkhead, F-F
VideoBNC bulkhead F-F
CommunicationUSB Type A F-F
UT240-121S (U.S.)

CAT-6 (RJ-45) F (1)
Modem (RJ-11) F (1)
AC Power (1)
15-pin HD F-F (1)
3.5mm F to Term Block (1)

Mechanical

UT240-300 Series

DimensionsSee Application Diagrams
Maximum Shipping Weight3.5 lb. (1.6 kg)
T° Operating [T° Maximum]10°C-35°C [50°C]
Humidity90% non-condensing

Electrical

UT240-300 Series

Pass-Through SignalsAll standard audio, video, network,
and modern signals are acceptable
Pass-Through AC12 A, 1440 W max.
(total through all receptacles)

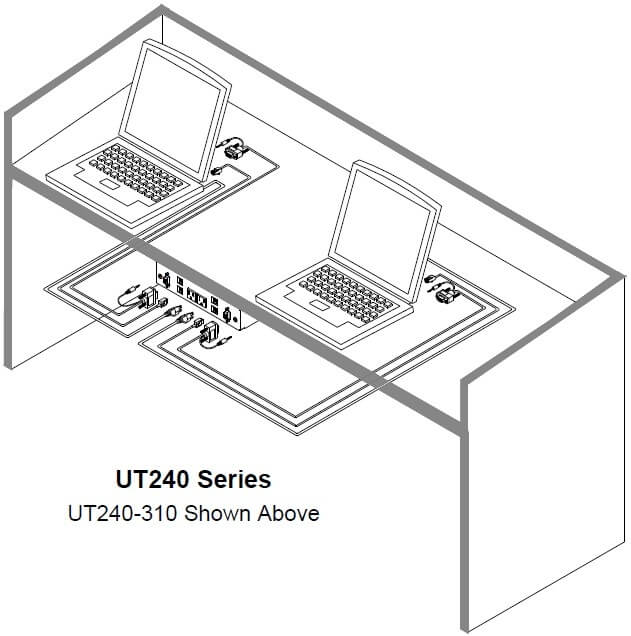

  Application Diagram

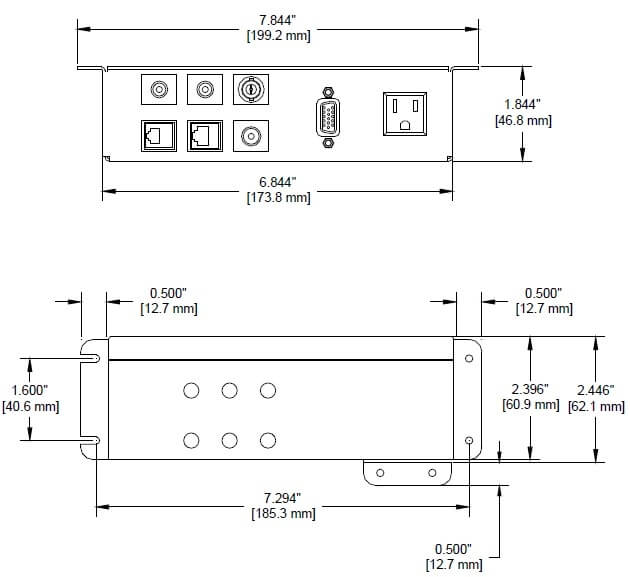

  Dimensions
