SP3504SC

STANDARD CONFIGURATION PLATE FOR CNK210 / CNK220

  • Compatible with CNK200 / CNK200S / CNK202 / CNK202S  series. Included with CNK210 / 210S / 220 / 220S
  • Retrofit into your existing Cable Nook (CNK200)
  • Comes standard with:
    • CNK-IP-200 UL/cUL listed power module
      • 12 Amp AC capacity
      • Two USB ports 3 Amps total, 5VDC, Type A, 2.0
      • 9.5 ft. (2.9 m) power cable terminated with a single male plug
    • CNK-IP-212 Hybrid HDMI/VGA & Audio Plate
    • CNK-IP-211 6-Port Snap-In Plate (wide range of snap-in connectors available)
    • SN1318-RJ45-B RJ45 Network Barrels (2)
    • CM11301 Blank Black Snap-in Connectors
  • Black finish
  • Refer to SP1104SC for customizable options
SKU: SP3504SC Category:

  SP3504SC Overview

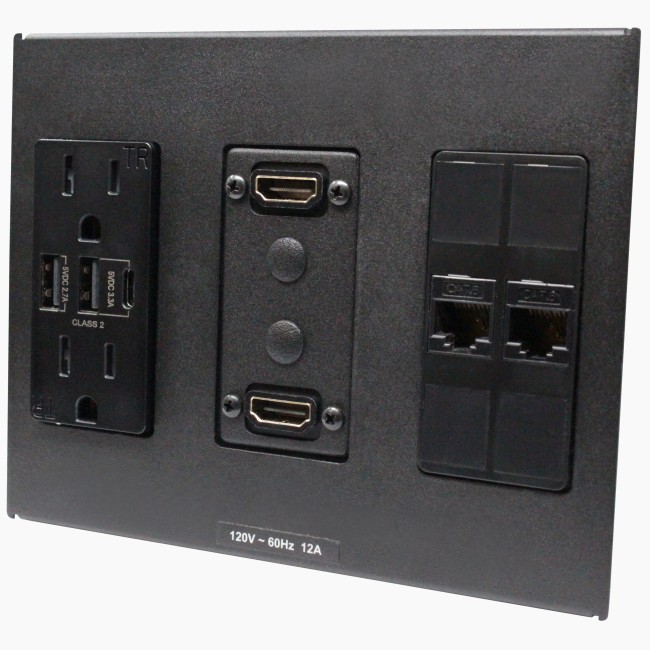

The SP3504SC is a pre-configured faceplate for the CNK200 / CNK200S / CNK202 / CNK202S series.

  Summary

The SP3504SC is the standard configuration plate for the CNK210 / CNK210S / CNK220 / CNK220S

It includes the CNK-IP-210 Faceplate with a factory configuration:

  1. CNK-IP-200 Single Gang Dual Power, Dual USB Plate
  2. CNK-IP-212 Hybrid HDMI/VGA & Audio Plate
  3. CNK-IP-211 6-port Snap In Plate
  4. SN1318-RJ45-B Black RJ-45 F/F Snap-In Connector (2pcs) installed into the CNK-IP-211.

The SP3504SC provides safe AC power as well as charging USB for devices such as smartphones, tablets, mp3 players, iPods, and iPads. It also includes video and audio connectors for both VGA and HDMI video. Additionally, this plate has six blank snap‑in ports with 2pcs of black RJ45 F/F connectors (SN1318-RJ45-B) pre-populated, and 6pcs of blank snap-in connectors (CM11301) provided separately, or you can purchase variety of snap‑ins from Altinex.

The video, audio, and snap-in connectors are bulk‑head style connectors. The bottom (or inside) connectors connect to off‑the‑shelf cables which connect permanently to the presentation system. The SP3504SC is mounted directly to the CNK200 / CNK200S / CNK202 / CNK202S chassis without using slot rails that need to be removed.
