CNK260

CABLE-NOOK WITH US AC POWER AND RETAINING GROMMETS (BLACK)

  • Full size enclosure installs into tabletop
  • Convenient access to cable ends or fixed connectors
  • Simple, cost-effective interconnect solution
  • Allows 6 x ½” holes with nylon bushings
  • Includes plugs for unused holes.
  • UL/cUL listed CN5008US power module included
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout template available
  • Ten year warranty
SKU: CNK260 Category:

  CNK260 Overview

The CNK260 Cable Nook provides a simple yet effective way of hiding and storing multimedia cables and fixed connectors. The cables remain connected to a presentation system, enabling the user easy access to them and for connection to video, audio, and other media sources needed.

  Summary

The CNK260 is a package that covers the basic audiovisual needs of many Cable-Nook users as it supplies power receptacles and grommets to hold cable ends. Some assembly is required.

This product includes the CNK200 Cable-Nook, the CN5008US dual AC power insert plate, and CN5020RG set of retaining grommets.

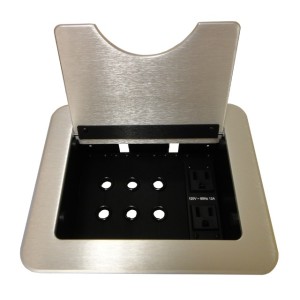

Also available in clear brushed (“Silver”) aluminum finish as the CNK260S.

Also available is our full range of retractable cables designed specifically for the Cable-Nook® and Cable-Nook Jr.®



ALTINEX products are protected by the following patent: D465201

  Technical Specifications

Table 1: CNK260 General

Features/Description

CNK260

Inputs

Video/AudioN/A

Outputs

Video/AudioN/A

Compatibility

Cable Nook Standard and
Customizable Plates
CN5000 Series,
CNK-IP-200 Series
Snap-In ConnectorsAll ALTINEX Snap-In
Connectors

Accessories Included

Mounting HardwareThumb Screws (2),
Mounting Brackets (2)

Table 2: CNK260 Mechanical

Mechanical

CNK260

Hole Sets23
Minimum Table Thickness0.5 in (13 mm)
Maximum Table Thickness3.5 in (89 mm)

Housing Dimensions

Height4.7 in (119 mm)
Width6.0 in (153 mm)
Depth4.7 in (119 mm)

Bezel Dimensions (surface)

Width7.9 in (200 mm)
Depth6.5 in (166 mm)
ColorBlack
MaterialAluminum
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (calculations)40,000 hrs (min.)

  Related Products

CNK Optional Accessories

The Cable-Nook has 23 slots in the installed bracket/plate shelf. Order up to the number of accessories as can be accommodated by the 23-slot shelf.

Each accessory comes with its own retaining screws.

CN5008US

Two standard AC power outlets for U.S. , Canada , Mexico , and Japan . Comes with 6 ft/1.8 m cable terminated with a single male plug. Covers 6 slots.

CN5003UK

One AC power outlet for usage in U.K, Singapore , and Hong Kong . Comes with 6 ft/1.8 m cable terminated with a male plug. Covers 11 slots..

CN5005EU

One AC power outlet for usage in Continental Europe, including Germany, France, Italy, Spain, et. al. Comes with 6 ft/1.8 m cable terminated with a male plug. Covers 11 slots.

CNK-IP-101

Insert plate with 6 empty ports for Snap-in Connectors . Covers 8 slots. See Snap-In Cables page.

CN5013EP_full_small

CN5013EP

Insert plate with three empty snap-in ports. Covers 4 slots. See Snap-In Cables page.

CN5014AV

Insert plate with 15-pin HD female and 3.5 mm female connectors. Includes 6 ft/1.8 m cable with male ends. Covers 4 slots.

CN5015AV

Insert plate with Digital video (HDMI F) and 3.5 mm female connectors. Includes 6 ft/1.8 m cable with male ends. Covers 4 slots.

CN5010RB

These brackets can be added to the Cable-Nook, and adjusted to catch cable ends of varying widths. The shelf itself can be adjusted to different depths inside the box. Comes with 5 brackets and 10 retaining screws. Each bracket covers 1 slot.

CN5020RG

These grommet plates are designed to provide easy cable retention within the Cable Nook. Contains 4 plates with retaining bushings and caps for 6 openings, along with screws for installation into the Cable Nook unit.

CN5021RG

These grommets are designed for use with dual (2) International Power Supplies and provide easy cable retention within the Cable Nook. Contains 2 plates with retaining bushings for 3 openings, and screws for connection into the Cable Nook unit.

CNK200

Empty Cable Nook. 23 Slots.

CNK200S

Identical to the CNK200 but with a clear brushed (“Silver”) finish for the bezel.

CNK210

CNK210

Pre-configured CNK200 Cable-Nook with  SP3504SC Decora Insert plate. Dual US AC power, Dual charging 5VDC USB Ports (3 Amps total), HDMI, VGA & Audio and 2 RJ45 Network port pass thru connectors with 4 empty snap in ports to use any of our CM series snap-in assemblies.

CNK240

Pre-configured CNK200 Cable-Nook with US Power module (CN5008US) and Retaining Brackets (CN5010RB).

CNK240S

Pre-configured CNK200S Cable-Nook with US Power module (CN5008US) and Retaining Brackets (CN5010RB).

CNK260S

Pre-configured CNK200S Cable-Nook with US Power module (CN5008US) and Retaining Grommets (CN5020RG).
