TB100-001

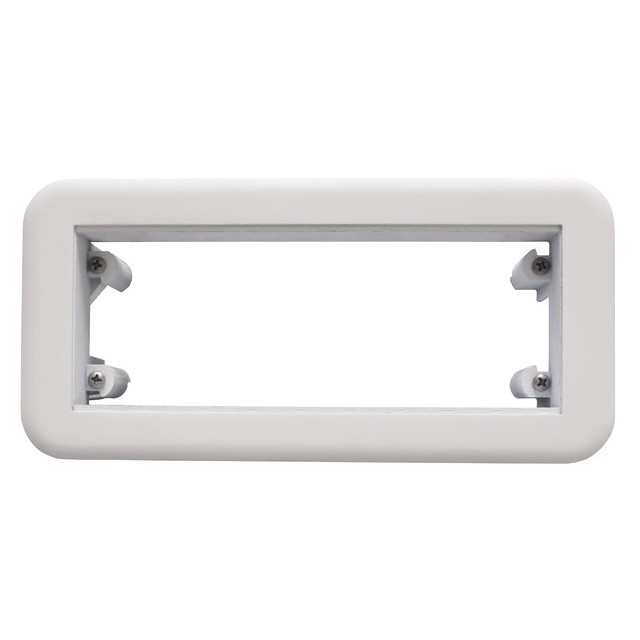

MODULAR UNIT FRAME – WHITE

  • Configurable with any Table Buddy snap-in modules and connectors
  • Simple, cost-effective interconnect solution
  • Installs into tabletop
  • Designed with dual locks that easily secures the unit to the surface without any tooling
  • Convenient access to connect cables via snap-in modules
  • Pre-configured unit available as TB100-101
  • Also available in Black and Silver
  • Downloadable cutout template available



https://youtu.be/MV41Fruiduk

SKU: TB100-001 Category:

  TB100-001 Overview

The TB100-001 is a modular unit frame that is configurable with various Table Buddy snap-in modules and connectors. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.



  Summary

The TB100-001 is a modular unit frame that can be configured with various Table Buddy snap-in modules and connectors. It is designed for use with tables ranging from 0.75 inch to 1.6 inch in thickness. The TB100-001 comes in a standard matte white frame, while other finishes are also available: Standard silver matte color (TB100-002) and standard matte black (TB100-003).

The snap-in module options for the TB100-001 allow diverse connector configurations. These modules include combinations of audio, video, computer, and AC power connectors that provide extensive flexibility in a convenient package. The snap-in modules are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.

The TB100-001 is configurable with any Table Buddy snap-in modules and connectors as shown:

  Technical Specifications

Table 1 TB100-101 General Specifications

FEATURES/DESCRIPTION - TABLE BUDDY

TB100-101

Pass-Through

Number of slotsDepends on customer configuration

Compatibility*

AC Power (United States)TB110-X01
AC Power (International)TB110-X02
Audio, VideoTB120-102, TB120-103
Blank Slot CoversTB130-101, TB130-102 and TB130-103
CustomizableTB120-X01, TB120-X04

Accessories Included

Mounting HardwareMounting brackets two types
(4pcs of each)
#8-1-1/2 Screws (4pcs)

Table 2 TB100-101 Mechanical Specifications

MECHANICAL

TB100-101

Max Table Thickness2 in (50 mm)
Length9.5 in (241 mm)
Width4.1 in (104 mm)
Depth below the table2.3 in (59 mm)
MaterialPlastic
TB100 Weight (approx.)0.23 lb. (0.1 kg)
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (calc.)40,000 hrs.

  Application Diagram

  Dimensions

Table Buddy dimensions

  Related Products

TB100-002 – MODULAR UNIT FRAME (SILVER)

TB100-003 – MODULAR UNIT FRAME (BLACK)

Pre-configured:

TB100-101 – PRE-CONFIGURED MODULAR UNIT (WHITE)

Power Supply:

TB110-101 – MODULAR U.S. POWER PLATE WITH CABLE (WHITE)

TB110-102 – MODULAR UNIVERSAL POWER SUPPLY (WHITE)

Sectional Plates:

TB120-101 – MODULAR DOUBLE SNAP-IN PLATE (WHITE)

TB120-102 – MODULAR DISPLAY PORT PLATE (WHITE)

TB120-103 – MODULAR VGA-AUDIO PLATE (WHITE)

TB120-104 – MODULAR RETRACTABLE CABLE PLATE (WHITE)

TB130-101 – MODULAR 1/4-INCH BLANK PLATE (WHITE)

TB130-102 – MODULAR 1/2-INCH BLANK PLATE (WHITE)

TB130-103 – MODULAR 1-INCH BLANK PLATE (WHITE)

Snap-in Couplers
