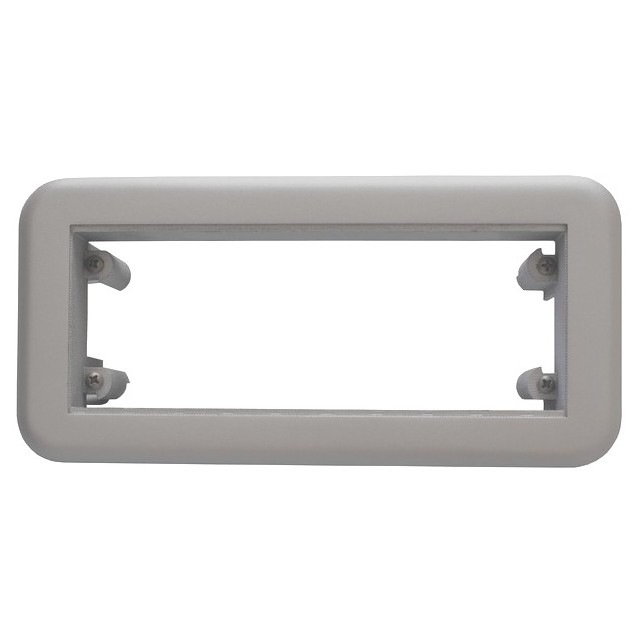

TB100-002

MODULAR UNIT FRAME – SILVER

  • Configurable with any Table Buddy snap-in modules and connectors
  • Simple, cost-effective interconnect solution
  • Installs into tabletop
  • Designed with dual locks that easily secures the unit to the surface without any tooling
  • Convenient access to connect cables via snap-in modules
  • Pre-configured unit available as TB100-201
  • Also available in Black and White
  • Downloadable cutout template available



https://youtu.be/MV41Fruiduk

SKU: TB100-002 Category:

  TB100-002 Overview

The TB100-002 is a modular unit frame that is configurable with various Table Buddy snap-in modules and connectors. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.

  Summary

The TB100-002 is a modular unit frame that can be configured with various Table Buddy snap-in modules and connectors. It is designed for use with tables ranging from 0.75 inch to 1.6 inch in thickness. The TB100-002 comes in a silver matte frame, while other finishes are also available: Standard white matte color (TB100-001) and standard matte black (TB100-003).

The snap-in module options for the TB100-002 allow diverse connector configurations. These modules include combinations of audio, video, computer, and AC power connectors that provide extensive flexibility in a convenient package. The snap-in modules are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.

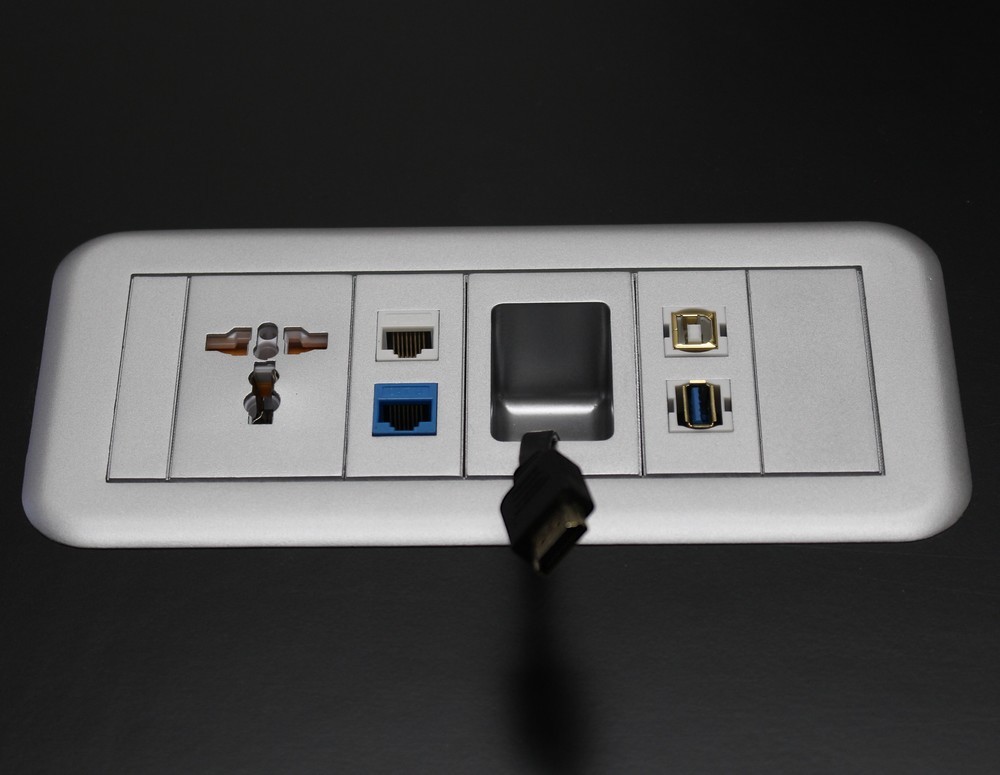

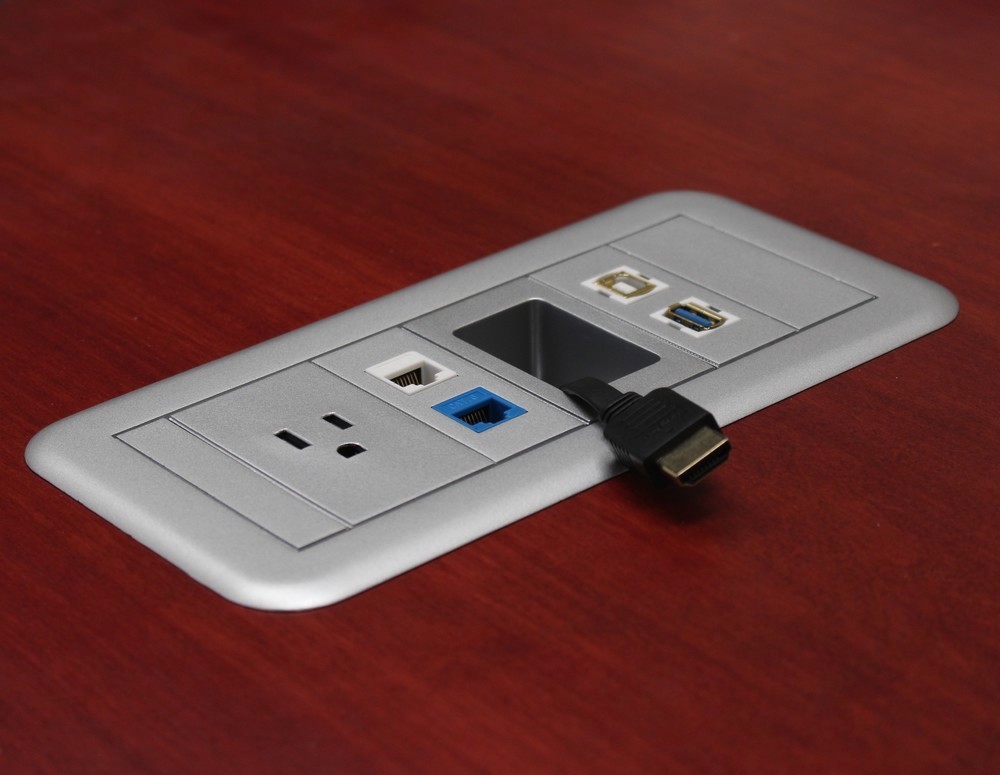

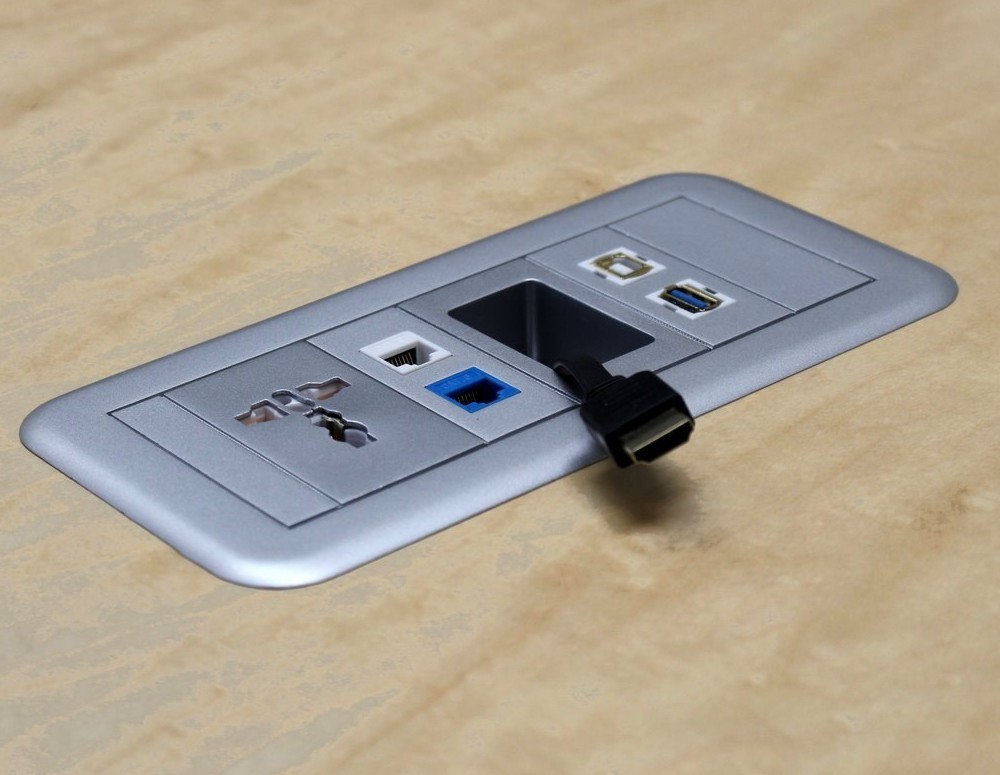

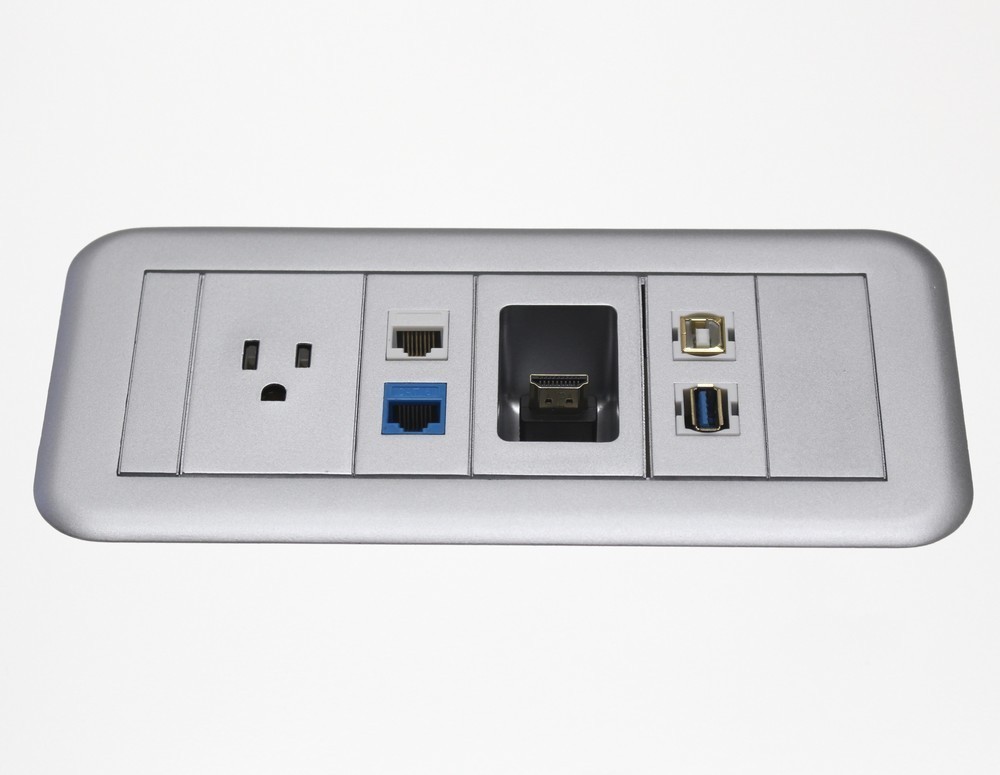

The TB100-002 is configurable with any Table Buddy snap-in modules and connectors as shown:

  Technical Specifications

Table 1 TB100-201 General Specifications

FEATURES/DESCRIPTION - TABLE BUDDY

TB100-201

Pass-Through

Number of slotsDepends on customer configuration

Compatibility*

AC Power (United States)TB110-X01
AC Power (International)TB110-X02
Audio, VideoTB120-202, TB120-203
Blank Slot CoversTB130-201, TB130-202 and TB130-203
CustomizableTB120-X01, TB120-X04

Accessories Included

Mounting HardwareMounting brackets two types
(4pcs of each)
#8-1-1/2 Screws (4pcs)

Table 2 TB100-201 Mechanical Specifications

MECHANICAL

TB100-201

Max Table Thickness2 in (50 mm)
Length9.5 in (241 mm)
Width4.1 in (104 mm)
Depth below the table2.3 in (59 mm)
MaterialPlastic
TB100 Weight (approx.)0.23 lb. (0.1 kg)
T° Operating10°C-35°C
T° Maximum50°C
Humidity90% non-condensing
MTBF (calc.)40,000 hrs.

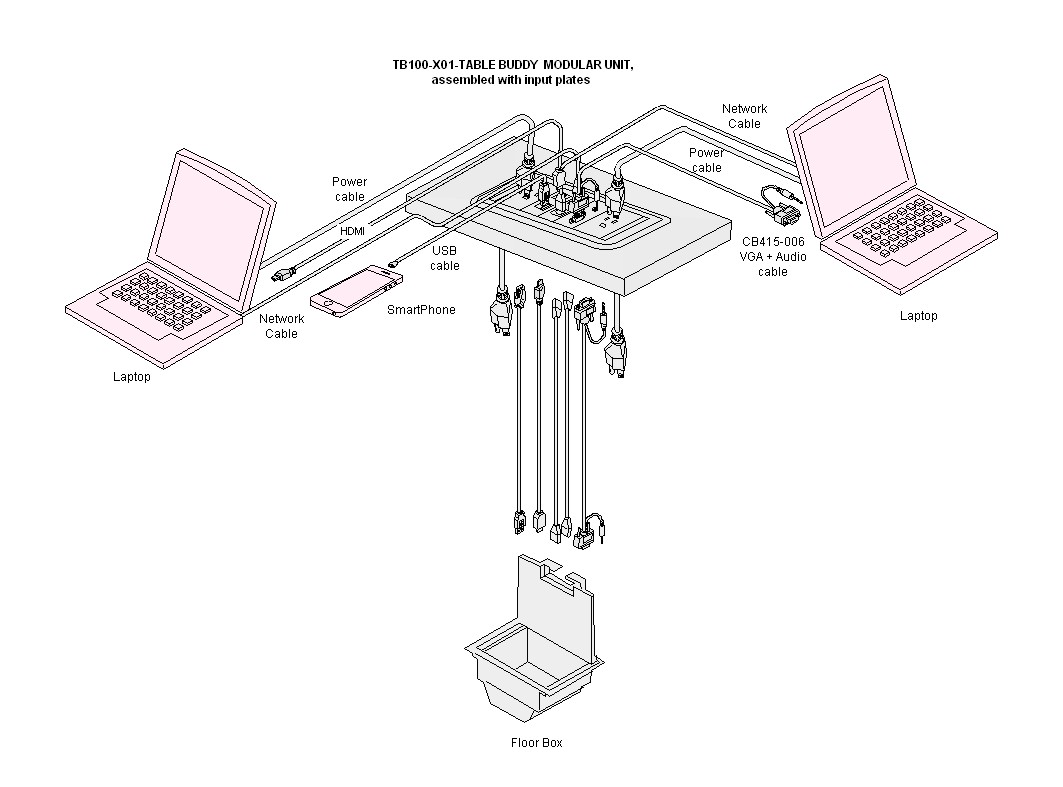

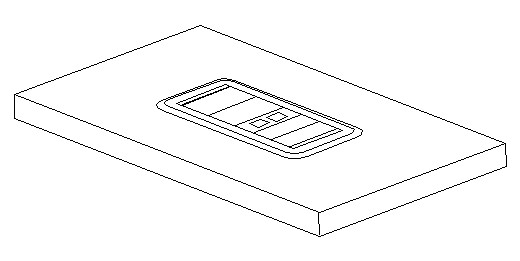

  Application Diagram

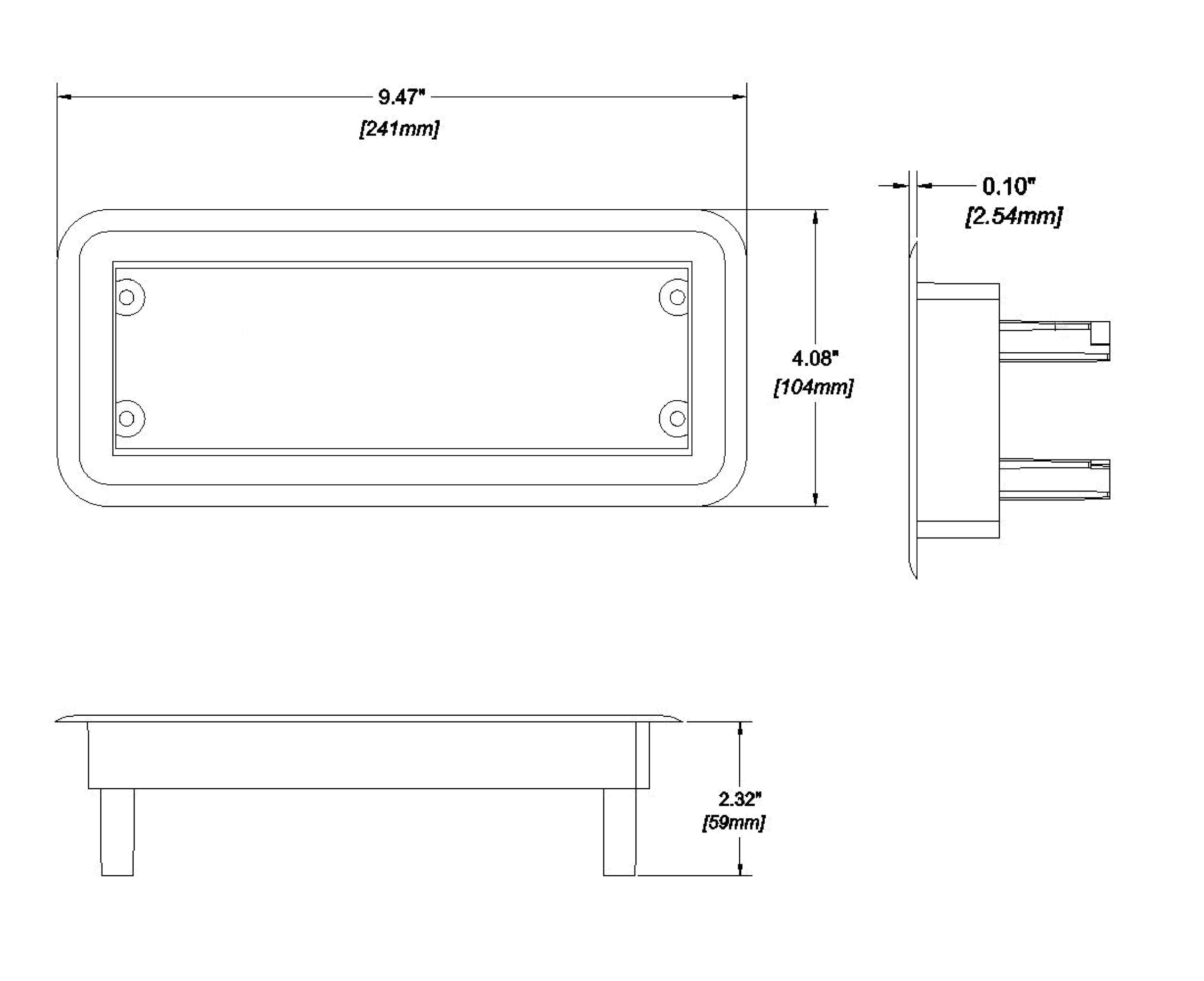

  Dimensions
