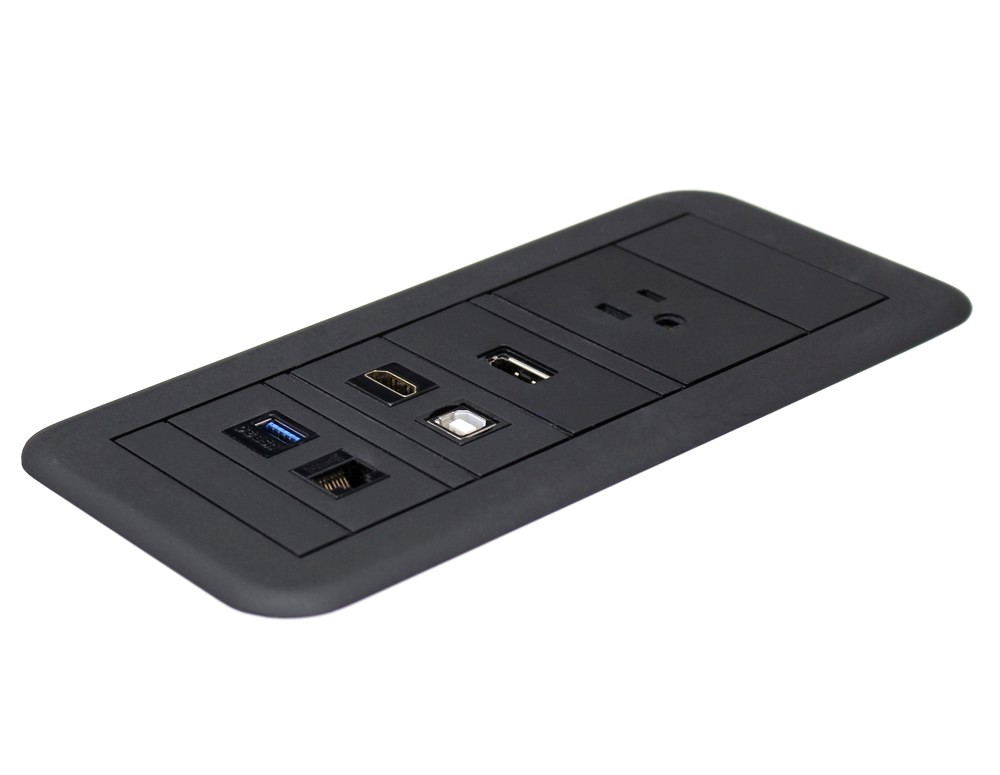

TB100-301C
CUSTOMIZABLE MODULAR UNIT – BLACK
- Customizable with any Table Buddy snap-in modules and connectors
- Price includes all connectors
- Simple, cost-effective interconnect solution

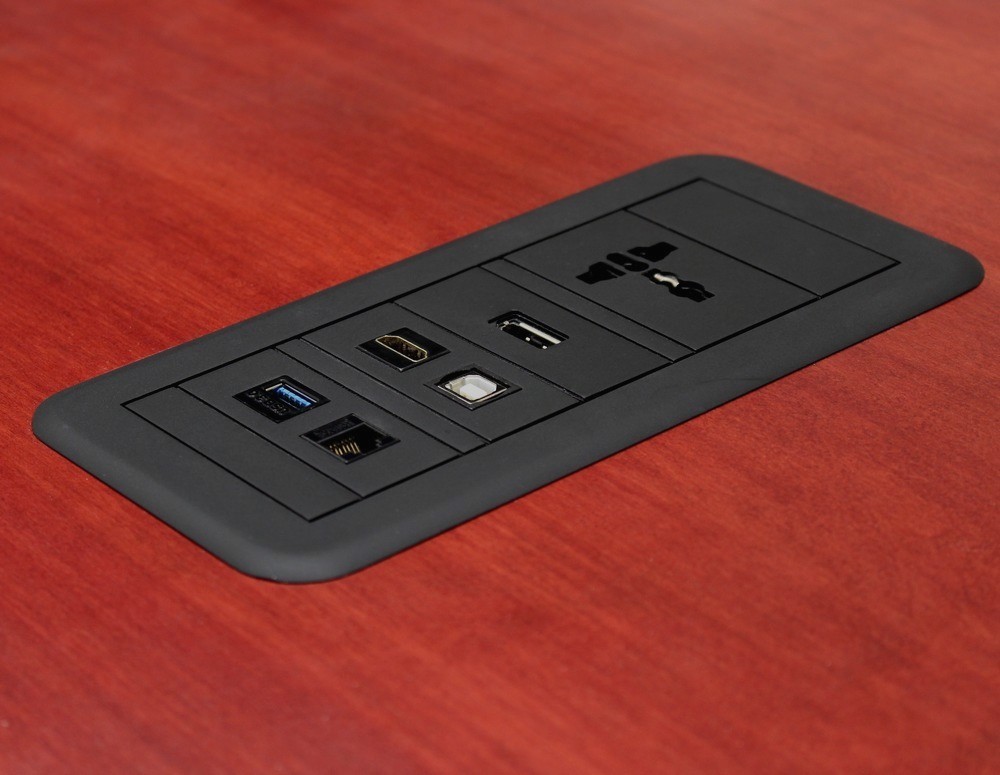

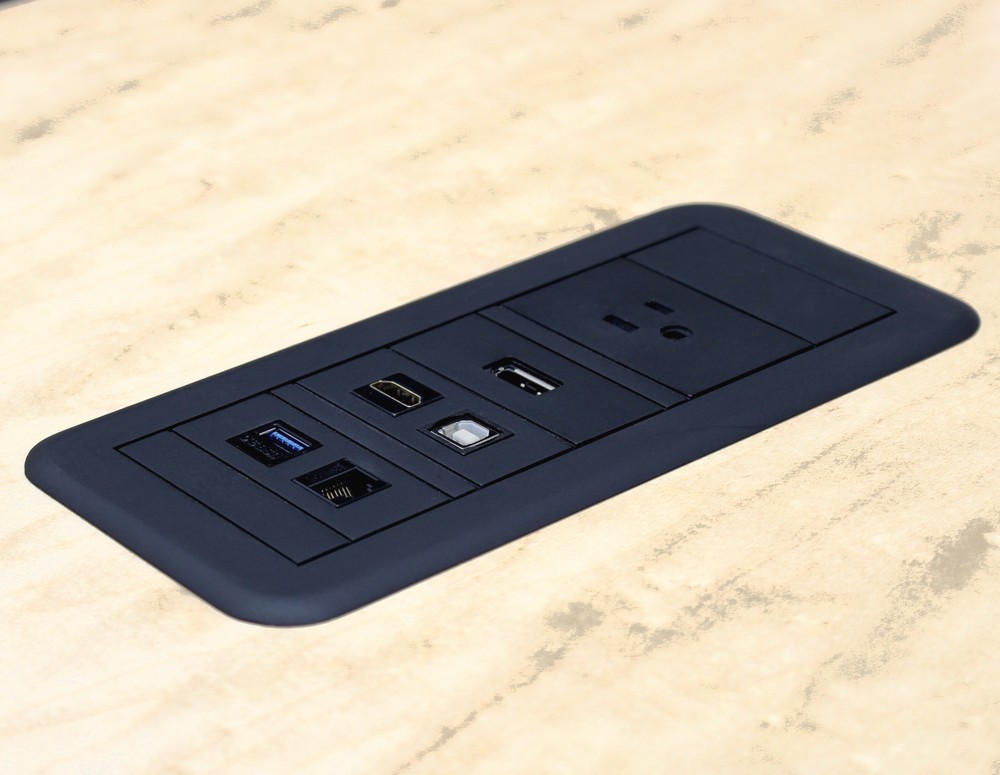

- Installs into tabletop
- Designed with dual locks that easily secures the unit to the surface without any tooling
- Convenient access to connect cables via snap-in modules
- Pre-configured unit available as TB100-301
- Also available in White and Silver
- Downloadable cutout template available

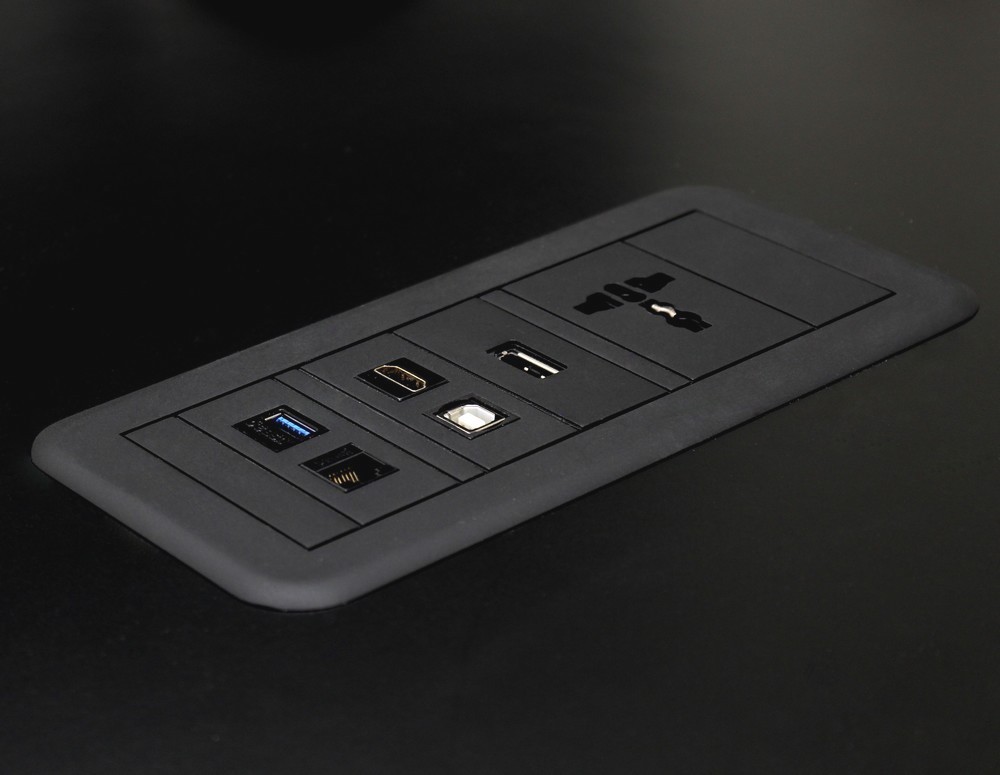

TB100-301C Overview

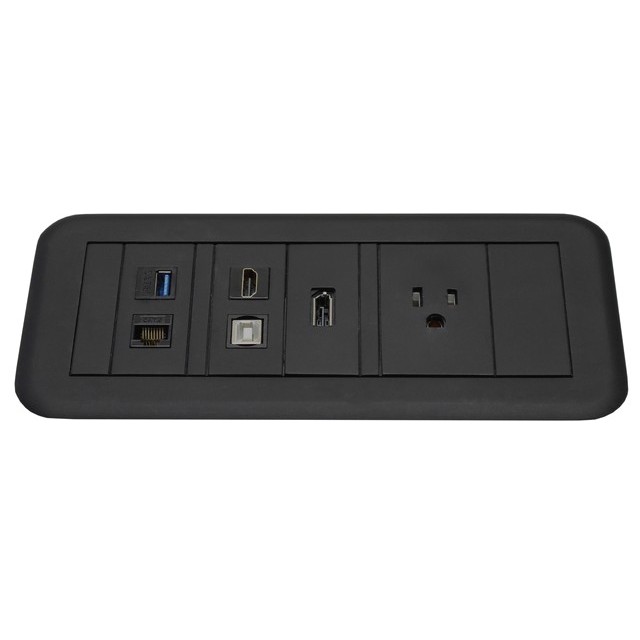

The TB100-301C is a customizable interconnect unit, designed for boardroom and conference rooms. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.
Summary
The TB100-301C is a customizable modular interconnect unit. Unlike the pre-configured TB100-301, users can install any Table Buddy snap-in modules and connectors that best suits their connectivity needs in the TB100-301C unit.
The snap-in module options for the TB100-301C allow diverse connector configurations. Available modules include combinations of audio, video, computer, and AC power connectors that provide extensive flexibility in a convenient package. The snap-in modules are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.
The TB100-301C is designed for use with tables ranging from 0.75 inch to 1.6 inch in thickness. It comes in a standard matte black frame, while other finishes are also available: Standard white matte color (TB100-101C) and silver matte (TB100-201C).
The TB100-301C can be customized in various ways as shown:
Technical Specifications
Table 1: TB100-X01* General
|
Features/Description |
TB100-X01* |
Pass -Through |
|
| Audio, Video | Snap in HDMI Type A F-F (1) |
| Network | Snap In RJ-45 F-F (2) |
| USB 3.0 Type A | Snap in USB F-F (2) |
| USB Type C | Snap in USB F-F (1) |
Pass-Through AC 1 ft. (0.3 m) |
|
| 12A ,125V | NEMA 5-15R (2) |
| Plug Type | NEMA 5-15P (2) |
| Blank Slots | TB130-X01(1/4”) (2) TB130-X02 (1/2”) (2) |
Accessories Included |
|
| Mounting Hardware | Mounting brackets (2 pcs), screws, split washers, and nuts (4pcs of each) |
Table 2: TB100-X01* Mechanical
|
Mechanical |
TB100-X01* |
| Minimum Table Thickness | 0.6 in (15 mm) |
| Maximum Table Thickness | 2.5 in (63 mm) |
| Length | 9.5 in (241 mm) |
| Width | 4.1 in (104 mm) |
| Depth below the table | 3.3 in (84 mm) |
| Color: TB100-101 TB100-301 | Matte White Matte Black |
| Material | Plastic |
| T° Operating | 10°C-35°C |
| T° Maximum | 50°C |
| Humidity | 90° non-condensing |
| MTBF (calculations) | 40,000 hrs. (min.) |
Table 3: TB100-X01* Electrical
|
Electrical |
TB100-X01 |
| Power Rating (Pass-through AC power) | 12 A ,125V (Each outlet module) |
Application Diagram
Dimensions
