TB100-301

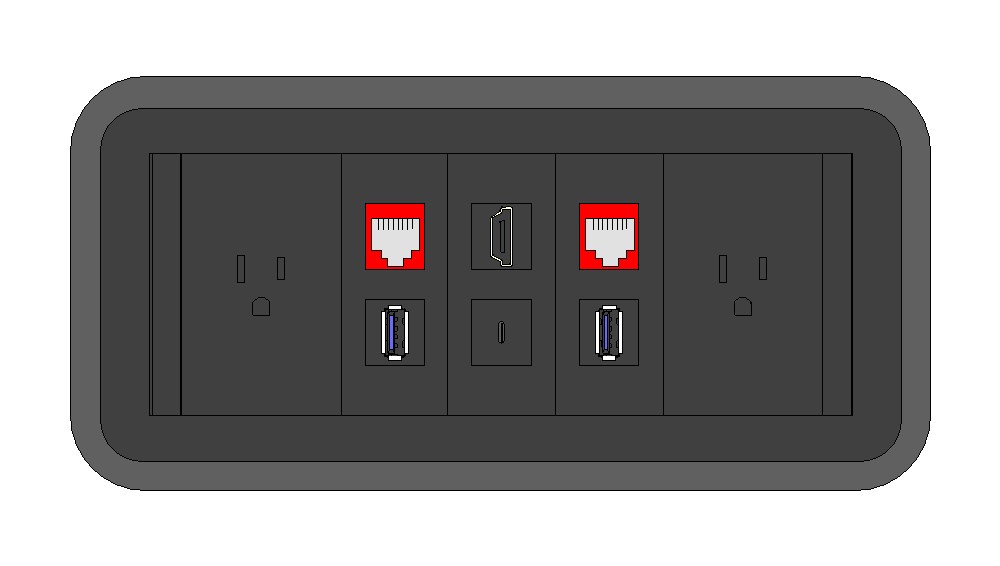

TABLE BUDDY MODULAR UNIT – BLACK

  • Simple, cost-effective interconnect solution
  • Installs into tabletop
  • Designed with dual locks that easily secures the unit to the surface without any tooling
  • Offer user-configurable input plates
  • Convenient access to connect cables
  • Also available in White and Silver
  • Downloadable cutout template available
SKU: TB100-301 Category:

  TB100-301 Overview

The TB100-301 is a simple yet effective interconnect unit, designed for boardroom and conference rooms. Cables to a presentation system are connected to the connectors on the sectional plates, enabling the user easy access for connections of AC power, video, audio, and the other media sources.

  Summary

The TB100-301 is designed for use with tables ranging from 0.75 inch to 1.6 inch in thickness. The TB100-301 comes in a standard matte black frame, while other finishes are also available: Standard white matte color (TB100-101) and silver matte (TB100-201).

The sectional plates for the TB100-301 allow diverse connector configurations. Available plates include combinations of audio, video, computer, and AC power connectors that provide extensive flexibility in a convenient package. The sectional plates are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.

The TB100-301 can be customized with sectional plates in various ways as shown in the images below.

  Technical Specifications

Table 1 TB100-301 General Specifications

FEATURES/DESCRIPTION - TABLE BUDDY

TB100-301

Pass-Through

Number of slotsDepends on customer configuration

Compatibility*

AC Power (United States)TB110-X01
AC Power (International)TB110-X02
Audio, VideoTB120-302, TB120-303
Blank Slot CoversTB130-301, TB130-302 and TB130-303
CustomizableTB120-X01, TB120-X04

Accessories Included

Mounting HardwareMounting locks (2)
#8-1-1/2” Screws (2)

Table 2 TB100-301 Mechanical Specifications

MECHANICAL

TB100-301

Max Table Thickness1.6 in (41 mm)
Length8.5 in (216 mm)
Width4.1 in (104 mm)
Height Below Table2.2 in (56 mm)
MaterialPlastic
TB100 Weight (approx.)0.23 lb. (0.1 kg)
T° Operating10°C-50°C
T° Maximum75°C
Humidity90% non-condensing
MTBF (calc.)38,000 hrs.

  Application Diagram

Diagram 1
Diagram 2

  Dimensions
