TNP120C

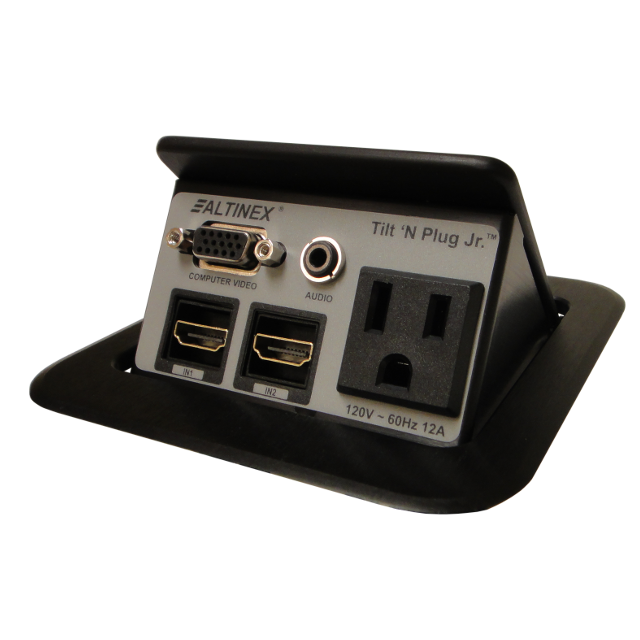

FACTORY CONFIGURED, CUSTOMIZED TILT ‘N PLUG JR.

  • Single user connection point
  • Gas-spring for smooth operation
  • Ultra-flat surface when closed
  • Customizable connectors and finish
  • One 12 Amp AC socket with 9-10′ Power Cable
  • UL listed
  • Custom Built
  • UL listed for installation in kitchens, bathrooms and countertops (US only)
  • 8-10 day lead time (5 pieces or less)
  • Call for lead time on larger orders
  • As seen in the Altinex Table Top Interconnect Guide
  • Downloadable cutout available
  • The price of the unit includes all connectors
  • Ten year warranty available
SKU: TNP120C Category:

  TNP120C Overview

The TNP120C provides a single input plate with VGA computer video (15-pin HD F-M), computer/MP3 audio (3.5 mm F-M), telephone (RJ-11 F-M), and network (RJ-45 F-M) input connections in 6 ft (2m) length. It also provides an AC Power connection in 9-10 ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.

  Summary

All Tilt’ N Plug Jr products belong to a family of compact interconnection solutions designed for installation into a table as part of a presentation system. They are designed for mounting into a table, podium, or other furniture to provide a way of connecting audiovisual equipment on top of the furniture to a presentation system below the furniture.

All use the same core element; a multimedia input plate that can be tilted open when needed and pushed closed when not needed.

All signals pass through the input plate directly to cables on the underside of the table with no intervening circuitry. The use of additional ALTINEX Signal Management Solutions such as computer video interfaces, distribution amplifiers, and switchers may be desirable.

The input plate of the Tilt’N Plug Jr. is accessible by pushing down on the top cover. The unit then auto-tilts open with help from an internal pneumatic spring. Once open, the input plate remains securely in place. The input plate is hidden by pressing down on the top cover until the latching mechanism engages. In its closed position, the top panel lies flush with the table’s top, held in place by the latching mechanism.

The TNP120C provides a single input plate with cutouts for one (1) D-sub, one (1) 3.5mm jack and two (2) snap-in connectors. It also provides an AC Power connection in 9-10 ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.

All Tilt’ N Plug Jr. Signal Management Solutions come with a standard top and bezel offering a high quality matte black finish. The unit can also be customized with different connections and colors. To do so, click the “Customize” button shown above.

ALTINEX products are protected by the following patents:

6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819

  Videos

 Technical Specifications

GENERAL

ELECTRICAL

Snap-in cutouts: 2 Power Rating (pass-through AC power): 110VAC, 60Hz, 12A per connector
3.5mm cutout: 1
D-sub cutout: 1
UL Listed: File E254082

MECHANICAL

ACCESSORIES

AC Power Cord: 10ft (3m) Included: Mounting screws and cable clamps
Max. Table Thickness: 2.25in (57mm) Replacement Gas Spring: AC401-302
Height, opened: 5.5in (140mm)
Width: 4.6in (117mm)
Depth: 4.9in (124mm)
Weight (approx.): 2.8lb (1.3kg)
Shipping Weight: 4.5lb (2.0kg)
Finish: Black or Clear Brushed Aluminum
T° Operating: 10°C-35°C
T° Maximum: 40°C
Humidity: 90% non-condensing

WARRANTY

CERTIFICATIONS

3 year warranty UL, CE, RoHS, FCC
1 year warranty on gas-spring

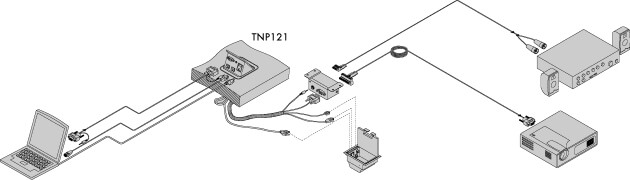

  Application Diagram

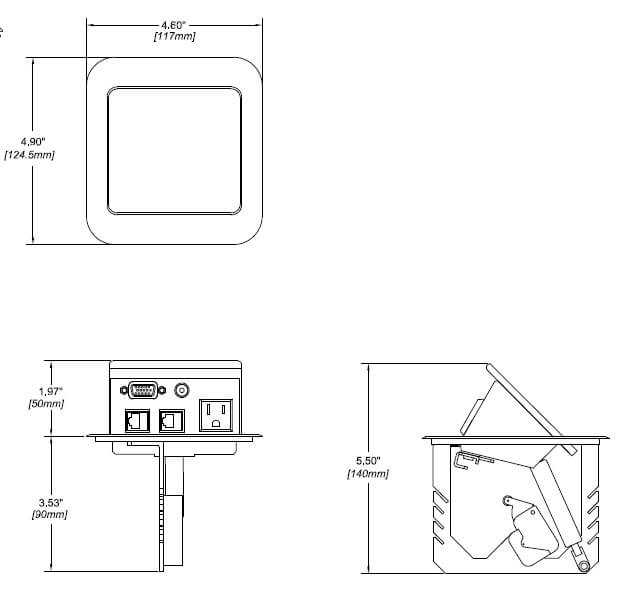

  Dimensions
