TNP125
TILT ‘N PLUG JR. DIGITAL TABLETOP INTERCONNECT BOX
- Single user connection point
- Gas-spring for smooth operation
- Ultra-flat surface when closed
- 6′ Snap-in Connector Cables, 9-10′ Power Cable
- Customizable as TNP120C
- 12 Amp AC socket
- Many custom snap-in assemblies
- UL listed
- DOES NOT include USB Power Supply (see PS5594UB)
- UL listed for installation in kitchens, bathrooms and countertops (US only)
- As seen in the Altinex Table Top Interconnect Guide
- Downloadable cutout template available
- Ten year warranty

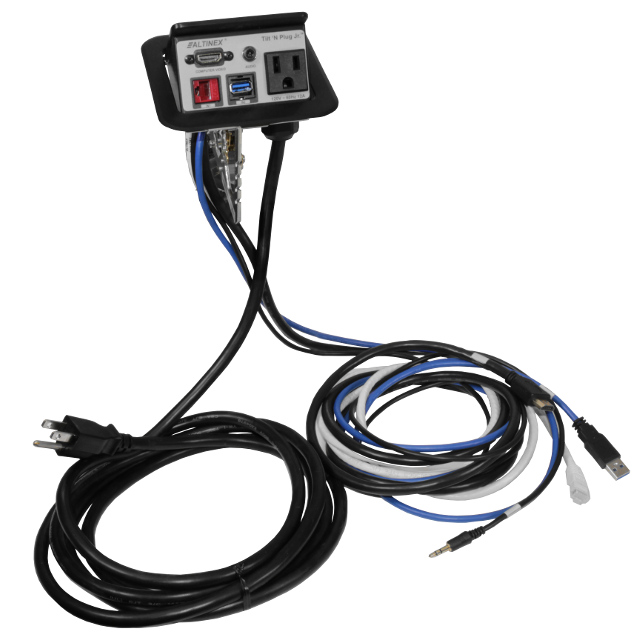

TNP125 Overview
The TNP125 is a Tilt ‘N Plug digital interconnect that provides a single input plate with 1 HDMI, 1 USB-C, 1 network (RJ-45 F-M), and 1 USB-A snap-in connectors with 6 ft. (2m) long cables. It also provides an AC Power connection in 9-10 ft. (2.7-3.0m) and is suitable for use throughout the U.S. and Canada.
Summary
All Tilt’ N Plug Jr products belong to a family of compact interconnection solutions designed for installation into a table as part of a presentation system. They are designed for mounting into a table, podium, or other furniture to provide a way of connecting audiovisual equipment on top of the furniture to a presentation system below the furniture.
All use the same core element; a multimedia input plate that can be “tilted” open when needed and pushed closed when not needed.
All signals pass through the input plate directly to cables on the underside of the table with no intervening circuitry. The use of additional ALTINEX Signal Management Solutions such as computer video interfaces, distribution amplifiers, and switchers may be desirable.
The input plate of the Tilt’N Plug Jr. is accessible by pushing down on the top cover. The unit then auto-tilts open with help from an internal pneumatic spring. Once open, the input plate remains securely in place. The input plate is hidden by pressing down on the top cover until the latching mechanism engages. In its closed position, the top panel lies flush with the table’s top, held in place by the latching mechanism.
The TNP125 provides a single input plate with HDMI, USB-C, network (RJ-45 F-M), and USB-A snap-in input connections in 6ft (2m) lengths. It also provides an AC Power connection in 9-10ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.
All Tilt’ N Plug Jr. Signal Management Solutions come with a standard top and bezel offering a high quality matte black finish. The unit can also be customized with different connections and colors. To do so, please refer to the TNP120C.
ALTINEX products are protected by the following patents:
6802577, D437827, D556139, D457137, D466868, D455716, D455123, D454541, D449819
Videos
Technical Specifications
Table 1. TNP General
|
Features/Description |
TNP |
|
TNP125* |
|
| Audio, Video, Communication | 6 ft. (2 m) |
| Computer Video | HDMI F-M (1) |
| Network | CAT-6 (RJ-45) F-M (1) |
| USB A | USB Type A F-M (1) |
| USB C | USB Type C F-M (1) |
|
Agency Approval |
|
| UL/C-UL Listed | File E254082 |
|
All TNP Models * |
|
|---|---|
| Pass-Through AC Power | 9-10 ft. (2.7-3.0 m) |
| 120 VAC, 60 Hz, 12 A | NEMA F-M |
|
Accessories Included | |
| Hardware | - Mounting screws, nuts, brackets - Cable clamps/screws |
| USB Wall Adapter (PS5595UB) | - TNP155 accessory only |
Table 2. Mechanical **
|
MECHANICAL |
All TNP Models ** |
| Max. Table Thickness | 2.25 in (57 mm) |
| Height, opened | 5.5 in (140 mm) |
| Width | 4.6 in (117 mm) |
| Depth | 4.9 in (124 mm) |
| Weight (approx.) | 2.8 lb. (1.3 kg) |
| Shipping Weight | 4.5 lb. (2.0 kg) |
| Finish Standard: Models ending in S: |
Matte Black Brushed Aluminum |
| T° Operating (T° Max) | 10°C-35°C (40°C) |
| Humidity | 90% non-condensing |
Table 3. Electrical **
|
MECHANICAL |
All TNP Models ** |
| Electrical (Single or dual outlet panel) |
All TNP Models ** |
| Power Rating (pass-through AC power) |
120VAC, 60Hz, 12A Total Current |

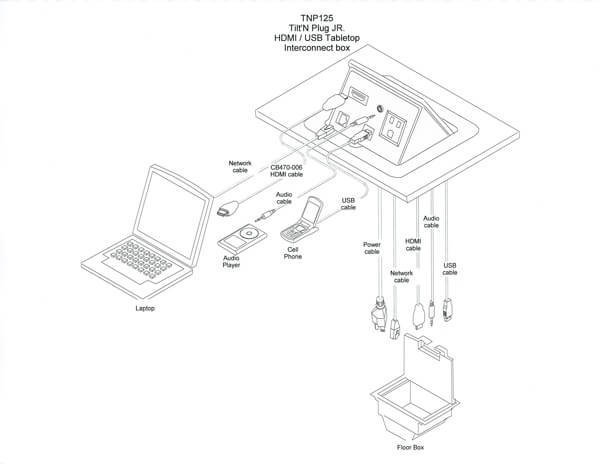

Application Diagram
Dimensions
