2 POWER RECEPTACLE 110V 4 BLANK SNAP-IN CONNECTORS FOR PNP415/417C

  • Two AC power receptacles
  • Four (4) blank ports for snap-in connectors
  • One (1) blank port for a D-Sub connector
SKU: DS901-121 Category:

  DS901-121 Overview

The DS901-121 is a configurable sectional plate for use with the PNP415 / 417C Pop ‘N Plug Interconnect Box.

  Summary

The DS901-121 is a configurable sectional plate for the PNP415 / 417C that offers female receptacles in the pop-up panel and six foot long cables running from the panel down to their equivalent male plugs at the opposite end.

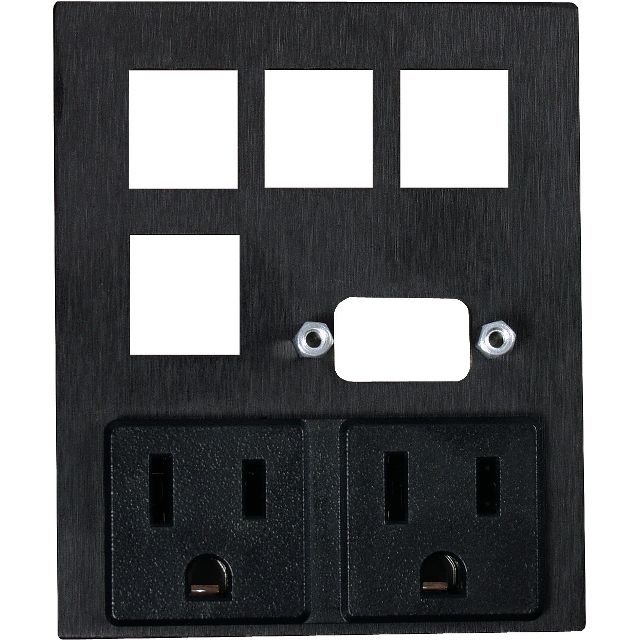

The DS901-121 is preconfigured with 2 AC power receptacles and five blank positions that may be custom configured. Four of the custom positions may be configured with any combination of available audio, video and/or control connector/cable assemblies. These include RJ-45 connectors, RJ-11 connectors, 3.5mm audio connectors, or any other connectors that fit the size of the opening and are available from ALTINEX. The remaining blank position may be fitted with a 9-pin connector or a 15-pin HD connector.

  Technical Specifications

Table 1: DS901-120/121 General

Features/Description

DS901-120/121

DS901-120Pass-Through Connections
Video (1)15-pin HD female to male
Power (2)NEMA 5-15R to NEMA 5-15P
Network (2)RJ-45 female to RJ-45 male
Modem (1)RJ-11 female to RJ-11 male
Stereo Audio (1)3.5mm female to 3.5mm male
DS901-121Pass-Through Connections
Power (2)NEMA 5-15R to NEMA 5-15P

Table 2: DS901-120/121 Mechanical

Mechanical

DS901-120/121

Height3.435 in. (87.3 mm)
Width2.862 in. (72.7 mm)
FinishBlack Anodize
T° Operating10°C-35°C
T° Maximum40°C
Humidity90% non-condensing

Table 3: DS901-120/121​ Electrical

Electrical

DS901-120/121

Power Rating
(pass through AC power)
120VAC, 60Hz, 5A
