TB100-201

PRE-CONFIGURED MODULAR UNIT – SILVER

  • Pre-configured with Table Buddy snap-in modules and connectors
  • Simple, cost-effective interconnect solution
  • Installs into tabletop
  • Designed with dual locks that easily secures the unit to the surface without any tooling
  • Offers user-configurable input plates
  • Convenient access to connect cables via snap-in modules
  • Also available in Black and White
  • Downloadable cutout template available



https://youtu.be/MV41Fruiduk

SKU: TB100-201 Category:

  TB100-201 Overview

The TB100-201 is a pre-configured interconnect unit, designed for boardroom and conference rooms. Cables for a presentation system are connected to the connectors on the snap-in modules, enabling the user easy access for connections of AC power, video, audio, and the other media sources from the top of the table.

  Summary

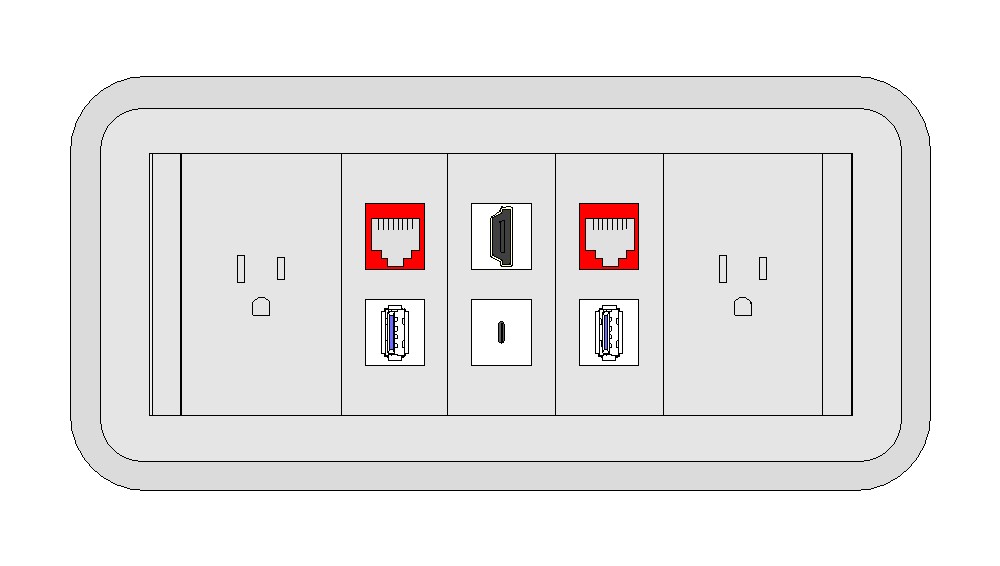

The TB100-201 unit is pre-configured with 2 U.S. power (TB110-201), 2 1/4-inch wide blank plates (TB130-201), and 3 double snap-in connector plates (TB120-201) which are pre-populated with the following snap-in connectors: 2 RJ-45 (SN1318-RJ45-R), 2 USB-A 3.0 (SN1321-USBA-W), 1 HDMI, and 1 USB-C (SN1321-USBC-W). The snap-in modules are pre-installed in the TB100-002 modular unit frame and is flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.

The TB100-201 comes in a silver matte frame, while other finishes are also available: Standard white matte color (TB100-101) and standard matte black (TB100-301). It is designed for use with tables ranging from 0.75 inch to 1.6 inch in thickness.

For the customizable version of this unit, see TB100-201C

  Technical Specifications

Table 1: TB100-X01* General

Features/Description

TB100-X01*

Pass -Through

Audio, VideoSnap in HDMI Type A F-F (1)
NetworkSnap In RJ-45 F-F (2)
USB 3.0 Type ASnap in USB F-F (2)
USB Type CSnap in USB F-F (1)

Pass-Through AC 1 ft. (0.3 m)

12A ,125VNEMA 5-15R (2)
Plug TypeNEMA 5-15P (2)
Blank SlotsTB130-X01(1/4”) (2)
TB130-X02 (1/2”) (2)

Accessories Included

Mounting HardwareMounting brackets (2 pcs),
screws, split washers, and nuts
(4pcs of each)

Table 2: TB100-X01* Mechanical

Mechanical

TB100-X01*

Minimum Table Thickness0.6 in (15 mm)
Maximum Table Thickness2.5 in (63 mm)
Length9.5 in (241 mm)
Width4.1 in (104 mm)
Depth below the table3.3 in (84 mm)
Color: TB100-101
TB100-301
Matte White
Matte Black
MaterialPlastic
T° Operating10°C-35°C
T° Maximum50°C
Humidity90° non-condensing
MTBF (calculations)40,000 hrs. (min.)

Table 3: TB100-X01* Electrical

Electrical

TB100-X01

Power Rating
(Pass-through AC power)
12 A ,125V
(Each outlet module)

  Application Diagram

  Dimensions
