Stackable Table Top
Altinex is the first in the world to introduce Stackable Table Top interconnect boxes to the Audio/Visual marketplace.
Two, three, or four Tilt ‘N Plug Jrs. and/or Cable Nooks Jrs. with the stackable bezel can now be stacked together into a single frame in any configuration. If you have been buying from Altinex, you know that we can customize any unit to fit your installation needs. We have now added one more feature to help you to configure a customized solution at standard price.
Select any units from the TNP Jr. or CNK Jr. family and decide how you want to mount them on a table. Stack two units together by using a dual frame, make them opposites, or stack three or four of them next to each other. The only limit is your imagination.

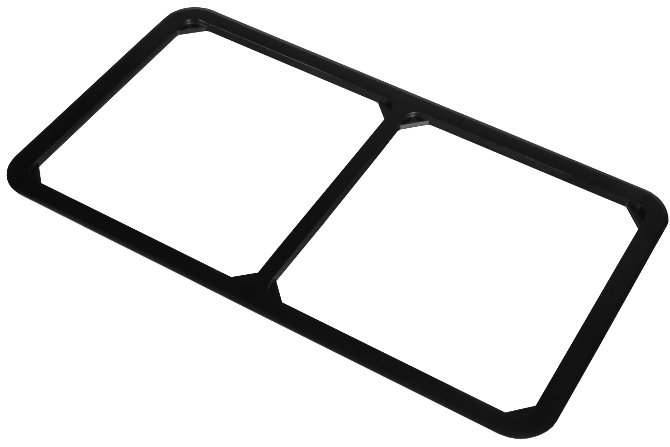

Figure 1: CM12462 – Two Slot Stackable Frame for Tilt ‘NPlug Jrs. and/or Cable Nooks Jrs.

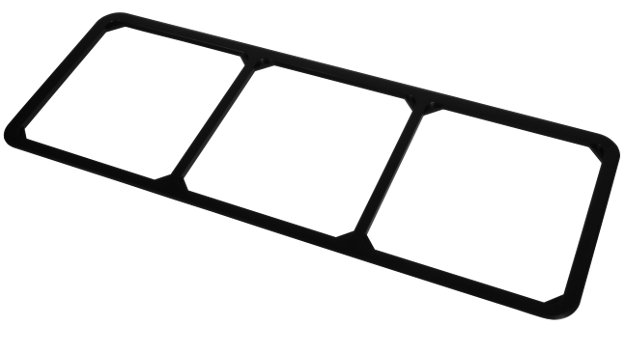

Figure 2: CM12463 – 3 Slot Stackable Frame Tilt ‘NPlug Jrs. and/or Cable Nooks Jrs.

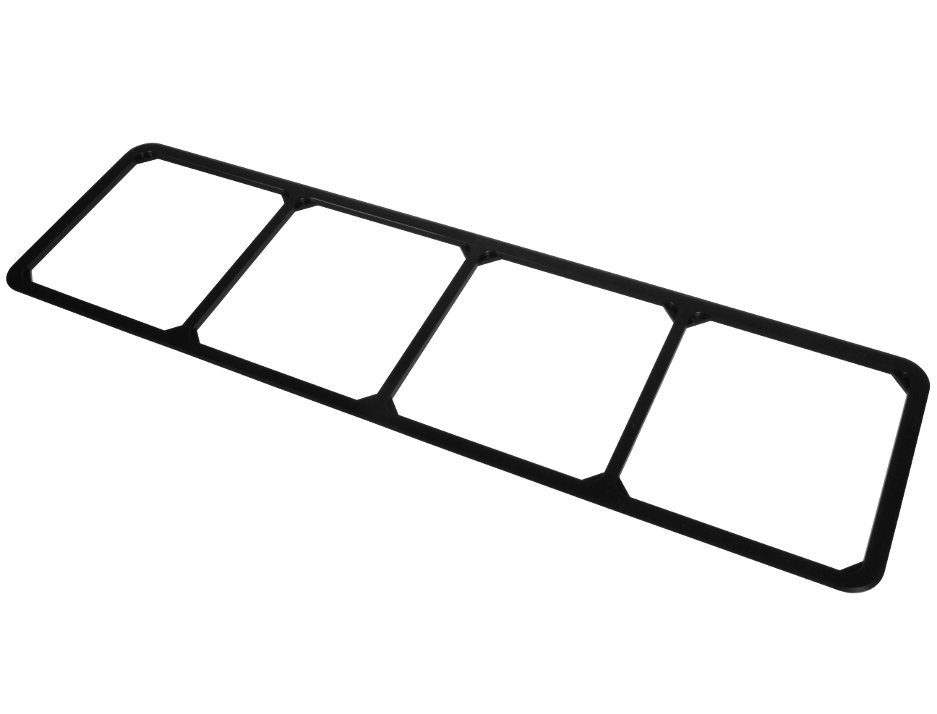

Figure 3: CM12464 – 4 Slot Stackable Frame Tilt ‘NPlug Jrs. and/or Cable Nooks Jrs.
You can now select any of the TNP Jr. or CNK Jr. units and specify the new stackable bezel to create a stackable Table Top interconnect solution. Select from dual power with USB charging, HDMI or VGA ports, or USB and network. Anything you need can be installed into stackable frames.

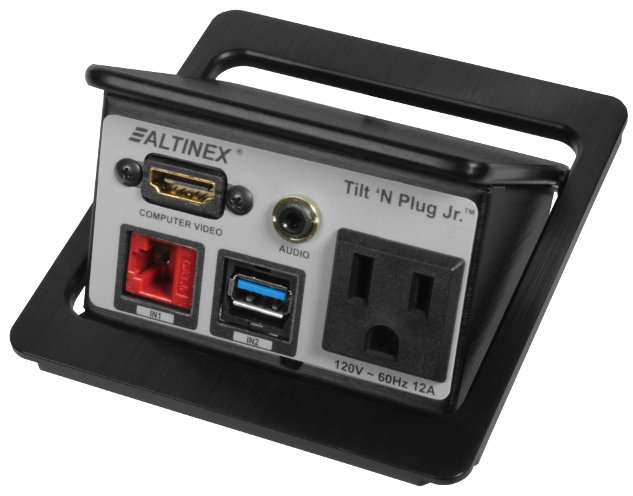

Figure 4: TNP128 Tilt ‘N Plug Jr. with stackable bezel

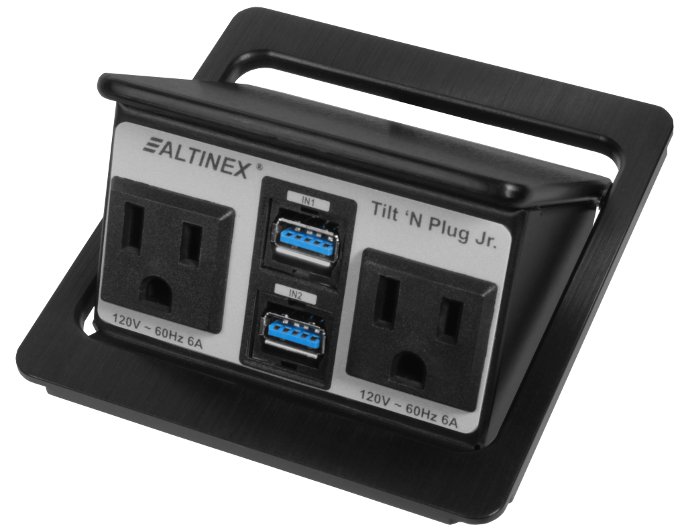

Figure 5: TNP155 Tilt ‘N Plug Jr. with stackable bezel

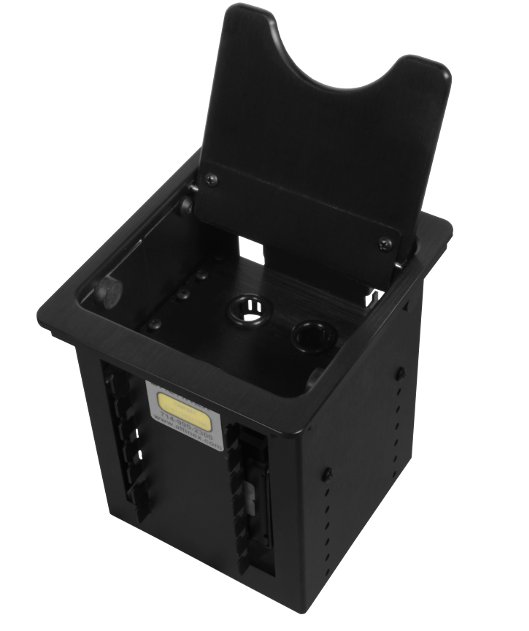

Figure 6: CNK261 Cable Nook with stackable bezel

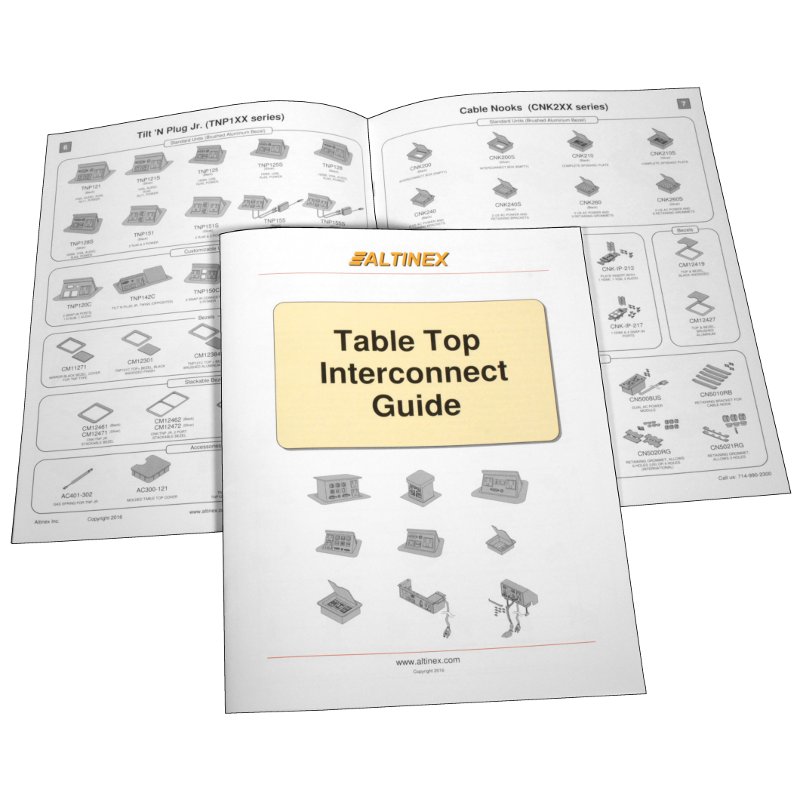

We have made it easy for you to design your Table Top box configuration by creating a Table Top Interconnect Guide PDF file (click image below). Just download and print it to have an easy-to-use reference and design sheet. Pages 6 and 8 of the design guide provide additional information and part numbers for the stackable bezels. You can also call us and request printed copies of the design guide.
Below are some examples of how you can use stackable frames and Tilt ‘N Plug/Cable Nooks with stackable bezels to create a perfect design for your next Audio/Visual project.
Figure 7: 2 Slot frame with CNK261 and TNP155 installed

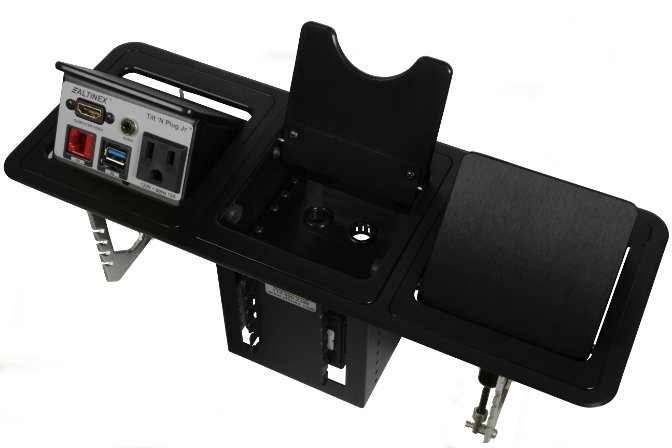

Figure 8: 3 slot frame with CNK261, TNP128, and reverse-facing TNP155 installed
Figure 9: 4 slot frame with forward and reverse facing CNK261s and TNP128s
All Altinex Table Top units are designed, manufactured, assembled, and UL tested in our Brea, CA ISO9001:2008 registered manufacturing facility and meet the stringent requirements of UL safety listing.
When you buy from Altinex, you can be assured of the superb quality and reliability of every unit we build. We are so sure of our quality that each unit comes with a 10-year warranty. Our support capability is so good that we still support Table Top products built over 12 years ago and many customers just want to upgrade these units to a new interconnect standards.
Trust us with all of your Table Top interconnect needs and call us today with your next design project. Whether it is a standard model or a completely custom design, we can be your supply partner. With the capacity to produce over 4000 units per month, we can easily meet any project size demands.
